Total Specifications
Item: Handlebar Extension Wire, Extended Length Throttle and Idle Cable, Non-ABS Hydraulic Front Brake Line and Clutch Cable Kit
Used On: 16"-18" Handlebar（Non-ABS）
Color: Black
Outer Transparent Tube Material: PVC
Outer Tube Material: Polished Stainless Steel Preparation
Brake line Inner Tube Material: Teflon (PTFE, Temperature resistance from -70°C to 260°C)
Throttle and Idle Cable with Clutch Cable Inner Tube Material: Steel inner conduit, Inner PE liner
Required Assembly：NO
●Throttle and Idle Cable Specifications
Throttle Cable Overall Length：46"(1168mm)
Idle Cable Overall Length：46.5"(1181mm)
Travel: 5"(127mm)
Replace for Part Number：56579-02A
●Non-ABS Hydraulic Front Brake Line Specifications
Overall Length：48"(1219mm)
Replace for Part Number: # 46400-04, 45449-04C, 46400-04, 41800172
●Clutch Cable Specifications
Overall Length：62 3/4"(1594mm)
Travel Length ：2.75"（69.85 mm）
Replace for Part Number : # 3861986A, 3866300, 38699-04
●Handlebar Extension Wire Specifications
Overall Length：13"（330mm）
Features
【Compatibility】
Our Extended Length Throttle and Idle Cable, Non-ABS Hydraulic Front Brake Line and Clutch Cable Kit is compatible with Harley Sportster w/Non-ABS 16"-18" Handlebars 2014-2022. Please check the detailed fitment list before purchasing.
【Convenience】
This Cable Kit that fits Sportster is designed to save you time and hassle when installing handlebar cables and lines, including the Handlebar Extension Wire, Throttle and Idle Cable, Hydraulic Brake Line and Clutch Cable as well as the necessary hardware.
【Premium Quality】
The Extended Handlebar Cable Kit, featuring inner PTFE tubing braided with stainless steel reinforcement and embedded in a tough PVC outer protector, offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for extended use.
【Better Work】
The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers; Easier and more responsive clutch squeezing.
【Easy To Use】
Direct replacement for the stock short/old line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.

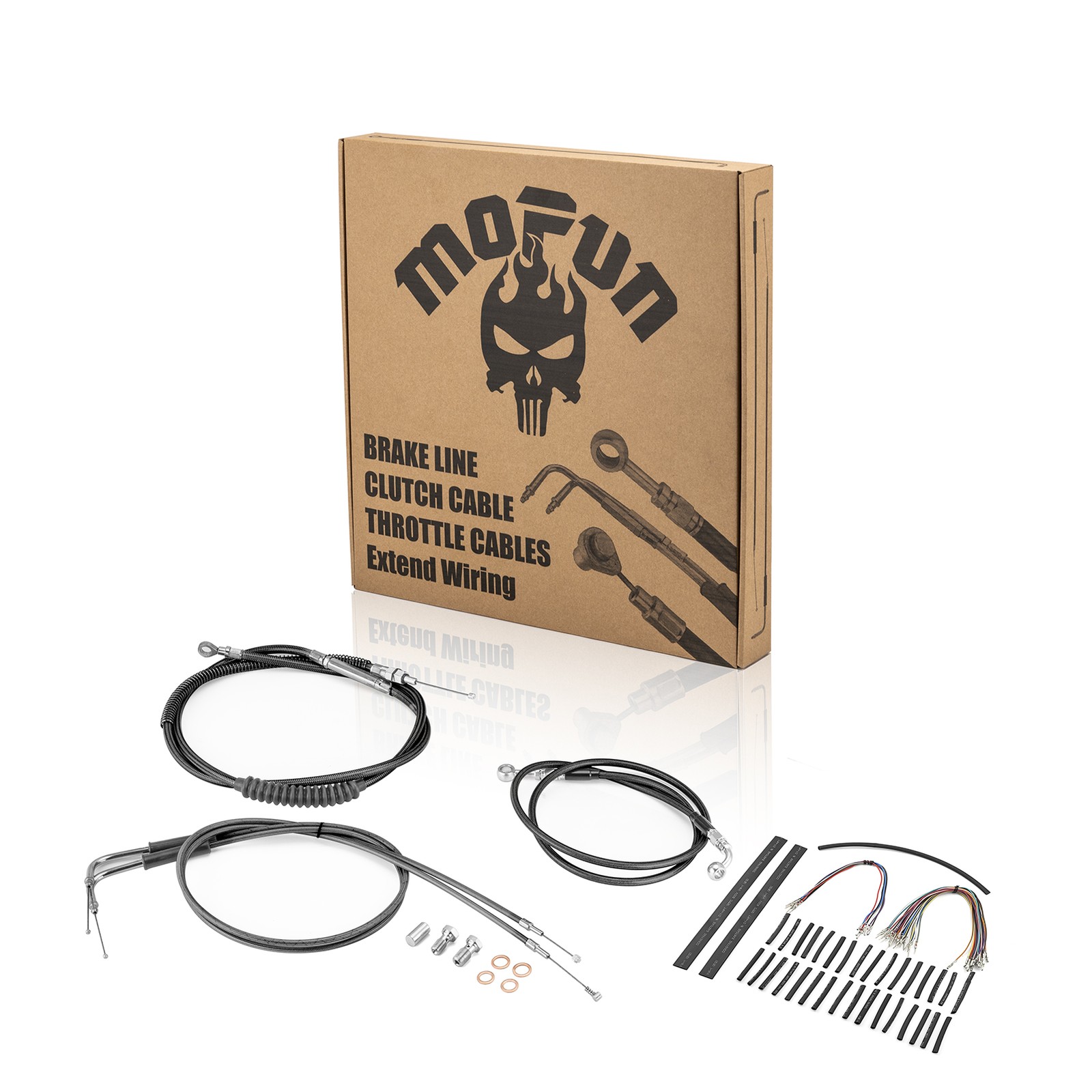

【Package Includes】
1 x Throttle and Idle Cable
1 x Clutch Cable
1 x Non-ABS Hydraulic Front Brake Line
1 x Handlebar Extension Wire
Includes necessary mounting hardware.
If you have any questions, please do not hesitate to reach out to us by email, and we will provide you with a satisfactory solution.
