Description:
This shop has most of the accessories you need daily life.
You can self-service enquiry or ask us about the accessories you want.
Brand New High Quality Engine, 4 Stroke, Automatic Transmission w/Reverse, electric start
Fitment:
Fits most China made 125cc ATVs and Go Karts.
Coolster, Taotao, Roketa, Kazuma,Terminator, Lynx, Redcat, Tank and Method CDI
Engine Type Single Cylinder, 4-Stroke, 2-Valve
Lubrication Pressure/splash
Cooling System Air Cooled
Fuel Supply Carburetor Atomization
Horsepower 7.64HP/7000-8000Rpm (5.7KW/7000-8000Rpm)
Starter Electric Starter
Max. Torque 8.0N.m/5000-6000rpm
Transmission: Semi Automatic (3 forward,1 Stable Idle Speed 1350-1650r/min
Clutch Automatic Multi-plate Wet Clutch
Min. Fuel Consumption 9.65oz/HP.h (367g/Kw.h)
Cylinder Diameter 2.13" (54mm)
Carburetor Model PZ22
Piston Stroke 1.95" (49.5mm)
Carburetor Type Plunger type carburetor
Bore & Stroke 2.13" x 1.95" (54mm x 49.5mm)
Spark Plug Model A7TC
Cylinder Working Volume 0.03 Gallon (120ml)
Fuel No. >= 87#
Compression Ratio 9.0:1
Lubrication Model SF15W/40-SE
Ignition Type CFW
Lubrication Capacity 0.20 Gallon (900ml)
Note:
yellow lines: lighting
red/black line: firing
blue/white line: trigger
green line: List:

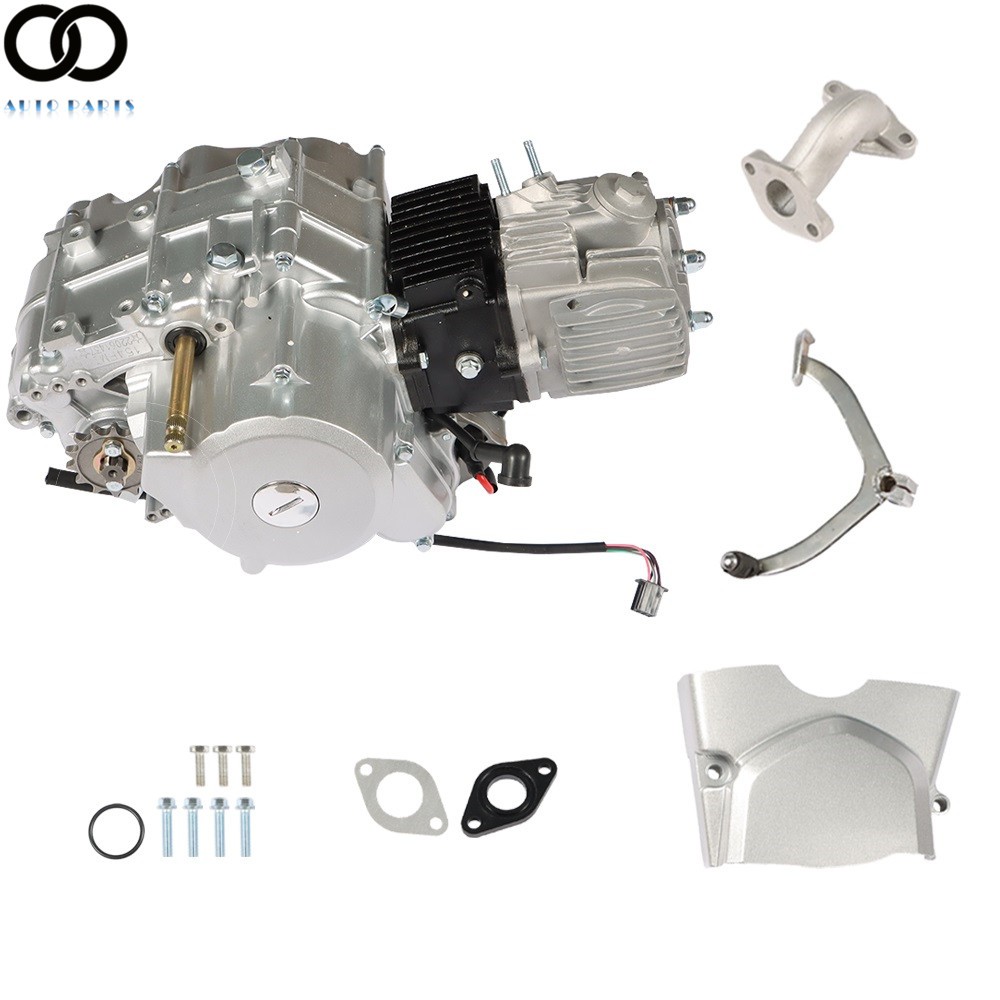

Engine Assembly with Starter Motor and Stator as pictured
INTAKE Manifold PIPE
SPARK PLUG.
DOES NOT come with Carburetor, Battery, CDI, Voltage Regulator and Ignition Coil.
