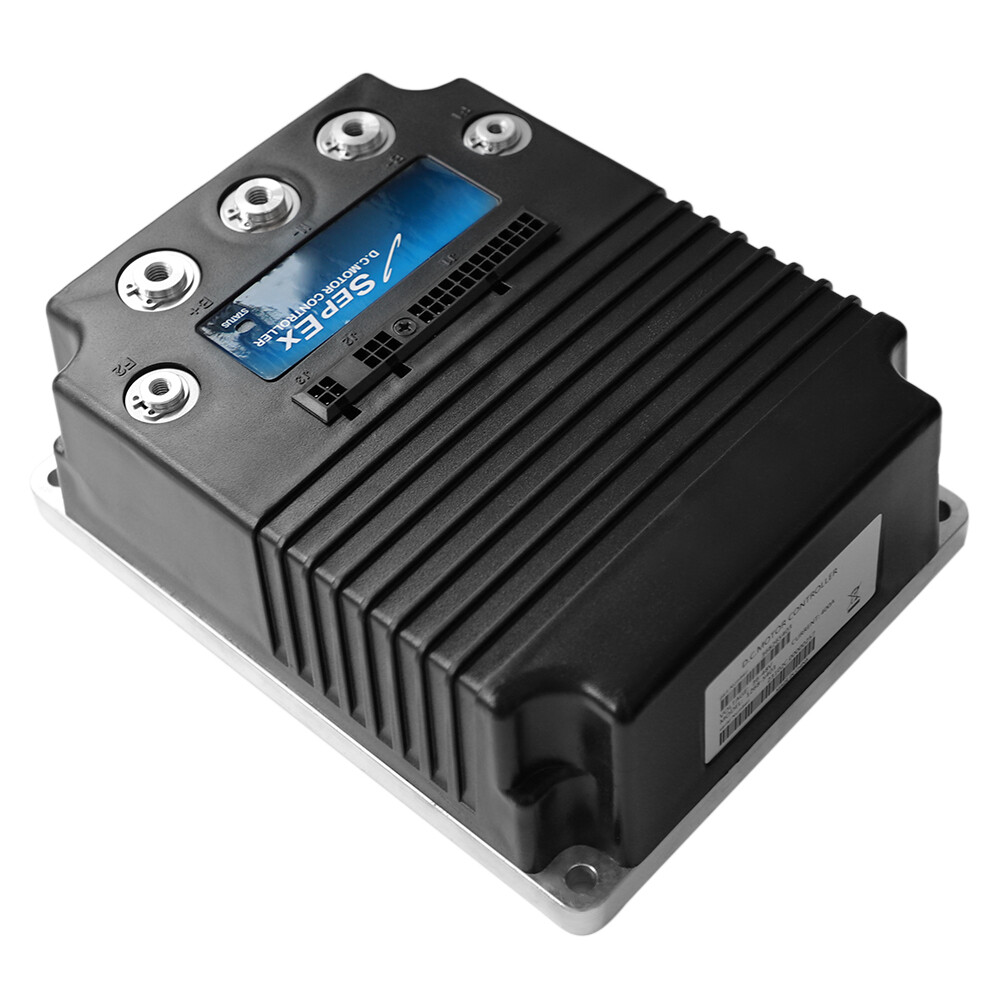

1268-5403 48V 400A SepEx Controller for Curtis STAR EV Classic Sirius Capella US For Sale - New and Used

Store CategoriesStore Categories

• DC Motor Controller
• AC Motor Controller
• Scissor Lift control box
• charger
• Specifications:

  Color: Black

  Size:11.42 x 8.78 x 5.12 inches

  Voltage: 48V

  Current: 400A

  Weight: 3.9kg

  IP Grade: IP 67

  CompatibleMake: Zone, Star EV

  Compatible Model: Zone, Classic, Sirius, Capella, Sirius Lifted, Capella Lifted

  Compatible Year: 2000-UP

  Part Type: Controller

  Throttle Type:0-5kΩ

  OEM Part Number:2CN090




  Package Included: 1 x Controller


  PWM operating frequency: 16 kHz
  Electrical isolation to heatsink (min.): 500 VAC
  KSI input voltage (minimum): 16.8 V
  KSI input current (typical): 160 mA without programmer; 200 mA with programmer
  Ambient operating temperature range: -40°C to 50°C
  Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
  Heatsink undertemperature cutback: 50% armature current at -25°C



  Key Features:
  CURTIS Model: 1268-5403
  Norminal Battery Voltage (Volts): 48V (default setting) or 36V
  Amature 2 minute current rating (amps): 400
  Field 2 minute current rating (amps): 50
  Logic enable and logic power input voltage (minimum):16.8 V
  Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
  Logic input voltage: 20.0 V High; 7.5 V Low
  Logic input current 10 mA
  Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
  Net Weight: 3.9 kg
  Package environmental rating: IP64, IP67



  Features Include:
  Adjustable brake rates, for smooth pedal-release braking
  Two user-selectable vehicle operating personalities, with vehicle top speed controlled and limited in each mode
  Motor parameters are programmable to match the characteristics of the specific motor being used
  Vehicle speed control is enhanced through response from a Hall effect speed sensor
  Anti-stall function helps prevent motor commutator damage
  High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
  Complete diagnostics through CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station and through the built-in Status LED, for quick and easy testing, diagnostics, and parameter adjustment
  Auxiliary driver can be programmed for either an electromagnetic (EM) brake or a WalkAway™ relay
  Coil driver provides adjustable pull-in and holding voltages to WalkAway™ relay or EM brake
  Two fault outputs provide diagnostics to remotely mounted displays
  Reverse signal driver provides a low signal any time the vehicle is traveling in reverse
  Driver outputs are short circuit protected and provide built-in coil spike protection
  Warning buzzer sounds steady in reverse, intermittent during WalkAway™ braking
  Splash resistant plastic cover
  Meets or exceeds EEC fault detect requirements

  1268-5403 controllers are widely applied in different electric vehicles, such as golf carts and utility vehicles. For current golf cart user, please take a reference with the parameters' list of different vehicle models; for comparing the difference of parameters modified, please see the parameter list of default setting of controller 1268-5403.



  Fitment :For Golf Cart, Electric forklift





  Package Included:1pcs


  Notes:

  -Please make sure the OE number matches the part you are replacing.

  -Please be very careful to check our photos, make sure the photo showed is same as you wanted.
