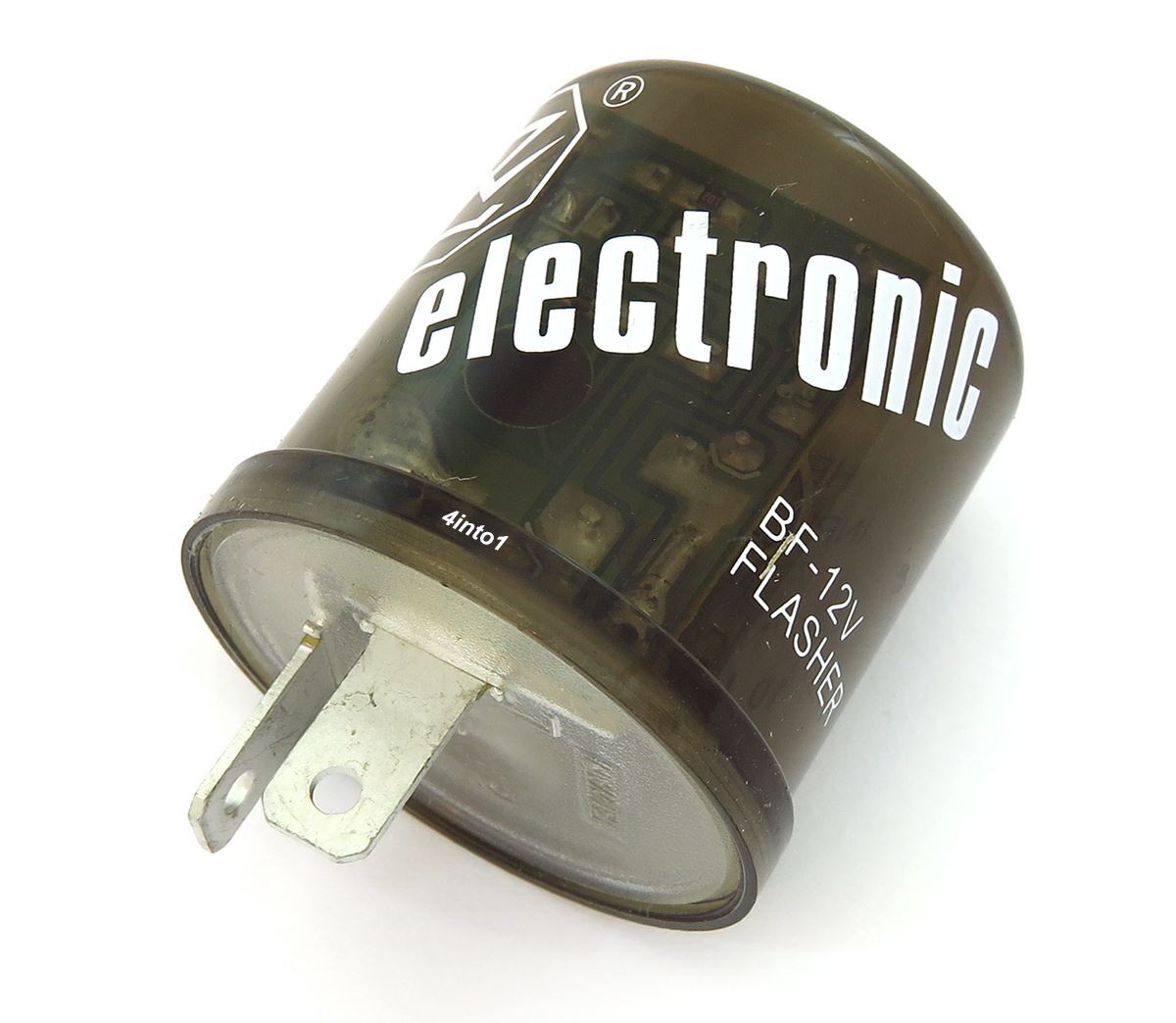

12V Electronic Turn Signal Flasher Relay - LED - 2 Prong - Round Style
Electronic 12V 21-23W 2-Pin turn signal flasher relay unit for many different Japanese motorcycles. This unit can replace the stock relay on many of the Honda models from the late 60\'s through the late 70\'s, use this relay if you are running LED turn signals. It will also work with stock filament type turn signals. This flasher does not come with the rubber mount that the stock style relays came with. You might be able to use your stock rubber if it\'s the right size.
Works GREAT with applications that have Dual Filament Turn Signals.
Lasts up to 10 times longer than thermal flashers.
Variable load-flashes 1 to 10 signaling lamps and 2 indicator lamps.
Flash rate will not slow down when towing a trailer.
Unique audible click.
Specifications:
Dimensions: 36mm x 33mm (1.4\" x 1.3\") (not including 2 prongs)
Max. Min. Voltage: 12.8V/10V
Max Operating Amperage: 25A
Frequency: 60-120HZ
10 Lamps Power
X = Battery (Power Input), L = Load (Lamp Output)
The heavy duty input lead must be fused.
Replaces Honda OEM#: 38300-292-670, 38301-KJ6-742, 38301-KJ6-743
