Cool/Heat DC 12V Underdash Electric Air Conditioner Universal Auto Car A/C Kit.Autopartszone IntroductionWe are committed to presenting high-quality products to buyers and selling them at the most favorable price. Excellent after-sales service will escort your purchase.Item Description⭐12V Universal Electric Cool&Heat Underdash Air Conditioner DC Auto Car A/C Kit⭐
Heating & Cooling Auto Air Conditioning Kit: The Under dash AC kit combines traditional receiver dryer, condenser fan and condenser all in one, also come with evaporator and compressor, which design for the Hot Day and Cold Day, provide a comfortable driving environment for you
Efficient & Energy-Saving A/C units: This under dash air conditioner heating & cooling units are equipped with a professional grade electric scroll compressor, stronger 10000 BTU cooling capacity, faster cooling speed. Intelligently adjusting frequency minimizes energy consumption, whether powered by the car battery or an external source, it ensures continuous operation, even when the engine is off, ensuring a cost-effective cooling solution for your vehicle
Low-noise Design: Equipped with household-type ultra-quiet evaporator, smart temperature control, which operates below 50dB, provides a quieter and more comfortable environment for the driver
Widely Application: This universal automotive ac system fits seamlessly into most car such as Van, Trucks, Pickups, RVs, Taxi, Excavators, Agricultural Vehicles, Engineering vehicles, Ships, and bus, etc, providing versatile cooling & heating solutions for every vehicle owner
Specifications: Rated Voltage: 12V; Rated Current: 33-66A; Power: 792W; Refrigeration: R134a ; Displacement: 12ml/re, Refrigerator Oil: POE68; Cooling Capacity: 1000-2000W; Compressor Type: Scroll Compressor; Function: Cooling & Heating; Application: Universal; Muti-protection: Short circuit protection, Anti-leakage protection, , Overvoltage protection, Low voltage protection
Simplified Installation: Our 3-in-1 design condenser simplifies the installation process. By combining traditional air conditioning components into one unit, connection and installation becomes effortless, saving you time and installation time. But Manual is not included, so professional installation would be really recommended. Pls note that: 1. The cooling effect of the air conditioner is reduced when the outside ambient temperature exceeds 50 degrees. 2. This air conditioning system is a water-heated type, which heats the water tank by heating the engine coolant, the blower blows warm air out of the vehicle to achieve heating
Package Content: Condenser*1, Cooling Fan*1, Evaporator Assembly*1, Compressor assembly*1, Refrigerant Pipeline*3, Main power cord*1, Cooling Fan Power Cord*1, Evaporator Power Cord*1, Coupler*6, Condenser Assembly Bracket*4, Compressor Bracket*5, Evaporator Bracket*3, Mounting Harness,etc. If you buy a wrong type for your vehicle, please not damage the label and barcode, return it in the original package. If you have installed, please clean it and put into the resellable original package. Any other problem, just let us know
【Attention】 1. When the external ambient temperature exceeds 60 degrees, the cooling effect of the air conditioner will weaken. 2. This air conditioning system is Water Heating, which warms the water tank by heating the engine coolant. The blower blows the warm air out of the car to achieve heating.
WHAT IS PARKING AIR CONDITIONER ?
The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.
Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver. Fuel,Energy And Money Saving.
Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.
Feature
Space Saving
Combine traditional receiver dryers and condenser fan and condenser all 3 in 1 design. Easy to install.
Energy Saving
Usually, the driver runs the engine for several hours to use the air conditioner when parking or taking a rest at night, which is harmful to the environment and wastes a lot of fuel, and wears out the engine faster. The parking air conditioner is powered by truck batteries, without an engine (thus protecting the engine from wear), which saves energy and fuel.
Fast Cooling
High wind speed makes it possible to quickly cool the car from a high temperature to a comfortable temperature.
Low Noise
The running sound is low, providing a quiet and comfortable environment for the driver.
Safety
It is driven by safe DC power supply, with multiple protections: Overvoltage protection, undervoltage protection, overload protection, overheating protection, safe and without danger.
MULTI INSTALLATION WAYS
The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes:
1) ro oftop mounted air c onditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (re creational vehicl e)
2) bac k - wall mounted air c ondition er for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.
The truck air con diti oner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
Heating principle ：Using the engine coolant to heat the air vent core
SpecificationsRated Voltage (V): 12V/24V DC
Current (A): 33A-66A
Rated Power (W): 792W
Rated Cooling Capacity (W): Oil：POE68
Charging Quantity of Refrigerant ( g)：600g
Power Cord Specification (mm2)：3 meters (8mm²)
Type of heating and cooling: Cooling only / Cooling & heating
optional
Application: Air-conditionRefrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/reRefrigerator oil: EMKARATE RL68H/100ml
Electric compressor data:
Voltage: DC 12V
Current: 63A
Rated speed: 2100rpm
Speed range: 1500rpm - 2100rpm
cooling capacity:1000-2000W
Rated power: 650w
Condensing temperature range: 26.7℃ - 68℃
Evaporating temperature range: -10℃ - 12.5℃
Oil: RL68H/130ml
Scroll compressor Specification:
Electronic fan connection harness: 2 meters
Internal machine connection harness: 3 meters
Main power harness: 3 meters
Fluorine-resistant hose:
3 points (thin tube) = 3 meters
4 points (thin tube) = 2 meters
5 points (thin tube) = 3 meters
FitmentFor Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc.

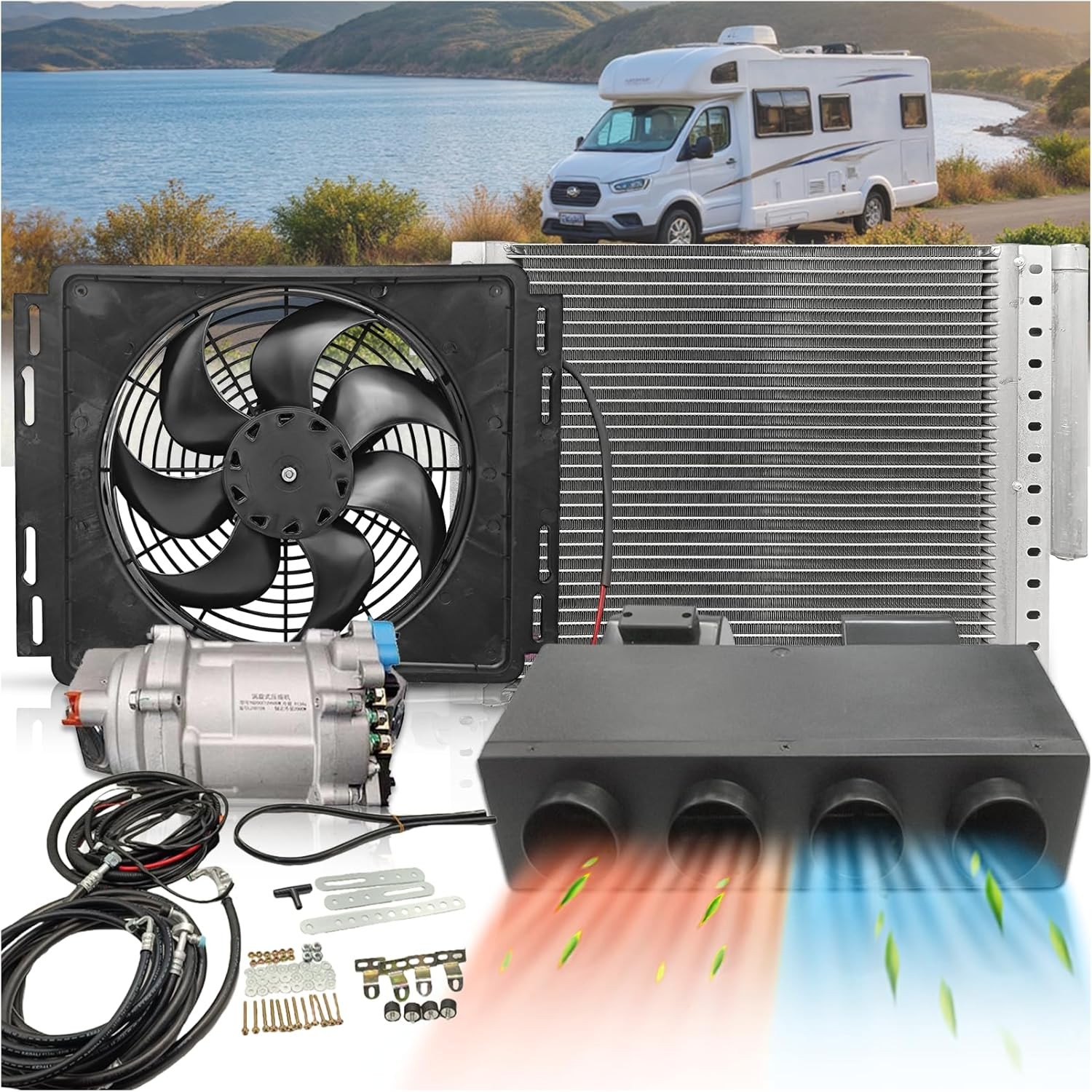

Package Included1x Condenser*Fan*Dryer Bottle（Dimension：14*18inch with bottle，OR interface）
1x Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with carton）
1x Outlet
1x Integrated Electric Compressor
1x Wiring Harness
1x Fittings Kit
Just as pictures show
