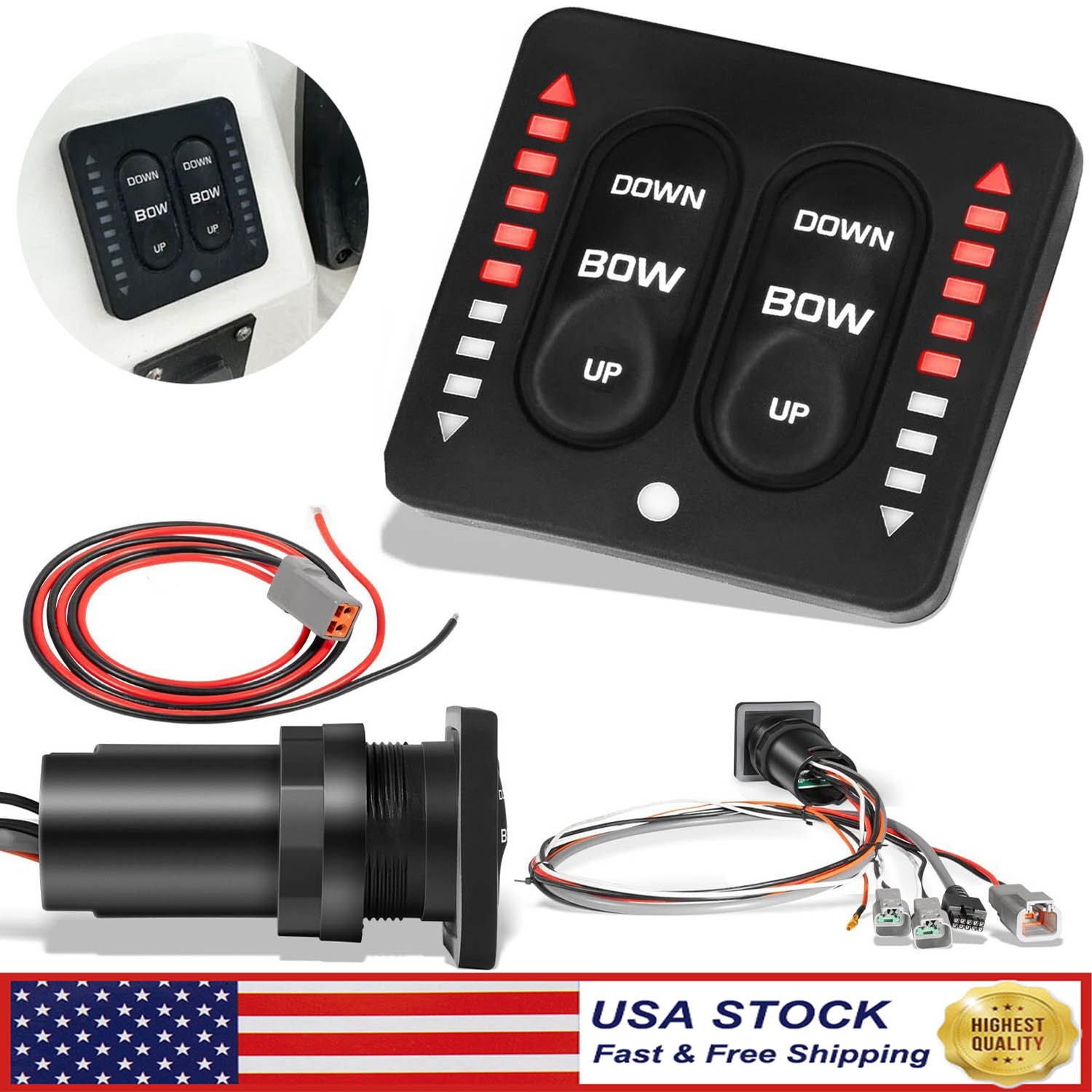

15170-001 LED Integrated Indicator Tactile Trim Tab Switch Kit with Pigtail Replacement Parts Fit for Lenco Marine Single Actuator Systems
【Compatible with Single Actuator Systems】
Direct replacement for Lenco Marine 15170-001 trim tab switch kit. Works with standard and HD single actuator systems. Ideal for upgrading or replacing existing switch kits on your boat's trim tabs.
【Real-Time LED Position response】
Features dual high-brightness LED indicators that clearly display trim tab positions. Integrated control box ensures precise, responsive adjustments for optimal performance and handling on the & Light-Sensing LED Brightness】
Built-in retract feature returns tabs to the neutral position when the engine turns off. Ambient light sensor automatically adjusts LED brightness for clear visibility day or night. Backlit keypad offers enhanced nighttime usability.
【Easy Plug-and-Play Installation】
Install in minutes with basic tools. Requires 2 1/16" hole saw for mounting. Includes 36" power pigtail and 30" harness from switch bezel. Clear instructions make wiring and setup quick and Marine-Ready Design】
Low-profile keypad measures 2.75" x 2.75", fits 2 1/16" cutout, and needs 4.08" clearance. Sealed, corrosion-resistant design built to withstand harsh marine Specifications】
Includes a 30" (76.2 cm) wiring harness from the switch bezel, a 36" power pigtail, a keypad dimension of 2.75" x 2.75" with a 2 1/16" hole cut-out, and requires 4.08" clearance, all designed within a sleek, low-profile form factor.
Simple, quick, Plug & Play installation.
♦ 1. At the helm, determine where the tactile key pad will be installed, locate the supplied switch template, and secure to helm. Cut a circular opening using a 2 1/16” (5.24 cm) hole saw (Hole must be 2 1/16”). Before cutting, make sure the area inside the helm is clear of wires and other equipment that could be damaged.
♦ 2. Place the key pad & wiring into 2 1/16” hole, feed wires through bezel nut and hand tighten the key pads bezel nut onto the backside of helm.
♦ 3. Each switch kit has a retractor wire (orange) that must be connected to an on/off power source. The tabs retract to the up position when power, or analog signal is removed, and then shuts the system down into stand-by mode.
Orange Wire Connection Options
Connect to Key switch or ON/OFF power source. Do not install the orange wire and main power on the same mechanical switch.
Item SpecificsBrand EG-AutoWarranty 1 YearManufacturer Part Number EGQP2241Type Tactile Switch KitFitment for Lenco Marine Single Actuator SystemsModel 15170-001Material Copper, rubber and plasticColor BlackCurrent Rating 1 AmpsOperating Voltage ?120 VoltsConnector Type Plug InNumber of Items 1
