17mm Upgraded Ring Gear Fix IWE Grinding Noise Ford F150 4x4 04-15 7L1Z-3C247-A
17mm Upgraded Ring Gear Fix IWE Grinding Noise Ford F150 4x4 04-15 Upgraded Ring Gear — Fix Ford IWE Grinding Noise (Factory-Spec, Minimal MPG Impact)
Grinding, humming or rumbling noise in 2WD that goes away in 4WD? That's your IWE actuator ring gear wearing out — the well-documented Ford F-150 weak point. Replace just the worn 10mm gear ring with our 17mm heavy-duty version.Keep your factory vacuum IWE system, keep your warranty intact.
🔧 Fits (2004-2015)
- Ford F-150 4x4(2004-2015)
- Ford Expedition 4x4(2003-2015)
- Lincoln Navigator(2003-2015) ·Lincoln Mark LT(2006-2008)
📦 What's Included (2-Piece Set)
- 2 × Upgraded Auto Locking Hub Axle Actuator Ring Gears
- Material:High-quality alloy steel
- Diameter: 91mm (3.61")

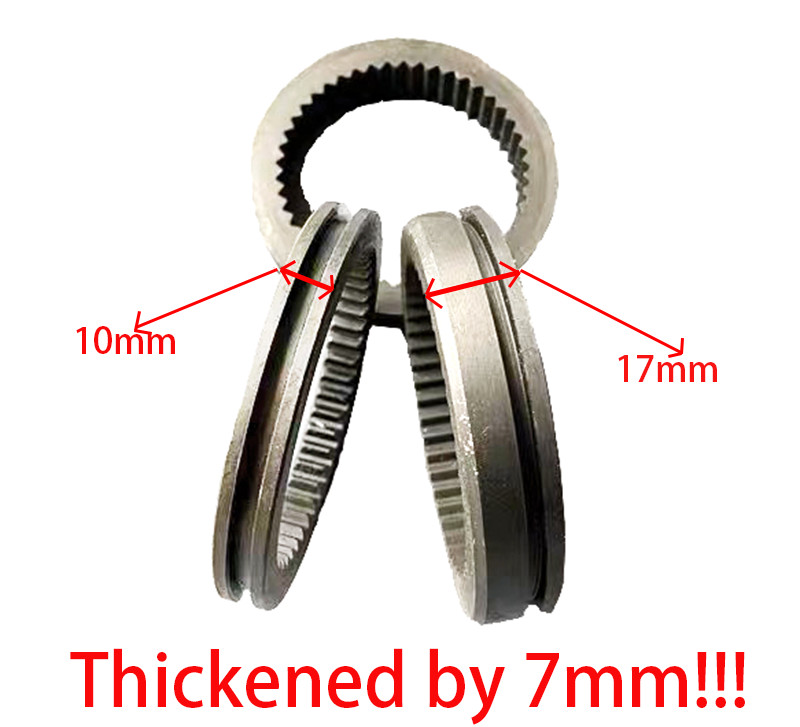

- Thickness:17mm (0.66") — 7mm thicker than the 10mm OEM gear
✅ Replaces OEM Part
7L1Z-3C247-A(also 7L1Z3C247A, 2L1Z-3C247-AA, 5L1Z-3C247-A, 600-105, YL1Z-3C247-AA)
⚙️ Two Ways to Fix IWE Noise — Know the Difference
There are two common approaches to fixing IWE grinding noise.Both stop the noise — but they work very differently:
Approach👉 Our 17mm Ring Gear (Repair)Sleeve-Style "Delete" Kit (Permanent)MethodReplace worn gear — IWE system staysPermanently lock the hubs (delete IWE)2WD behavior✅ Front wheels freewheel normally❌ CV axles spin constantlyExtra wear on CV / diff✅None⚠️ Added wear on front endReversible?✅Yes — factory-style❌ Permanent modificationInstallation✅ Replace 2 gear rings❌ Remove entire IWE assemblyBest forDaily driving & light off-roadHardcore / extreme off-road only
Choose the approach that fits how you drive. For daily use — keeping your mpg, warranty and factory system — this 17mm ring gear is the right fix.
💰 The Cost Reality
- Cheap aftermarket actuator: ~$38 →fails again in 1-2 years (same weak 10mm gear)
- Ford OEM actuator assembly: ~$196 →still only 10mm — same wear point
- 👉 Our 17mm upgraded ring gear: $[149.99]→fix it ONCE, properly, and keep your mpg
🔩 Why the OEM Gear Fails
- The OEM ring gear has alimited meshing section→ premature wear on the gear ring AND wheel hub gears.
- Results ingrinding / humming noisethat worsens over time.
- In severe cases →loss of 4WD function, dangerous on uneven or slippery terrain.
✅ Why Our 17mm Upgrade Lasts
- 17mm thick (vs 10mm OEM)→ 70% more meshing area → far stronger engagement.
- High-quality alloy steel→ superior durability vs the stock gear.
- Stronger, more positive meshbetween the axle shaft and wheel hub — withno partial disengagement or slippage under load— while the normal 2WD / 4WD engage-disengage cycle is fully preserved. (This is NOT a permanent "locked-hub" setup; the factory vacuum IWE system remains fully functional.)
- 2WD / 4WD switching is retainedvia the transfer case controls, giving you versatile driving options on-demand.
🛠️ Installation Tips
- Replace only the circled ring gear parts (see photos) —no need to remove the full assembly.
- Use plenty of greaseafter install for proper lubrication and to prevent wear.
- If noise persists, also inspect / replace theFront Wheel Bearing Hub Assembly.
📌 Important Notes — Please Read
- Engagement & drivability:Our upgraded gear ring provides better performance and maintains continuous, positive engagement between the driveshaft and wheel hub bearing when locked — without unwanted disconnection under load. You can easily switch between two-wheel and four-wheel drive modes through the transfer case mechanism for versatile driving options.
- Fuel economy:Based on our testing, fuel consumption may increase by 0.5–1 L / 100 km after installing this component. However, the improved performance and durability of our upgraded gear ring will save you time and money in the long run by preventing repeated failures of the stock 10mm gear.
✔️ 17mm heavy-duty alloy steel · ✔️ Factory-style / reversible · ✔️ Fixes it right the first time · ✔️ Fast US shipping · ✔️ Hassle-free returns ·✔️ Minimal MPG impact (~0.5–1 L/100km)
Please confirm your model and OEM part number (7L1Z-3C247-A) before ordering to ensure fitment.
