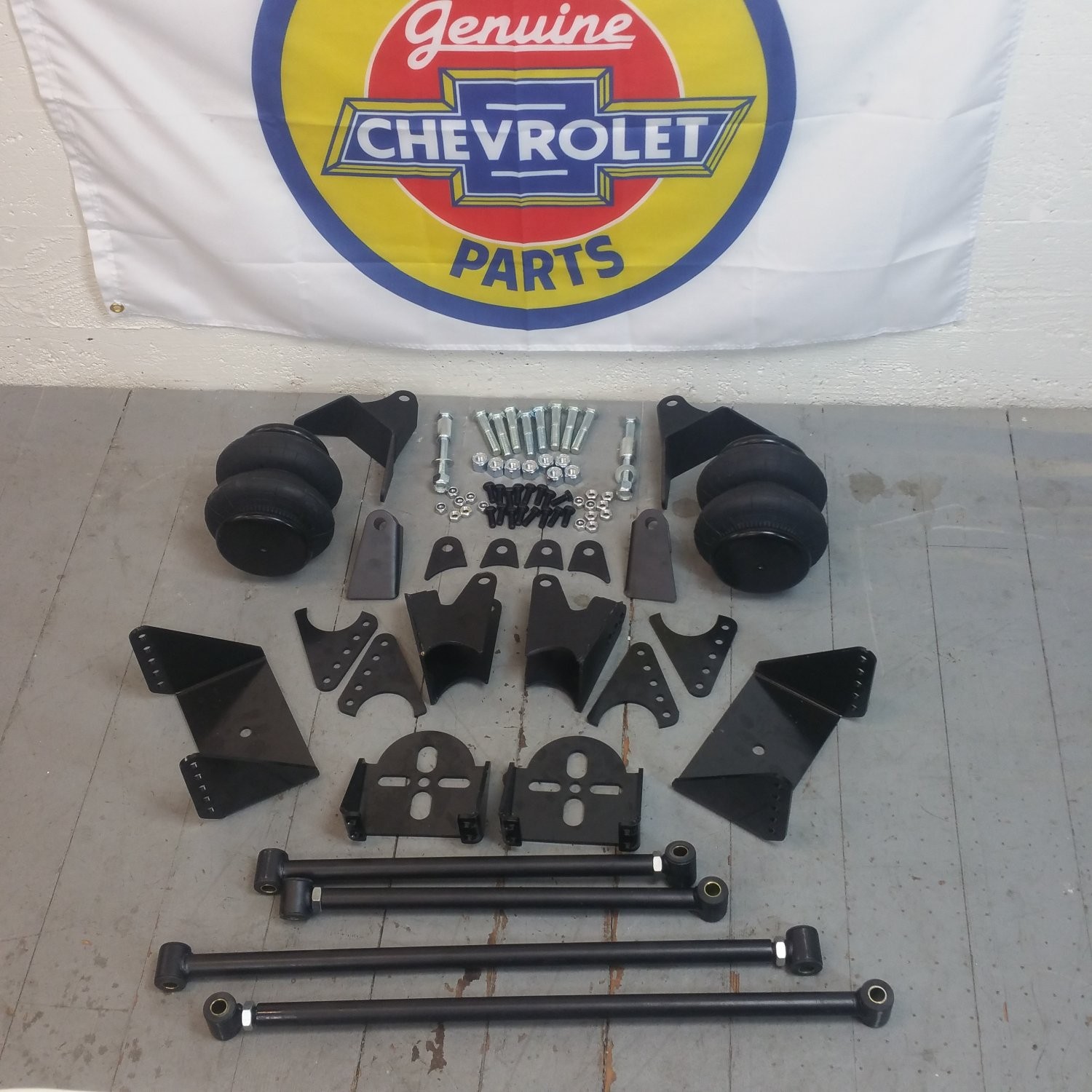

1953-1962 Chevy Triangulated Rear Suspension 4 Link Kit w/2600lb. BagsSku # B542BConditionNewBrandNational Speed Automotive SupplyUnit Of Measure1
This ultimate kit includes Heavy Duty Triangulated Full Size 1953 - 1962 Chevy Four Link Kit with Shock Hardware, 2 1/2inch Single Port Air Bags with a load rating of 2600 lbs and a 1953 - 1962 Chevy Rear Air Bag Bracket Kit. Putting a lot of horsepower through your rear end? s New Heavy Duty 1953 - 1962 Chevy Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, s full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. s adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16 plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included. Looking for an air bag that can give you a smooth ride? Look no further! bags feature a maximum restrained pressure of 602 psi, 8.51 inch usable stroke, with a load range of 2600 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability. creates a high quality air bag that will give you the performance reliability you want with a smooth ride. And make sure you install it all correctly with our 1953 - 1962 Chevy Rear Air Bag Bracket Kit which includes 2 upper plates, 2 lower plates, 2 upper cups and 2 lower cups.Triangulated Rear Suspension Four 4 Link Kit for 53-62 Chevy fits coiloversItem -
Includes --> Triangulated Four Link Kit with 2 Air Bags & Bracket Kit
Feature --> Heavy Duty Triangulated Full Size 1953 - 1962 Chevy Four Link
Four Link Main Bar --> 28" (711mm) Long
Four Link Secondary Bar --> 18" (457mm) Long
Four Link Bar Wall Thickness --> 4.1mm
Four Link Heavy Duty Bushings --> YES
Four Link Coil Over Bracket Positions --> 3
Four Link Coil Over Brackets --> YES
Four Link Adjustable --> YES
Four Link Bar Thickness --> 25 mm
Four Link Brackets Thickness --> 5mm
Four Link Brackets --> Included
Install Hardware --> YES
Number Of Bars --> 4
Four Link Bushing Included --> YES
Four Link Shock Hardware --> YES
Four Link Hardware --> YES
Four Link Axle --> 3" & 2 3/4"
--- --> ---
Includes --> 2 1/2 Single Port Air Bags
Air Bag Height --> 5.6" - 7.5"
Air Bag Usable Stoke --> 8.51"
Air Bag Load Rating --> 2600 lbs
Air Bag Max PSI --> 602 psi
Air Bag Minimum Compressed --> 2.8"
Air Bag Max Extended --> 10.5"
Air Bag Diameter --> 7.25"
--- --> ---
Includes --> 1953 - 1962 Chevy Rear Air Bag Bolt On Bracket Kit
***Please Note This Kits Is A WELD ON Kit & Professional Installation Is Policy:
