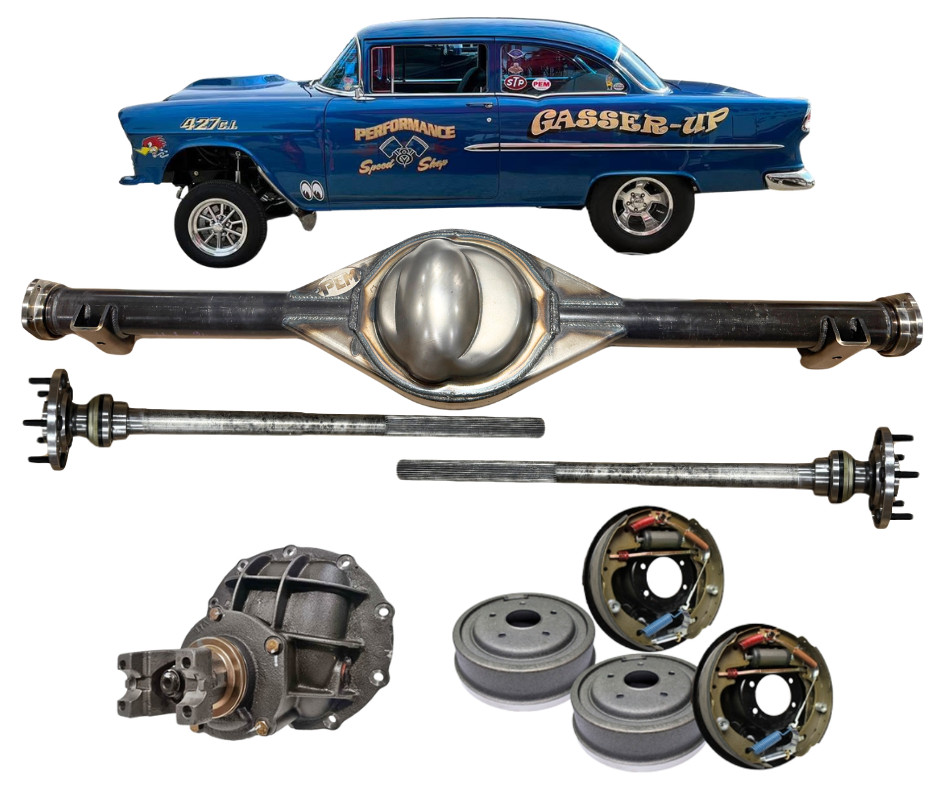

Tri Five New Flanged Leaf Spring Housing 60.5 inch Stock pinion Location with .375 Big Ford Torino Ends
Wheel mounting flange to wheel mounting flange will be 60.5\" Track width with axles installed.
CHOOSE:GEAR RATIOREAR END YOKE SIZEWHEEL BOLT PATTERN AND WHEEL STUD SIZE (7/16\" OR 1/2\")DRAIN PLUG (NONE OR 3/4 NPT IF REQUESTED WHEN YOU ORDER)
**********( WE CAN NOT BUILD UNTIL THE ABOVE OPTIONS ARE CHOSEN!!!)************
- Stock rear end pinion yoke location between wheel flanges when center section is installed.
- Standard driveshaft location 1/2\" to the passenger side exactly like a General Motors rear.
- New Stamped Housing with new 3\" x .188\" wall DOM tubing.
- Big Ford New Style (torino) housing ends with .375\" (3/8\") bolt holes
- new studs installed in housing
Nodular Iron Trac-Loc Center Section 9\" Ford with 31 spline Premium Street Gear ring & pinion, Assembled.
PEM Trac-Loc POSI IS A CLUTCH STYLE LIMITED SLIP. REQUIRES FRICTION MODIFIER
The Center Section will be Assembled and set up for Street by Professionals.
ALL NEW UNIT!
- Nodular Iron Gear case and Nodular iron Stock size Pinion Support.
- 9 inch Ford US GEAR 8620 Street Series Ring & Pinion(ratios 325, 350, 370, 389, 4.11 or 4.30).
- 2.89\" OD Bearing size x 1.78\" ID bearing surface. nodular iron 5 bolt pinion support.
- CHOOSERear End Yoke: choose 1310 series (3 7/32\" wide with 1 1/16\" cap OD) or 1330 series 3 5/8\" wide with 1 1/8\" cap OD)rear end yoke.
- 9 inch Ford PEM 31 spline Heli-Trac (helical gear style posi)must use non synthetic gear lube
Package includes: PEM nodular iron case, iron pinion support, pinion bearings & races, pinion bolts, pinion depth shims,pinion seal, pinion nut, side bearings & races, premium ring gear bolts, tail bearing and tail bearing retainer plate.
All bearings and seals are Premium Brands ( either Timken or Koyo).
Also comes with big housing gasket, u-bolts for yoke and 4 ounce bottle of friction modifier.
We will build this center section after you verify the ratio of ring & pinion and the yoke series you want.
PEM9\" Ford 11\" Drum Brake Kit for Big Ford 3/8\" New Style Ends with GM 5 x 4.75\", 5 x 4.5\" or 5 x 5\" bolt pattern
ALL NEW KIT -Will not fit Old Style Big Ford 1/2\" Housing Ends, check pictures for new style drawing
- 11\" drum Brake Kit for 9\" Ford Rear End.
- 5 x 4.75\" GM bolt pattern for small GM 5 lug
- Drum O.D. is 12.625\" at the biggest part.
- Drum has 2.88\" Hub Register.
- Brake shoes are 2.25\" wide.
- The backing plates fit Big Bearing 3.15\" OD Bearing for the New Style Big Ford with 3/8\" bolts (as shown in pictures)
- For 2.5\" axle offset.
