Unit is single wire hook up and NOT PLUG & PLAY.

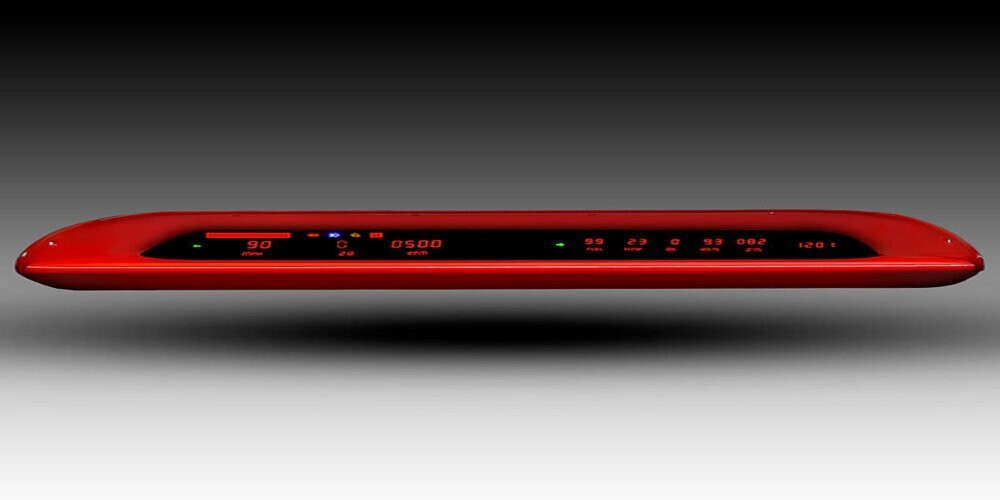

Upgrade your 1963-1964 Chevrolet Impala with the Intellitronix DP1204 LED Digital Replacement Gauge Panel, designed to provide an elegant, modern update to your vehicle’s interior. The vibrant, crisp, and easy-to-read lights increase accuracy and give your car a high-tech look. The gauge panel includes direct fit printed circuit boards, a custom fit "smoked" plexiglass faceplate, a universal temperature sending unit, an oil pressure sending unit, and a speedometer sending unit with a sender and sensor for vehicles without electronic transmission or cruise control. Installation instructions are included.
The speedometer reads up to 255 MPH and features an odometer, trip meter, and one-button calibration, regardless of tire size, gear ratio, or transmission. It also includes 0-60 time with 1⁄4 mile elapse time plus high-speed recall, all accessible with the push of a button. The speedometer can be used with electronic cruise control senders or the included S9013 universal speedometer sending unit if your vehicle is not equipped with a functional cruise control. The tachometer displays 0-6000 RPM in 300 RPM increments and is programmable for 4-6-8-cylinder engines. The speedometer and tachometer are combined into a single unit.
Water Temperature: Displays a 100-300°F range with sender S8013 included. Please specify the bushing size for the sender; we normally send a 1/2 inch one, but a 3/8 inch one can be sent upon request. Just add a note at checkout; otherwise, you will need to get the correct bushing on your own.
Oil Pressure: Reads a 0-100 PSI range and includes the oil pressure sender.
Voltmeter: Displays a 7.0-18.0 volts range and does not require a sending unit.
Outside Air Temperature: It has 0-250 Fahrenheit degree range accuracy.
Fuel Level: Reads a 0-99% range in 1% increments and works with the existing GM fuel level sending unit.
The panel also includes turn signals and a high beam indicator.
The clock displays time in hours and minutes.
Note: Bezel not included.
Make a note at the time of checkout if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit. (NOTE: Not all analog gauge clusters are available in KM/H)
·Know Before You Buy!
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, (Part Number 8014-LS / LS Swap Kit). Also, if your LS engine is 4 cylinders, then please send a note to the seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
We always strive to be sure that your order is accurate to meet your specific requirements. With that in mindplease try to make any special requests in "BUYERS NOTES" at checkoutwhen placingyour order.The buyer’s notes are the section that many customers put make, model, year of vehicle etc... but it is also used to make special requests like LS or KM/H & Celsius etc...
The Order Processing Department and Customer Service Department (e-bay messages) are separate. Depending upon our volume of messages to be answered, any special requests made via messages instead of an added “BUYERS NOTE” with order, could be missed before your order ships. We try to catch them all and coordinate with both departments but sometimes the timing can be off.
RETURN POLICY
·The panel kit comes with a Lifetime Guarantee and is made in the USA!
·If you're not 100% completely satisfied, then just arrange to send it back within the 30-DAY return period.
After the initial 30 days from purchase date, all warranty and service-related requests are done directly with the manufacturer of product (Intellitronix). Keep proof of purchase and keep installation guide with all related contact information such as phone number of MFG for warranty requests or technical assistance.
