Description
Rebuild your Ford small block V8 with a complete kit designed for the verified car, truck, van, and SUV applications listed below. This kit supports Ford 289 and 302 OHV V8 engines with a 4.000" bore and is intended for specific cam sprocket and rear main seal configurations where correct application details matter.

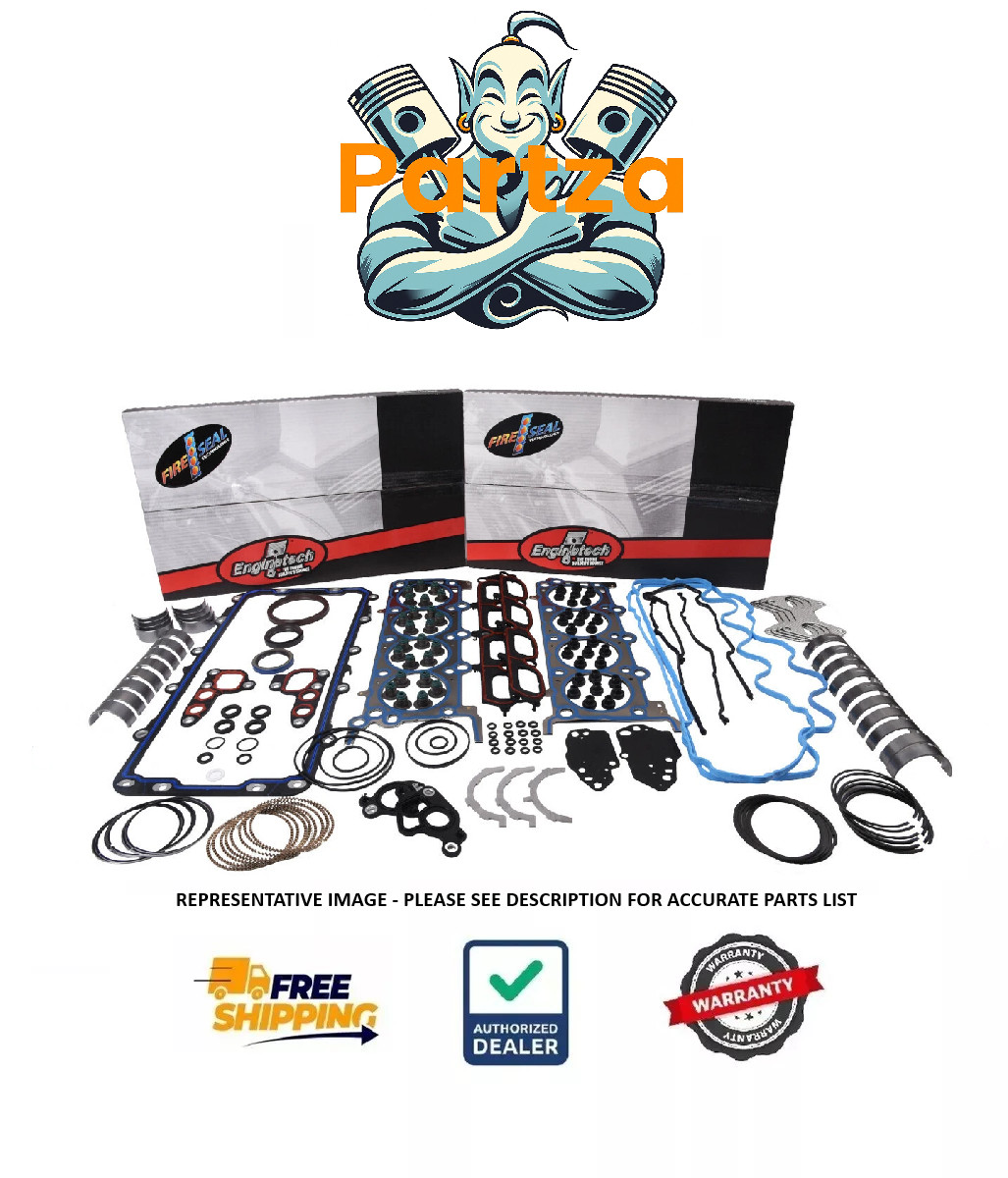

Kit Components & Available Sizes
Piston Ring Set
R40058 — STD, 020, 030, 040, 060, 080
Bearing Set - Rod
BB214J — STD, 001, 010, 020, 030, 040
Bearing Set - Main
BC240J — STD, 001, 010, 020, 030, 040
Gasket Set - Full
F302-4
Expanded Vehicle Compatibility
Ford Passenger Car
1967 — 4.7L / 289 OHV V8 16V, 4.000" bore
2-BBL, from late 1965
1965–1968 — 4.7L / 289 OHV V8 16V, 4.000" bore
4-BBL, from late 1965
1968–1971 — 5.0L / 302 OHV V8 16V, 4.000" bore
Cam sprocket without cast-in counterweight
1972–1974 — 5.0L / 302 OHV V8 16V, 4.000" bore
Cam sprocket with cast-in counterweight
1975–1976 — 5.0L / 302 OHV V8 16V, 4.000" bore
Cam sprocket without cast-in counterweight
1977–1983 — 5.0L / 302 OHV V8 16V, 4.000" bore
Two-piece rear main seal
Except HO
Ford Truck, Van, SUV
1966–1967 — 4.7L / 289 OHV V8 16V, 4.000" bore
4-BBL
1968–1972 — 5.0L / 302 OHV V8 16V, 4.000" bore
Cam sprocket without cast-in counterweight
1972–1976 — 5.0L / 302 OHV V8 16V, 4.000" bore
Cam sprocket with cast-in counterweight
1977–1983 — 5.0L / 302 OHV V8 16V, 4.000" bore
Two-piece rear main seal
Notes & Exclusions
Confirm your engine displacement (289 or 302) and bore size before ordering.
Verify cam sprocket configuration (with or without cast-in counterweight) as noted.
1977–1983 applications require a two-piece rear main seal.
Passenger car applications exclude HO engines where noted.
Select the correct bearing sizes needed for your rebuild.
📢 PLEASE SPECIFY SIZES NEEDED WHEN ORDERING. STANDARD SIZES SHIP BY DEFAULT.
SIZE EXCHANGES REQUIRE THE BUYER TO COVER RETURN SHIPPING.
