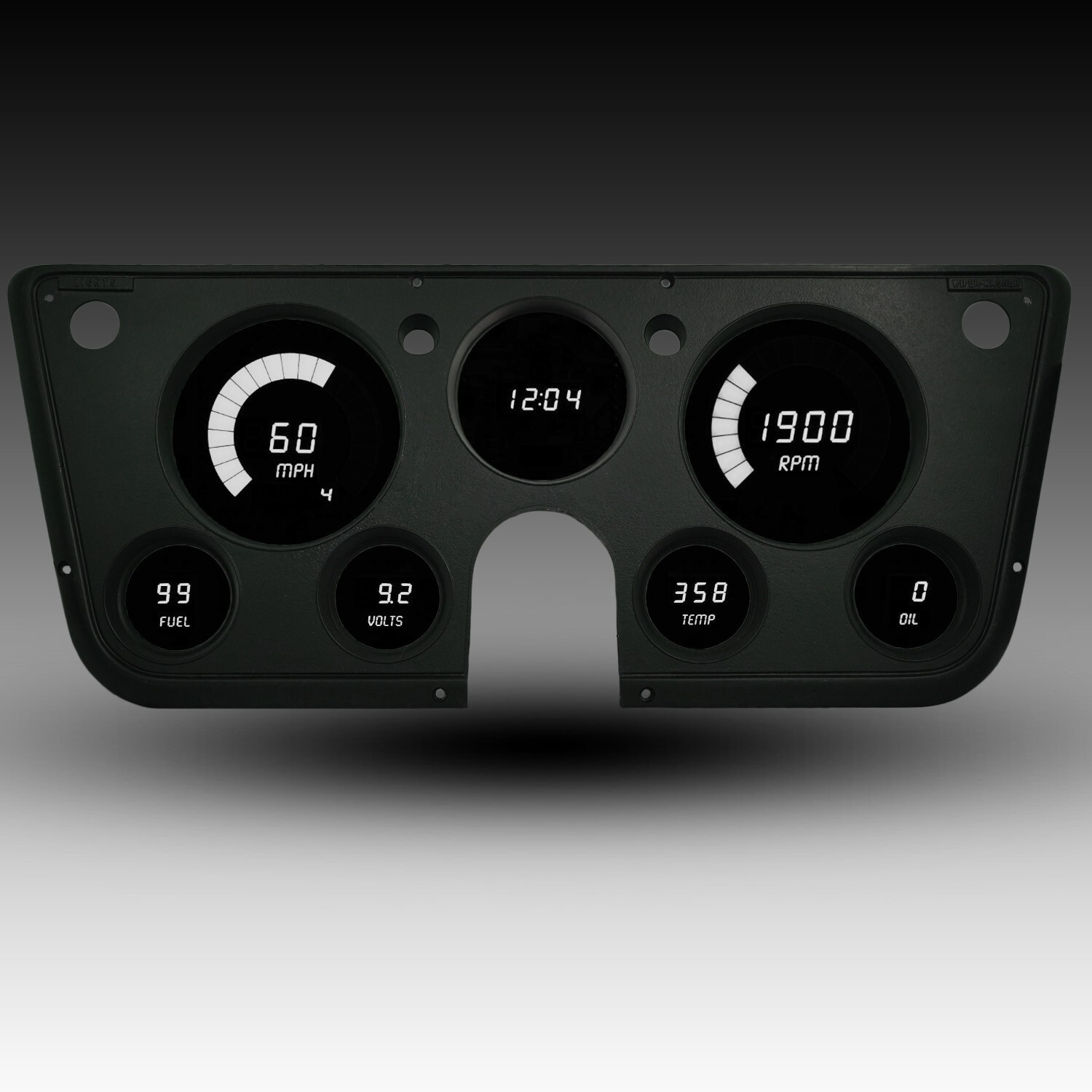

Upgrade your classic Chevy truck's dashboard with the modern technology of the Intellitronix DP6003W (White LED) digital instrument cluster. This high-quality cluster includes a variety of gauges such as a temperature gauge, oil pressure gauge, fuel gauge, and speedometer, all with a numeric digital display. The cluster also features a clock and a smoked acrylic lens with illuminated backlit display.Made in the USA with fiberglass, copper, and acrylic materials, this modern digital cluster has a white LED digital display and fits your existing housing/bezel (not included). With a lifetime manufacturer warranty, this instrument cluster is designed to provide accurate readings and add a stylish touch to your vintage Chevy truck.
The speedometer reads up to 255 MPH and features an odometer, tripmeter, one-button calibration, regardless of tire size, gear ratio, ortransmission, and 0–60-time, 1⁄4-mile elapsed time, and high-speed recall, allwith the push of a button. The speedometer can be used with electronic cruisecontrol senders or use included S9013 with universal speedometer sending unitif your vehicle is not equipped with a functional cruise control.
Tachometer with 0-9900 RPM in 100 RPM increments.
The Water Temperature display is in the 100-300°F range withsender S8013 included.
Please specify bushing size for sender as we normally send a 1/2inch one, but we can send a 3/8 inch one instead upon request. Please just adda note at check-out; otherwise, you will have to get the correct bushing onyour own.
The Oil Pressure display with 0-100 PSI range with oil pressuresender included.
Voltmeter display with 7.0-25.5 volts range and no sending unitrequired.
Fuel Level display with 0-99% range in 1% increments and workswith existing GM fuel level sending unit.
The panels also feature turn signals and high beam indicatormaking it the ultimate way to keep the ride you love cruising through the times.
Note: When installed the gauge cluster maydisable the cruise control system.
Easy Install, Lifetime Warranty, Great Price, & Gauges foryour very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal and Green
