1968-72 Chevy Chevelle, GM A-Body Front Coilover Suspension Kit, SBC, Double Adj For Sale - New and Used

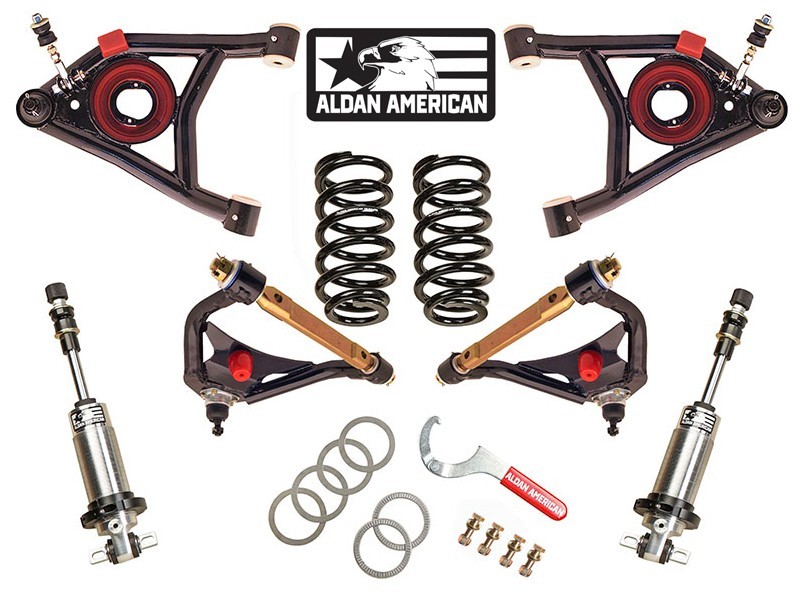

Upgrade your front suspension with an engineered solution designed to deliver modern handling, improved strength, and fully adjustable ride performance. The Aldan American Track Comp Series Coilover Conversion Kit transforms your factory suspension into a high-performance system using Aldan American RCX Double Adjustable coilovers paired with Pirate Jack tubular control arms, providing a complete bolt-on upgrade with OEM-quality fitment.This Track Comp Series system features Aldan American RCX Double Adjustable coilovers, delivering 180 points of combined compression and rebound adjustment for precise suspension tuning. Designed for enthusiasts who demand maximum control, this advanced adjustment capability allows fine-tuning of ride quality, cornering stability, and chassis response for aggressive street driving, pro-touring builds, and track-focused performance applications. Each coilover is matched with Aldan American cold-wound linear coil springs, engineered to maintain consistent ride characteristics across a wide range of driving conditions while providing predictable suspension behavior. 450 lb. small block springs are included with this kit. Ride height is fully adjustable, allowing a lowering range of approximately 1–2 inches to achieve the ideal stance and performance balance. An Aldan American adjustable spanner wrench and thrust bearings are included to simplify and smooth ride height adjustments. All Aldan American coilovers and springs are proudly manufactured in the USA and backed by a 100% satisfaction guarantee.Included in this system are Pirate Jack front tubular upper and lower control arms, constructed from heavy-duty tubular steel and finished in a durable black powder coat for long-lasting corrosion resistance and clean appearance. Designed to be stronger and lighter than factory components, these control arms incorporate built-in positive caster to improve steering stability, enhance cornering performance, and increase overall vehicle control.High-quality greaseable Delrin bushings reduce deflection while maintaining smooth suspension articulation, while premium ball joints provide durability and extended service life. Offset billet cross shafts and sway bar linkage components are included to improve alignment capability and streamline installation. This system is engineered as a direct bolt-on solution for vehicles equipped with disc brakes and is recommended for use with stock-height spindles.The suspension geometry lowers the vehicle approximately 1.0"–2.0" overall, delivering an aggressive stance while improving handling dynamics and road feel. Engineered for drivers who demand track-level adjustability without sacrificing street drivability, the Aldan American Track Comp Series system delivers precision handling, superior tunability, and American-made quality in one complete suspension upgrade package.

Important Installation Note:THE LOWER CONTROL ARMS FEATURE 5/16" WELDED ON NUTS FOR THE LOWER SHOCK MOUNT POINTS. THESE WELDED NUTS MUST BE REMOVED OR REAMED OUT TO 3/8" FOR ALDAN AMERICAN COILOVER T-BAR INSTALLATION. MODIFIED PARTS ARE Ride Height: 1.0–2.0 in. lowered

Pirate Jack Upper and Lower Tubular Control Arms Included

Built-In Positive Caster for improved handling and steering stability

Aldan American Track Comp Double Adjustable Coilovers Included

450 lbs./in. Small Block Coil Springs Included

Coilover Kit Position: Front

Ball Joints, Greaseable Delrin Bushings, and Sway Bar End Links Included

Offset Billet Cross Shafts for improved alignment capability

Gloss Black Powder coated Control Arms for durability and corrosion resistance

Bolt-on design for factory-like fitment and straightforward installation

Includes spanner wrench and thrust bearings for easy ride height adjustment

Installation Note: Lower control arms feature 5/16” welded nuts at the lower shock mounts which must be removed or reamed out to 3/8” for Aldan American coilover T-bar installation

Aldan American Adjustable Spanner Wrench and Thrust Bearings Included

This part fits the following vehicles:

• 1968-1972 Buick Skylark
• 1968-1972 Chevrolet Chevelle
• 1968-1972 Chevrolet El Camino
• 1968-1972 Chevrolet Malibu
• 1970-1972 Chevrolet Monte Carlo
• 1971-1972 GMC Sprint
• 1968-1972 Oldsmobile Cutlass
• 1968-1972 Oldsmobile F-85
• 1968-1972 Oldsmobile 442
• 1969-1972 Pontiac Grand Prix
• 1968-1972 Pontiac LeMans
• 1968-1972 Pontiac Tempest
• 1968-1972 Pontiac GTO
