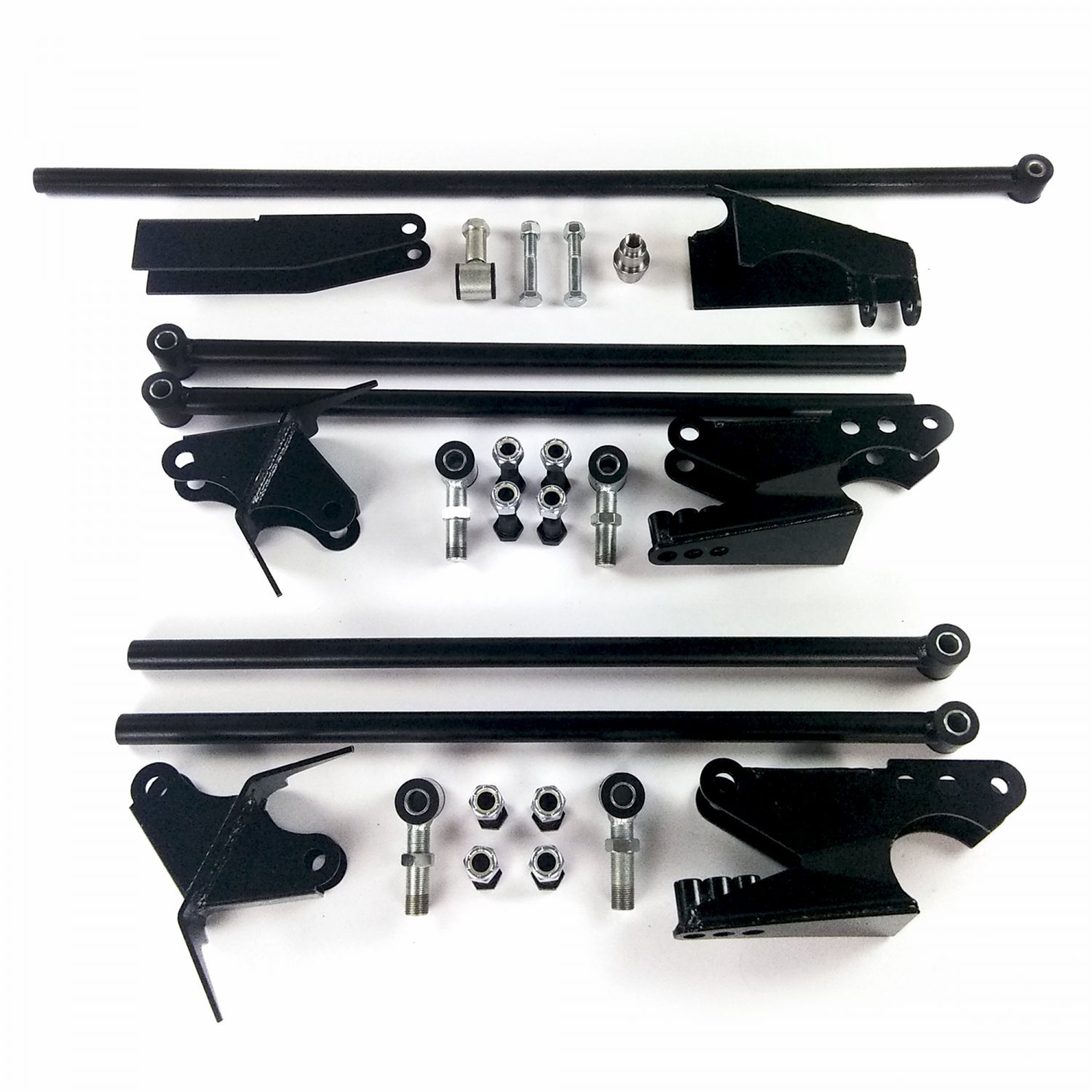

1970-81 Camaro Retrofit Parallel Rear 4-Link Suspension w/ Panhard NO CoiloversSku # 1774DEConditionNewBrandHelix Suspension Brakes and SteeringUnit Of Measure1
Product Description1970-81 Camaro Retrofit Parallel Rear 4-Link Suspension w/ Panhard NO CoiloversPutting a lot of horsepower through your rear end? All New Rear Parallel 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helixs full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helixs adjustable 4-link features extra long 28 inch bars and provides you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16 plate. Special adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.Feature --> Heavy Duty Parallel Full Size Universal
Installation --> Weld In
Main Bars w/ Adjusters --> 28.5" (724mm) Long
Panhard Bar W/ Adjuster --> 40.75" (1035mm) Long Trimmable
Bar Wall Thickness --> 4.1mm
Heavy Duty Bushings --> YES
Adj. Coil Over Brackets Positions --> 3
Coil Over Brackets --> Lower
Adjustable --> YES
Bar O.D. --> 25 mm
Brackets Thickness --> 5mm
Brackets --> Included
Install Hardware --> YES
Number Of Bars --> 5 including Panhard
Bushing Included --> YES
Shock Hardware --> YES
Hardware --> YES
Axle --> 3" & 2 3/4"
Tech Support --> Live Technical Support***PLEASE NOTE :: This is not a direct fit rear suspension for 1970-1981 camaro but has been selected as a suitable part for this application. Please note that some Modifications will be required to complete your install. ***We recommend this be installed by a professional fabricator due to the required modifications which include reinforcing all mounting points, adjusting the bar lengths, etc. it is also highly recommended to install sub frame connectors with the Policy:
