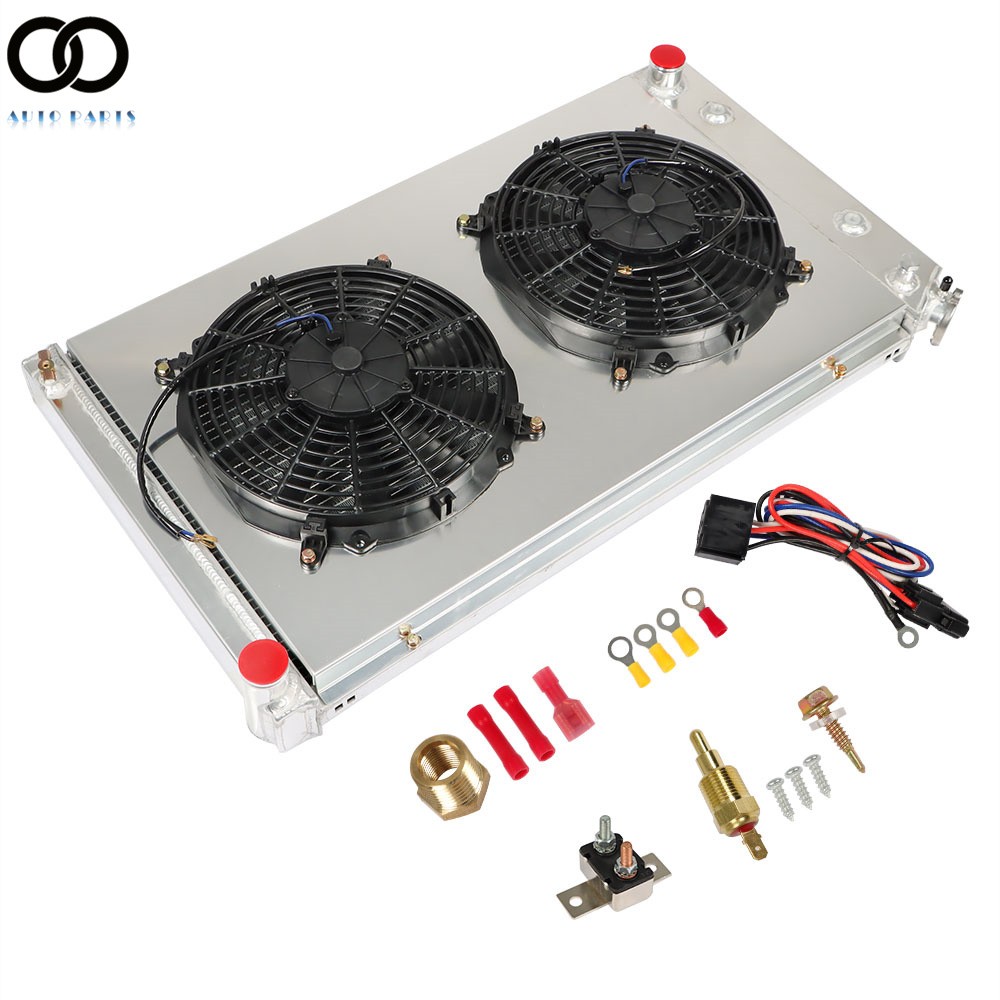

Transmission Oil Cooler 1973-1986 1987 For Chevy C/K C10 C20 C30 K10/20 3 Row Radiator Shroud Fan Package Include:
1 X 3-Row Aluminum Radiator
1 X Radiator Cap
1 X Aluminum Shroud
2 X 12" Fans
1 X Thermostat Relay Kit
Radiator Size
Row: 3 Row Core
Material: Full Aluminum
Radiator Cap: included
Core and Tank: All Aluminum
Core Size:19" high x 28-1/2" wide x 1 3/4"T
Overall Size:20-1/4" high x 33-1/4" wide
Transmission Oil Cooler inlets:1 1/2" located on the driver side
Lower outlets:1 1/2" located on the passenger side
Transmission: Automatic（AT）
Vehicle Fitment
For 85 86 87 Chevy Pickup Truck 19" Core
For 1981- 1991 Chevy Truck
For 73-91 Chevy Suburban
For 73-91 Chevy Blazer / Jimmy
For 73-87 Chevy Pickup Trucks
For 81-90 GM Truck 5.7 7.4
For 85 86 GMC C2500 C3500 K1500 K2500
For 81-90 Chevy R Series
For 81-90 Chevy K Series
For Chevy For GMC Blazer Jimmy Suburban
For 73-87 Chevy Truck, 73-91 Blazer (19" x 28-1/4" Core)
For 73-91 Chevy C/K Series Trucks
For 73-81 K5 Blazer
For 73-80 CHEVY C/K SERIES C10/C20/K10 PICKUP
Aluminum Shroud and Fans:
The New Design fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050"
Thickness (in): 2.500"
10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
Comes on at 185º AND Turns off at 165º.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 40% more efficient than stock ones.
Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Item SpecificsCountry of Origin United StatesBrand autooopartsType RadiatorSurface Finish AluminumRadiator Cap Included YesMaterial AluminumColor Silver, BlackManufacturer Part Number APO220008Fitment Type Performance/CustomStyle CrossflowManufacturer Warranty 1 Year
