THE STRONGEST WINCH MOUNT ON THE MARKET FOR SQUARE BODY GM TRUCKS
Engineered Vintage, LLC 1973-80 BBWM (Behind Bumper Winch Mount) for 1973-80 GM 4x4 trucks & 1973-80 GM 4x4 Suburbans, K5 Blazers, & Crew Cabs. (see other sales for 67-72 GM truck or 81-87/91 Suburban/K5/Crew/CUCV winch mounts)
Designed to fit foot down style winches (see installation instructions on our website tech page for more information on what winches that fit) and strengthen the front frame sections on these trucks with installation of an additional front cross-member)
This kit reinforces the critical steering box frame area and also bolts into and strengthens the stock front frame cross-member - unlike any other winch mount kit on the market!
Designed, manufactured, and sold in Oregon USA, by a gear head engineer for gear heads!
This kit bolts in with winch line exiting through the bumper (requires cutting a hole in bumper)

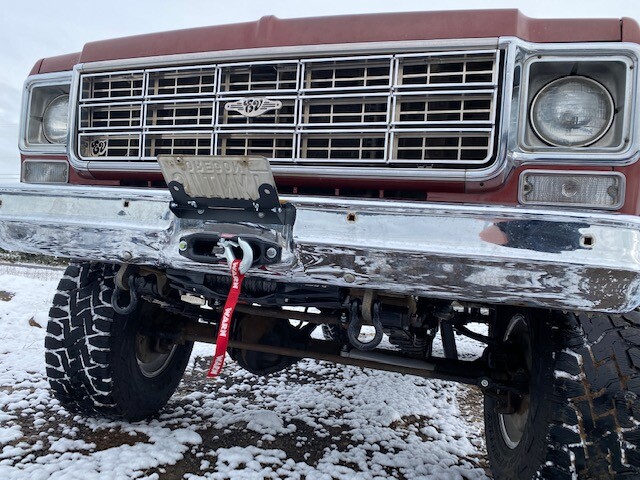

Pictured truck is a 1977 Chevrolet 3/4 ton K20 with a WARN VR EVO 8K winch mounted in the BBWM.
Note that the winch mounts upside down in this kit - check with your winch manufacturer on capability of your model winch to be operated & installed upside down.
The BBWM will BOLT into 73-80 square body 4x4 GM trucks and is compatible with 73-80 square body OEM hooks as well as Engineered Vintage Shackle brackets (sold separately)
The BBWM Kit includes:
(1) Left Frame reinforcement Bracket in black powder coat finish (this bracket bolts to inner frame, steering box, and front frame cross-member)
(1) Right Frame reinforcement Bracket in black powder coat finish
(1) Winch plate in black powder coat finish
Installation hardware
Not included:
Winch
Winch hardware
Winch fairlead
License plate relocation provision
Engineered Vintage LLC Shackle Brackets (available separately - see our other sales)
Shackles
Installation considerations
Inspect truck frame before installing this kit. Truck frame should be in good repair before installing. Frames that have rust holes, been cut, modified, drilled (other than for factory tow hooks or to mount BBWM) or that have any other damage should be professionally inspected and repaired before installation of the Behind Bumper Winch Mount kit. DO NOT INSTALL THE BBWM KIT ON TRUCKS WITH DAMAGED, CORRODED, BENT, OR HEAVILY MODIFIED FRAMES.
What winches fit?
With the variety of winches available on the market today, note that not all winch combinations may work. However, rest assured that the BBWM is designed to fit a wide variety of winches.
Installer should consider how their particular winch will be operated once installed (how to reach winch controls once winch is mounted) and check with their winch manufacturer on capability of their particular winch being mounted and operated upside down.
The BBWM Kit is designed to mount feet down style winches with the common 10” x 4.5” bolt pattern. For high mount configuration, the winch must fit between / inside frame rails of the truck (GM frame rails of this year are C shaped, with approx 24” between narrowest part, around 28” to inside of each frame rail, and about 4.5” in height. The low mount configuration allows wider winches to be mounted.
The BBWM Kit also has provisions to mount the older Badlands short drum winches (6K) with 6.5” x 4.5” pattern and also the WARN 6” x 4.5” bolt pattern used on their competition/short drum winches.
The BBWM is not compatible with feet forward style mounted winches (will NOT fit the WARN 8274, M12000, M15000, M16.5T nor other style winches with feet forward mounts)
