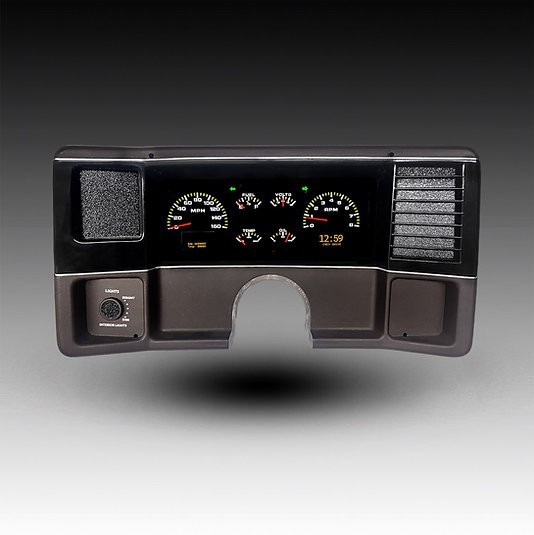

****(FACTORY BEZEL/HOUSING IS NOT INCLUDED--THAT PHOTO IS FOR DISPLAY PURPOSES. THE SALE IS FOR PANEL KIT ONLY)******
1978-1988 MonteCarlo/El Camino Analog Panel
SKU: AP9002
Gauges & Functions:
- Speedometer: Reads up to 160 MPH, including one-button calibration (works with any mechanical or electronic transmissions). GPS speedometer sender available separately.
- Tachometer: 0–8000 RPM in 100 RPM increments; selectable cylinder modes (1–16).
- Fuel Level Gauge: User programmable; works with Ford, GM, Chrysler, VDO, and aftermarket senders.
- Voltmeter: Adjustable calibration reads from 10.0V to 18.0V.
- Oil Pressure Gauge: Reads from 0–100 PSI.
- Water Temperature Gauge: Reads from 100–260 °F.
- Clock: Integrated digital readouts
- Adjustable calibration for all gauges
TFT Screen & Digital Features:
- 2” full-color TFT display provides customizable digital readouts from any gauge
- Odometer & trip meter
- High-speed recall
- 0–60 time & ¼ mile elapsed time
- Check engine, gear indicator (with optional kit), turn signals, high beam, parking brake
Accessories & Options:
- All required sending units and sensors included (standard GM speed sensor unless specified otherwise)
- Clear plexiglass, hardware, and installation instructions included
- Optional GPS Speedometer Sending Unit available
- Optional Gear Shift Indicator (automatic transmissions only)
BEZEL NOT INCLUDED
Optional add-ons:
GPS Speedometer Sending Unit (S9020): Accurate readings witha simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Useto bypass vehicle transmission or computer, pick up speed from satellite signal.
store Link -
Universal Gauge Harness (QCWH20): 8' harness includescolor-coded wires, quick-connects for easy removal, and all hardware needed forgauge wiring. Please note this does not plug into the factory harness.
store Link -
LS Swap Kit (8014LS): Required for GM LS engines,includes 12mm & 16mm bushings and a 10K-1/2-watt resistor to boost tachsignal.
store Link -
If you have an LS engine, then please be aware that youmay need adapters (metric to nonmetric) for our sending units. You may have toobtain them elsewhere separately, though they may have been included with yourengine kit, so you may already have them. Also, if your LS engine is 4 cylinders,then please send a note to seller letting us know, so that we can set thetachometer accordingly. The tachometer is programmable; you can set it yourselfif it comes set differently.
Intellitronix panels were featured on Stacey David's Gearz TV show! They come with a Lifetime Guarantee and are made in the USA!If you're not 100% completely satisfied, then just arrange to send it back within the return period:)If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently. Spruce up your great vehicle with an Intellitronix dash panel today!If you send an message, then please be aware that we generally work M-F 8 a.m. - 5 p.m. and it may take 2 business days or more to respond. Please be patient as we answer questions in the order in which they are received. Please read the listing carefully. Also, we do not know your specific individual vehicle, so you will need to consult a dealer or service manual for questions about your specific individual vehicle. For shipping information, lists tracking information automatically, so we cannot tell you any more than the order page will display automatically anyway, so please do not ask shipping questions unless your order has not shipped as agreed, which should not happen because we ship as agreed with . For example, if you order a 3 business days handling time item on the weekend, it counts as a Monday order, which means it must ship by Thursday (the third business day after the day the order was placed) at midnight, according to ; please do not message us on Tuesday asking where your item is when it is not scheduled to ship until Thursday, something you agreed to when you ordered the item. For technical matters, you should contact the manufacturer's technical support department directly, as we will just refer you to them anyway, so asking us technical questions is not a good use of your or our time. More info can also be found at the Intellitronix website.
