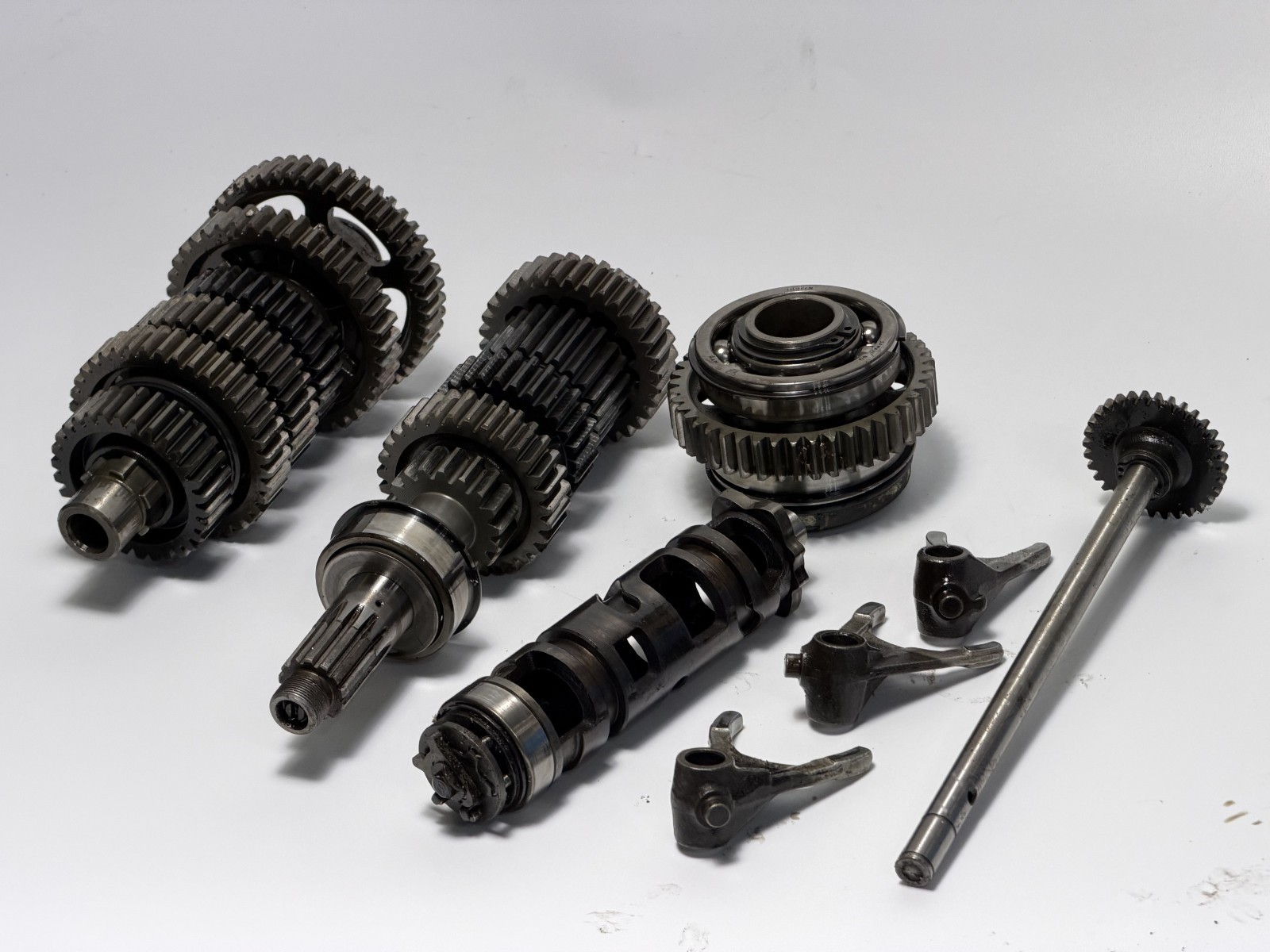

Complete OEM transmission and shifting component set removed from a 1981 Yamaha XS1100SH Eleven Special.
Includes the main/input shaft gear assembly, drive/output shaft gear assembly, middle drive gear components, shift cam/drum, all three shift forks, shift-fork guide shaft and additional transmission components shown in the photos.
Major OEM part numbers include:
- Main axle assembly: 2H7-17401-00-00
- Drive axle: 2H7-17421-01-00
- 2nd pinion gear: 2H7-17121-00-00
- 4th pinion gear: 2H7-17141-01-00
- 5th pinion gear: 2H7-17151-00-00
- 1st wheel gear: 2H7-17211-00-00
- 2nd wheel gear: 2H7-17221-01-00
- 3rd wheel gear: 2H7-17231-01-00
- 4th wheel gear: 2H7-17241-00-00
- 5th wheel gear: 2H7-17251-00-00
- Middle drive gear: 2H7-17582-00-00
- Middle driven gear: 2H7-17583-00-00
- Shift cam/drum assembly: 2H7-18540-00-00
- Shift fork #1: 2H7-18511-00-00
- Shift fork #2: 2H7-18512-00-00
- Shift fork #3: 2H7-18513-00-00
- Shift fork guide bar: 2H7-18531-01-00
