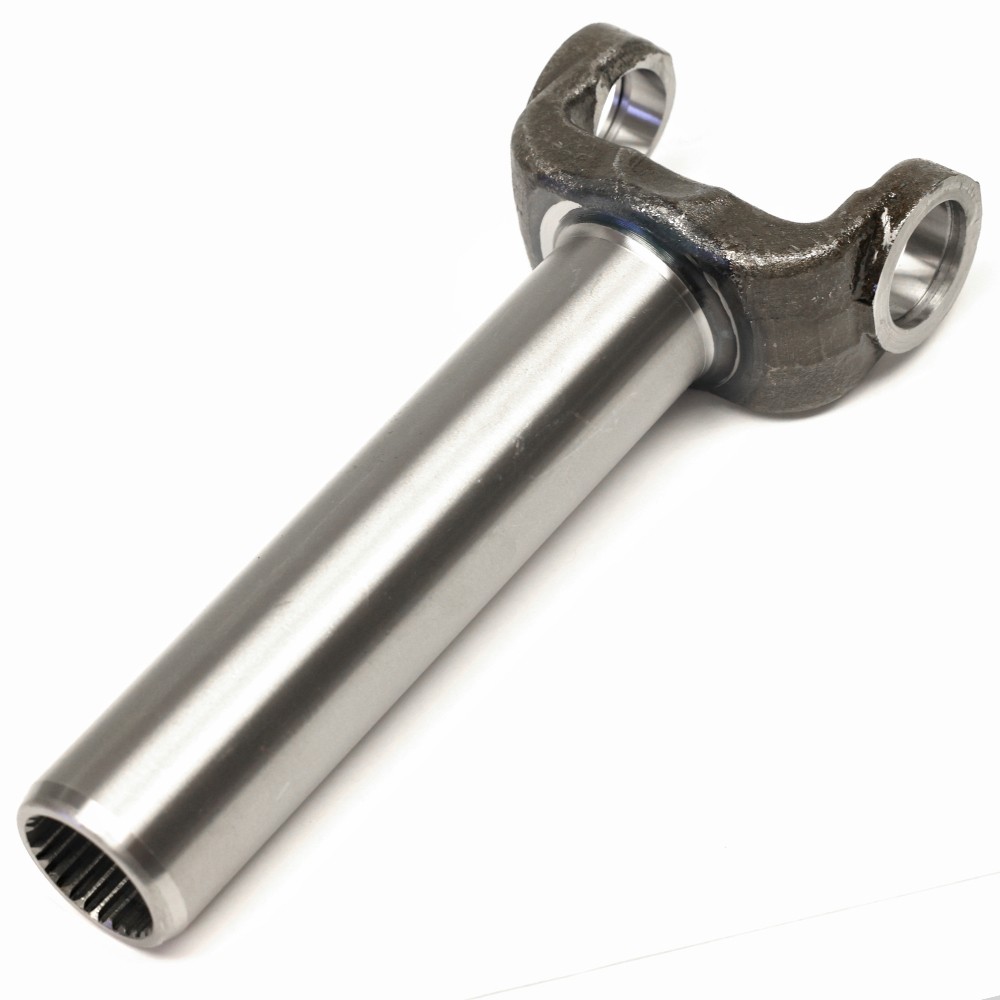

This is a modified by request 2-3-8001X that now has a center-line to end of 8" instead of the standard 5.469
Creating an extended version of the standard Transmission Yoke
Turbo GM 350 / TH350 / 700R4 Transmission Slip Yoke 2-3-6081X
Transmission Slip Yoke 1310 series, 1.176 x 26/27 spline,
Fits the following transmissions / Transfer cases: 1310 Series Only
Muncie 4-speed
Muncie M20
Muncie M21
4L60 & 4L60E
700R & 700R4
Powerglide
Borg Warner T-4, T-5, and T-10
Saginaw 3-Speed
Saginaw 4-Speed
Turbo Hydramatic / TH Turbo 350
Transmission Yoke Dimensions:
Ground Hub Dia: = 1.500"
Center of joint to end = 8.000"
U-joint cap diameter = 1.062"
U-joint width = 3.219"
Series 1310
Spline count = 26 based on 27
