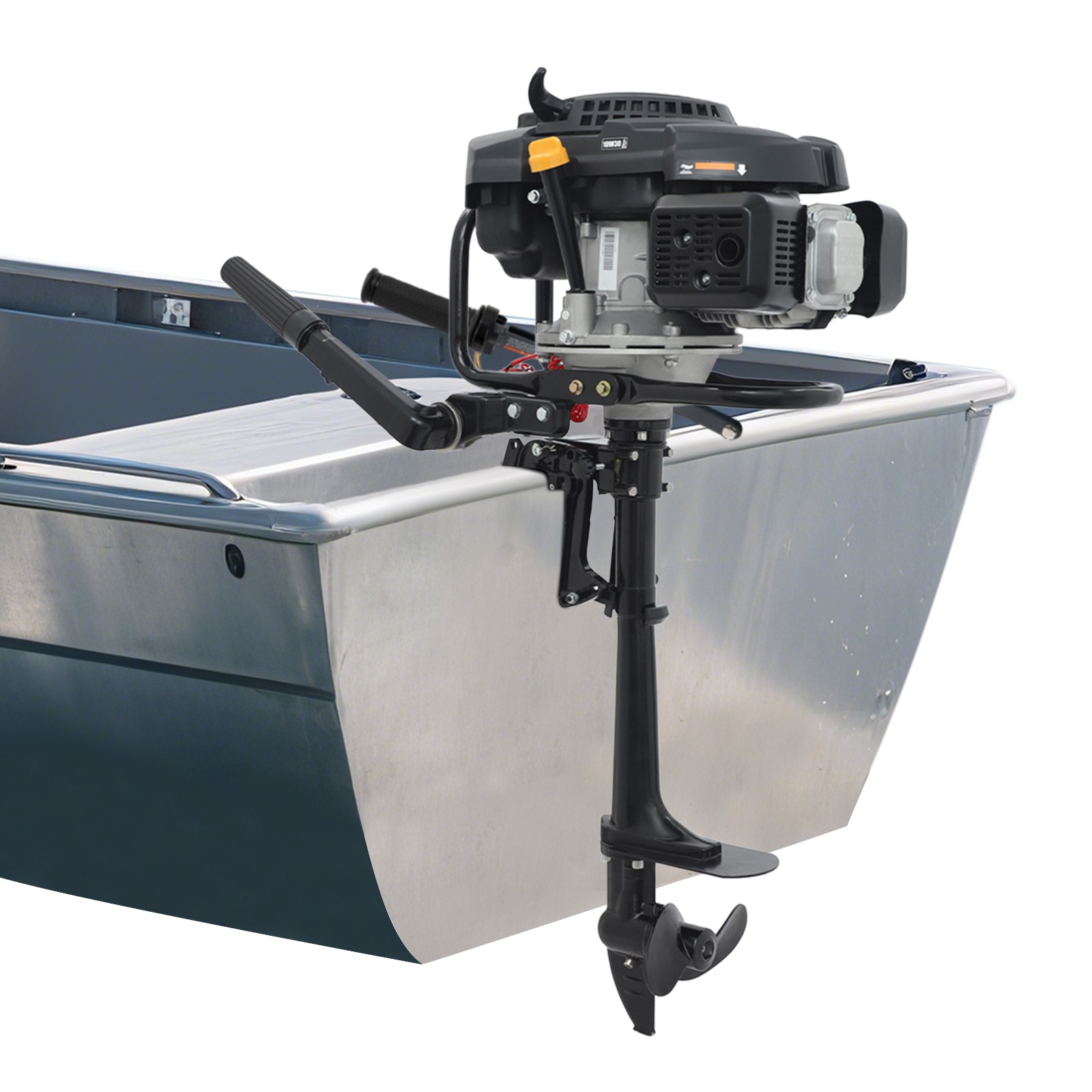

224cc 4 Stroke 9hp Outboard Motor Fishing Outboard Engine Boat Motor Air-Cooling
Application
It can be used for aquaculture, transportation, net fishing, bait fishing, outboard motor backup, and river cleaning and maintenance. It is suitable for inflatable boats, fishing boats, sailboats, small yachts, canoes, kayaks, flat-bottomed boats, rubber boats, and aluminum alloy boats ranging from 15 to 20 feet in length.
Specification
Color: Black
Material: Aluminum
Type: 4-Stroke, Single Cylinder, Air-cooled
Recommended Uses For Product: Outdoor
Mounting Type: Transom Mount
Starting Method: Manual Pull Start
Recommended Gasoline: #92 or Above
Maximum Torque: 9N.m
Displacement: 224cc
RPM: 3600rpm
Idle Speed: 1800 ±150 rpm
Max. Speed: 19km/11.81mile/h
Bore x Stroke: 72 x 55mm / 2.83 x 2.17in
Recommended Power Output: 4.2kW / 3600rpm
Maximum Output Power: 4.2kW (9.0hp)
Fuel Capacity: 1.3-1.5L/0.34-0.4Gal
Engine Oil Capacity: 0.6L/0.16Gal
Compression Ratio: 8.7:1
Spark Gap: 0.6-0.8mm
Exhaust Valve Clearance: 0.15-0.2mm
Propeller Diameter: 20cm/7.87in
Applicable Boat Size: 4.57-6m/15-20ft
Product Size: 46*36*105cm/18.11*14.17*41.34in
Package Size: 121*52*40cm/47.64*20.47*15.75in
Gross Weight: 24kg/52.9lbs
Net Weight: 20.6kg/45.42lbs
PackageIncluded
1* 4-stroke Outboard Motor
1* English Manual
Other Needed Accessories
Description
An excellent outboard motor is the very essence of a boat and can elevate your seafaring experience to an entirely new level of smoothness and safety. Its stable performance ensures that every voyage on the water is an unforgettable experience, replete with a sense of invigorating freedom and wide horizons.
Key Features
Built to Last: It is made of high-class aluminum, making it solid and rust-inhibiting, thus meeting your long-term use needs.
Strong Power:It delivers 9.0 horsepower with a 224cc displacement, providing robust power for your watercraft and ensuring smooth navigation. Additionally, it achieves a maximum speed of 11.81 miles per hour with low fuel consumption, delivering an efficient and powerful performance experience.
Thoughtful Design:It features tilt functionality, 360° rotation, CDI ignition design, and a front end that engages reverse gear through 180° rotation, allowing you to easily control and adjust your forward direction.
High Safety: It features an emergency stop switch and a safety lanyard, and the clutch prevents propeller rotation during idle operation to enhance safety. Additionally, the air-cooled design incorporates multiple ventilation holes for efficient heat dissipation, ensuring stable running and extended service life.
Ideal Gift: Thanks to its practicality, you can give it to your family and friends, as well as to people who enjoy sailing and fishing.
Details
Ergonomic Handle: It provides a comfortable and secure grip. When not in use, the handle can be folded for easy storage and transport.
Large Fuel Tank: The fuel tank has a large capacity of 0.34-0.4 gallons, which can help avoid adding fuel frequently.
Notes
- Please note that the driving speed will change due to different ship types, loads, and natural conditions.
- High-temperature exhaust components may cause severe burns. Please do not touch them.
- Please do not disassemble the host without authorization to avoid unnecessary damage. Please do not use it indoors or in enclosed spaces. Before long-term storage, the gasolinein the tank should be empty.The engine should be stored in a well-ventilated place and avoid direct exposure to sunlight.
- Before use, please prepare enough fuel, bring life jackets, and other necessary tools(not included), and check if the outboard engine is installed correctly.
- Please read the English manual carefully before use, paying particular attention to the safety instructions.
- Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
