Product Type: Electric Motor |
Replaces: MHP4005S 570-429-100 MHP4009 MHP4009S MHJ-2097 MHP-4009S 570-429 |
- Rotation: Counterclockwise |
- Volts: 24 |
- Source: Aftermarket
Over 30,000 aftermarket & original parts Show navigation Hide navigation
- Visit Store
- Newly Listed
- Ending Soon
- On Sale
- Follow Seller

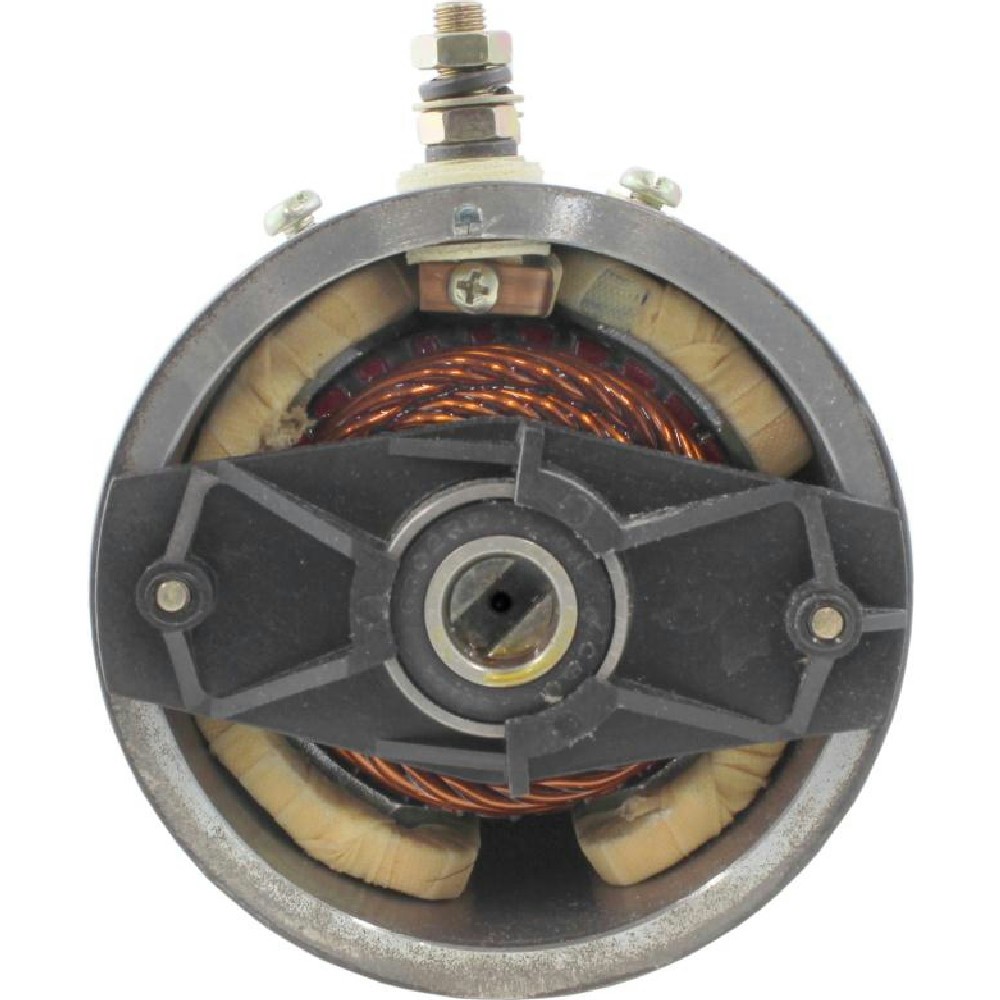

24V CCW Hydraulic Pump Motor Fits Raymond 570-429 570-429-100 Prestolite MHP4005
Replaces Part Numbers & Specifications
PRESTOLITE PART NUMBERS:
• 46-2073, 462073
• 46-0620, 460620
• MHP4005, MHP-4005
• MHP4005S, MHP-4005S
• MHP4009, MHP-4009
• MHP4009S, MHP-4009S RAYMOND PART NUMBERS:
• 570-429, 570429
• 570-429-100, 570429100 MONARCH / BUCHER HYDRAULICS PART NUMBERS:
• 8120, 08120
• M642-0102, M6420102 WESTERN MOTOR PART NUMBERS:
• W-9405, W9405 REFERENCE NUMBERS:
• 10S00038 SPECIFICATIONS:
• Type: DC hydraulic pump motor, wound field
• Voltage: 24 Volt DC
• Power: about 2.1 kW
• Rotation: Counterclockwise (CCW)
• Shaft: slotted
• Field case: 4.5 in (114 mm)
• Body length: about 6.75 in (172 mm)
• Terminals: two studs, 5/16 in x 24 thread, power and ground
• Ground: insulated case
• Weight: about 17 lb (7.8 kg)
• Condition: New
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new. ApplicationsShippingPaymentsPolicies
⚠️ 24 VOLT CCW PUMP MOTOR, SLOTTED SHAFT, 4.5 INCH CASE, NEW:
• 24V DC, counterclockwise (CCW), about 2.1 kW, wound field
• Slotted shaft, 4.5 in (114 mm) field case, two 5/16-24 terminal studs, insulated ground
• 12 volt motors of the same size fit the same power units and are a different part: match 24V and CCW MONARCH (BUCHER HYDRAULICS) DYNA-JACK DC POWER UNITS, 24 VDC MOTOR 08120:
• Monarch Dyna-Jack M-301 DC power unit, 24 volt motor 08120
• Monarch Dyna-Jack M-303 DC power unit, 24 volt motor 08120
• Monarch Dyna-Jack M-304 DC power unit, 24 volt motor 08120
• Monarch Dyna-Jack M-311 DC power unit, 24 volt motor 08120
• Monarch Dyna-Jack M-3519 DC power unit, 24 volt motor 08120
• Monarch Dyna-Jack M-3554 DC power unit, 24 volt motor 08120 MONARCH (BUCHER HYDRAULICS) DYNA-RAMIC DC POWER UNITS, 24 VDC MOTOR 08120:
• Monarch Dyna-Ramic M-615 DC power unit, 24 volt motor 08120
• Monarch Dyna-Ramic M-616 DC power unit, 24 volt motor 08120
• Monarch Dyna-Ramic M-628 DC power unit, 24 volt motor 08120
• Monarch Dyna-Ramic M-629 DC power unit, 24 volt motor 08120 BUCHER HYDRAULICS MODULAR DC POWER UNITS:
• Bucher M-3598 modular DC power unit, 24 volt motor 08120 RAYMOND LIFT TRUCKS (BY RAYMOND MOTOR NUMBER):
• Raymond lift trucks with Raymond hydraulic pump motor 570-429
• Raymond lift trucks with Raymond hydraulic pump motor 570-429-100
