Quality & Warranty
Lifetime Warranty
Dimensions& Material:
Bracket:
Features and Benefits:

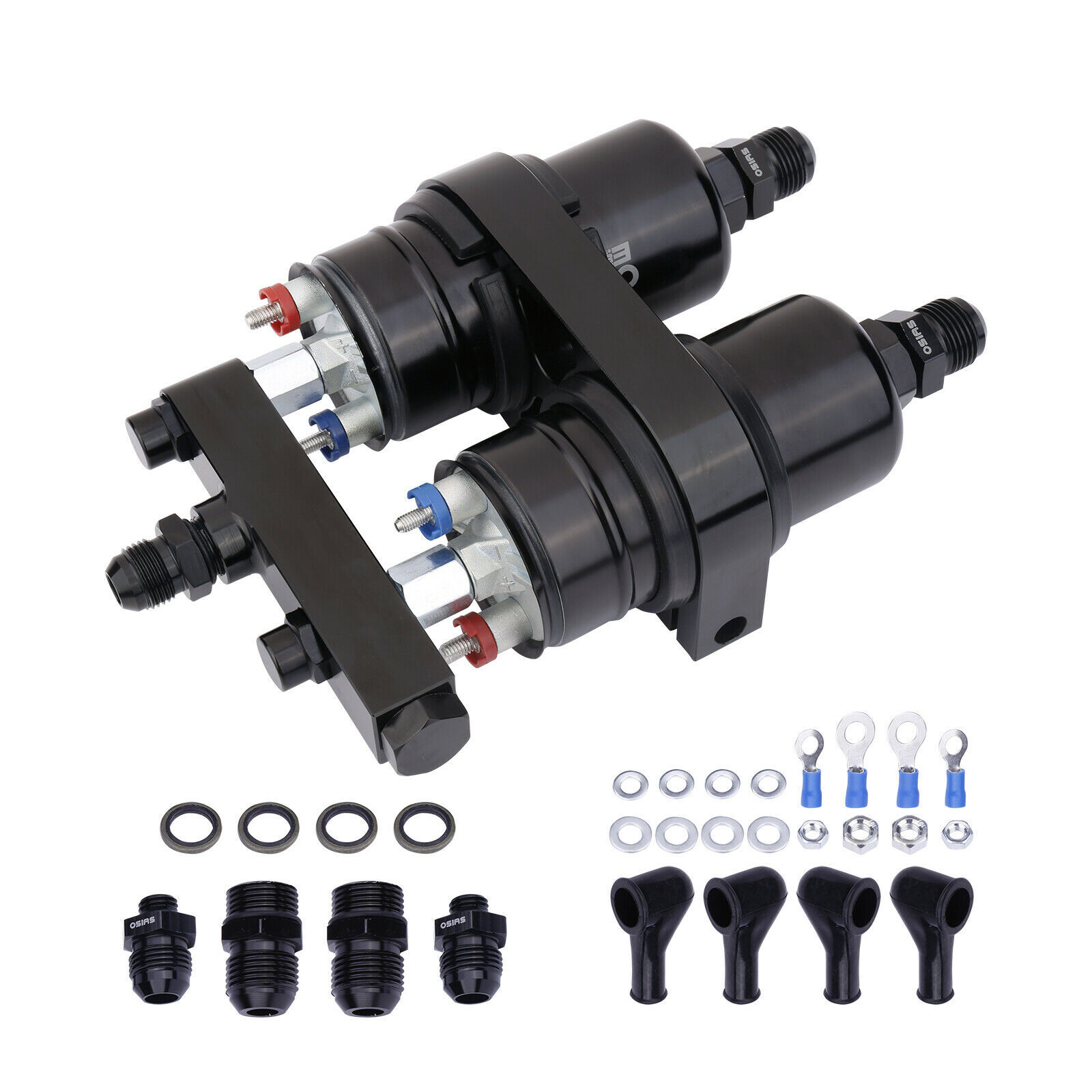

Manufactured using aluminum alloys, Suitable for clamping filters and pumps (Bosch 044, Sytec, Walbro).
Ideal for mounting twin fuel pumps side by side or a fuel pump and 1 fuel filter. With the rubber inserts
Anti-vibration rubber mounting to suit 60mm Fuel Pumps (Can also request 54mm insert during checkout/payment).
Stainless Steel Allen Head fastener.
Dimensions& Material:
Material: Made of high quality Alloy Aluminum
Standard Hose Max/Min Temperature:-40℃/ 220℃Pressure: 3BarsPump:
Technical Data
Operating Voltage:12V
Min Voltage:8V
Max Voltage:18V
Operating Pressure:75PSI(5.0Bar)
PRV Activation（0-130PSI)
Fow Rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V
Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V
Current:15A under 75PSI/12V
High Temperature Reduction: 30 LPH(8 GPH)
Operating temperature range: -20 ℃ - 90 ℃（-68 °F-194 °F)
Storage temperature range: -40 ℃- 70 ℃ (-104 °F-158 °F)
Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines
