Package Included:

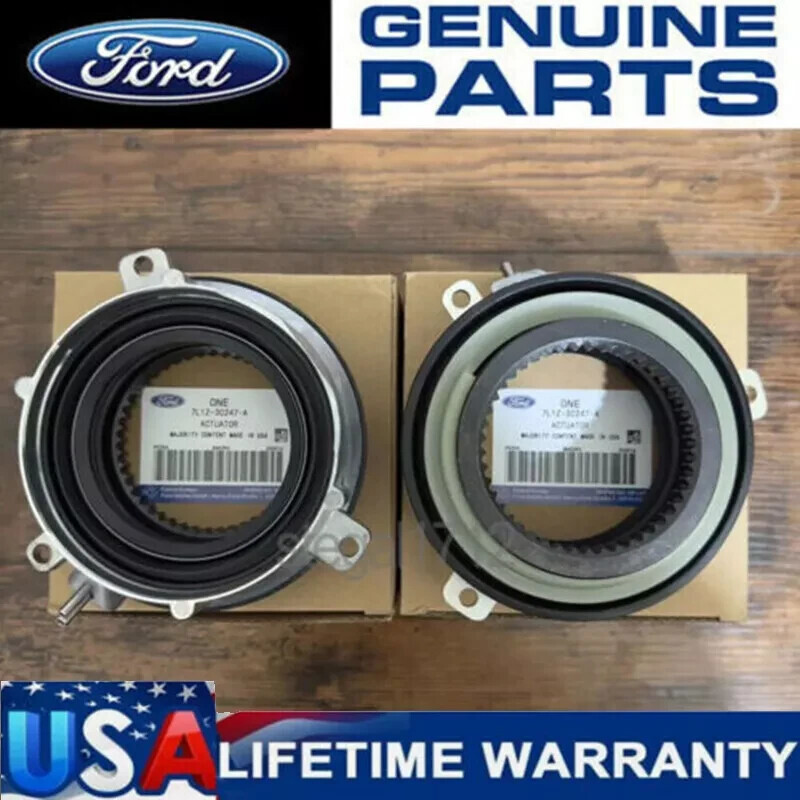

2 PCS of OEM FORD Auto-locking Hub Actuator
Fitment:
for Ford Expedition 4WD 2003-2015
for Ford Expedition AWD 2015
for Ford F-150 4WD 2004-2015
for Ford F-150 AWD 2008-2012
for Lincoln Mark LT 4WD 2006-2008
for Lincoln Mark LT AWD 2006-2014
for Lincoln Navigator 4WD 2003-2015
for Lincoln Navigator AWD 2005-2015
Place on Vehicle:Front Left(Driver) or Right (Passenger)Side
Replacement OEM Number:7L1Z-3C247-A / 7L1Z3C247A / 2L1Z3C247AA / 7L1Z3C247B / 1S12254 / 600-105 / SW9320 / 600-3608
Specifications:
Housing Material: Steel
Placement on Vehicles: Front Left(Driver) or Right (Passenger)Side
Type: Locking Hub Actuator, Front Differential Actuator
Installation instructions：
STEP 1: REMOVING THE HUB
· Remove the center cap using a pry bar or screwdriver
· Remove the snap ring from the hub
· Pull the hub out
· If the hub is stuck spray it with penetrating oil and let it sit for a while
· Hit it with a rubber mallet from the top and bottom until it loosens and pull it free
STEP 2: INSTALLING A NEW HUB
· Clean the inside of the hub with a wire brush
· If available use compressed air to spray out the debris
· Push the new hub into place
· Use a rubber mallet to help the O-ring seats
· Put the snap ring on
· Replace the center cap
