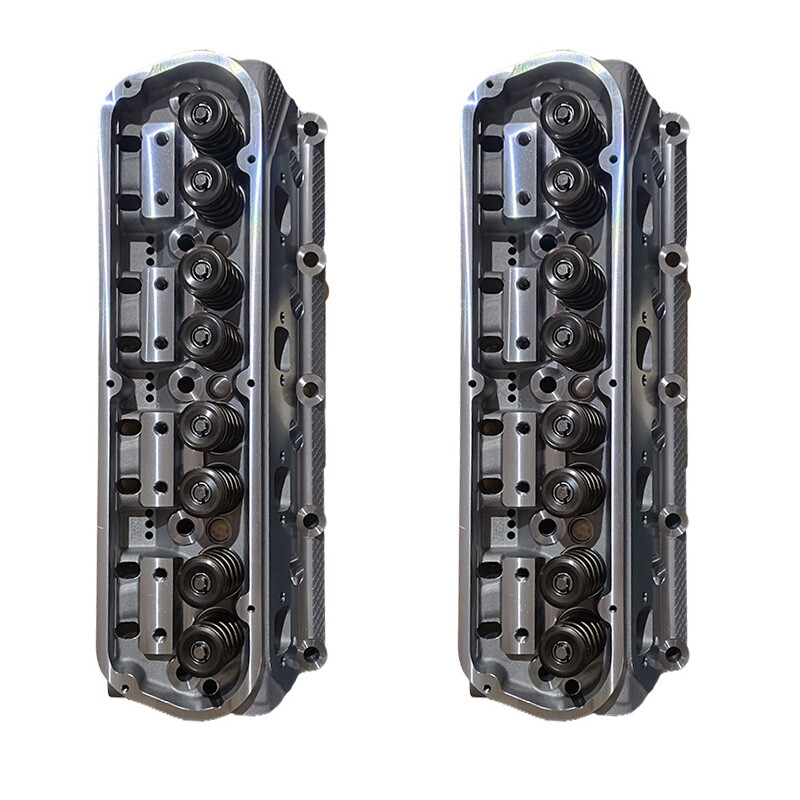

2X Full Aluminum Cylinder Heads For FORD SBF GT40 289 302 351W 175cc 2.02:
$649.99

Intake Runner Volume (cc): 175 cc
Exhaust Runner Volume (cc): n/a
CNC-Machined Intake Runner: No
CNC-Machined Combustion Chamber: No
CNC-Machined Exhaust Runner: No
Part Type: Cylinder Heads
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Intake Port Shape: RectangularIntake
Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Standard
Comp. Valve Job: No
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.020 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.550 in.
Outside Diameter of Outer Spring (in): 1.450 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20 deg.
Exhaust Valve Angle: 20 deg.
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No

Fitment ;

For SBF FORD GT40 289 302 351W 175cc 62cc 2.02/1.60Package included:
2x cylinder headsPls Note:
(1)It would be highly appreciated if you might contact us first once you have any problems concerning the items. And you can expect all the issues would be resolved ASAP!
(2) Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item.
(3) Professional Installation is Highly Recommended (No Instruction Included)
