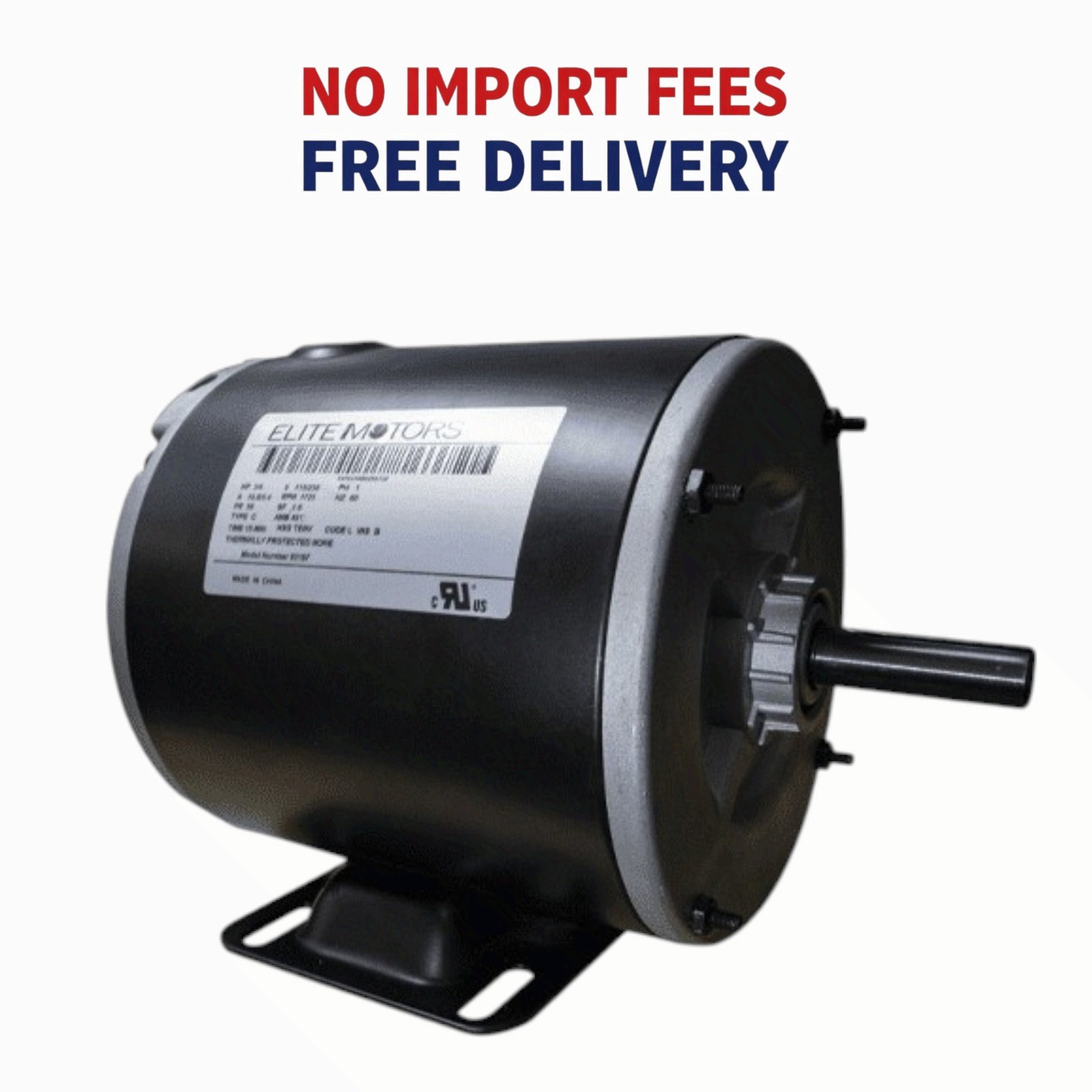

3/4 HP Boat Lift Motor TENV 56 Frame Dual Voltage 115V 230V w/ Resilient Base For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

3/4 HP Boat Lift Motor TENV 56 Frame Dual Voltage 115V 230V w/ Resilient Base:
$176.00

TENV keeps bugs out!
Dual Voltage for both 120 and 240 operation
Powerful, reliable, easy installation
Includes detailed wiring guides
Direct Replacement for AO smith, GE, Marathon and Leeson Boat Lift Motors

This motor will work with the following Hoists.

Boat Hoist USA: BH30 and BH35 gear plates, BHPWC belt drive hoist.
AMS Hefty Hoist: AMS 3000, AMS 3000 EBD.
ACE Labs: ACE 401.
American Power Hoist: APH 029.
-Defer to manufactures specs for individual hoist ratings-

General SpecificationsWeight:20.55 lbs.Individual Box Size:15 in. x 10 in. x 10 in.Product Length:10.75 in.Product Width:6.75 in.Product Height:8.50 in.Shaft Width:0.625 in.Shaft Length:2 in.Country of Origin:ChinaModel #:93197Retail SKU:79601Nameplate SpecificationsHP:0.75 (3/4)Voltage:Dual (115v / 230v)Phase:1Amps:10.8 (115v) / 5.4 (230v)RPM:1725Hz:60Frame:56Service Factor:1.0SFA:N/AType:CAMB:40°cTime:15 MINHSG:TENVCode:LInsulation:BThermally Protected:NoneUL:RecognizedUL Stamp:C-UL-USTechnical SpecificationsElectrical Type:Capacitor StartRotation:SelectiveShaft Type:NEMA 56Shaft Extension:1.88 in.Frame Length:7.1875 in.Mounting:Resilient Base – Extended StudsDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:Rolled SteelReplacement Capacitor:465 uFCapacitor SKU #:BH02247Keystock:IncludedKeystock Length:1 5/16 in.Keystock Width:3/16 in.
