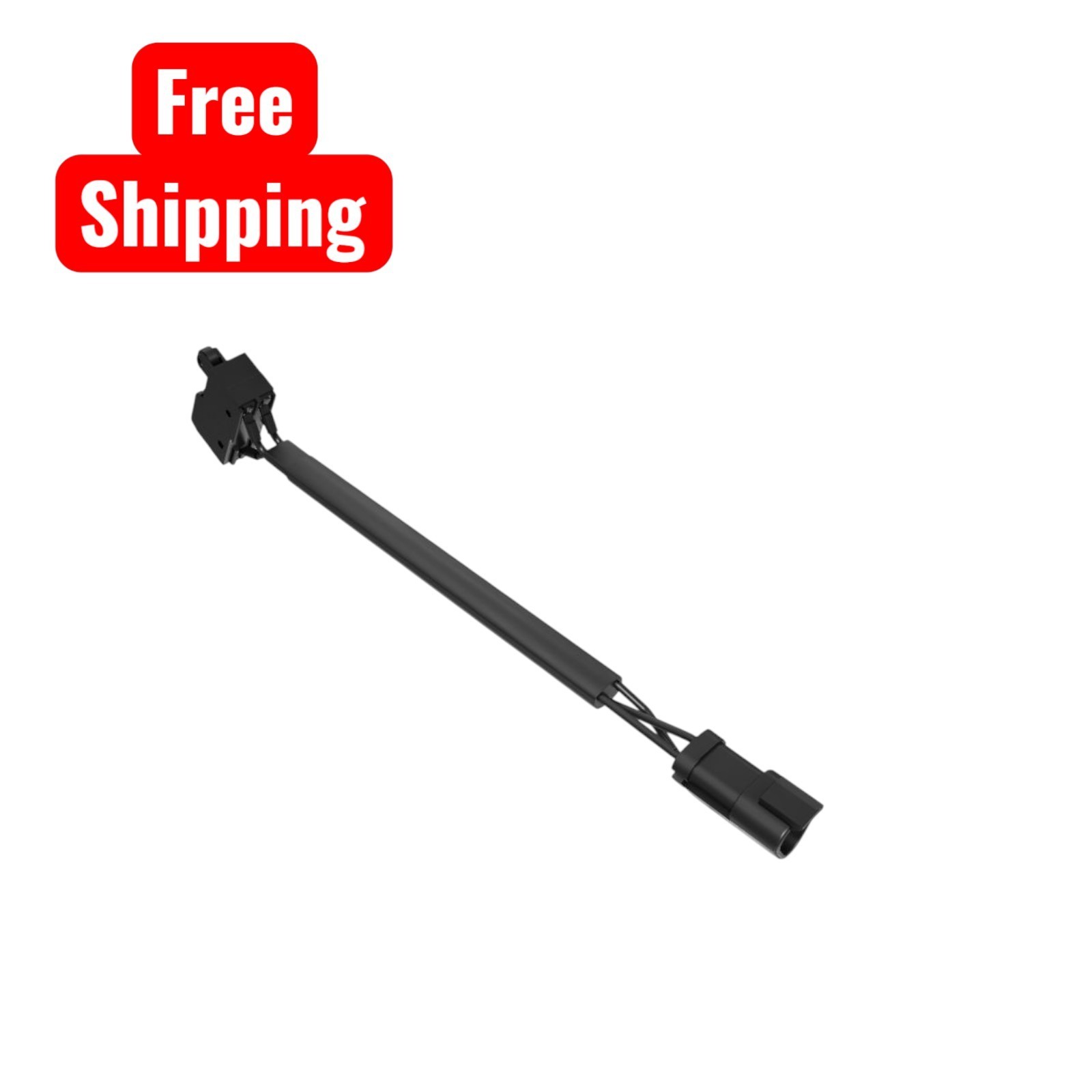

Genuine Caterpillar / CAT OEM 374-9690 limit switch assembly. Official CAT parts-book name: SWITCH AS-LIMIT — clutch and brake pedal limit switch (parts-book modifier: brake light). Brand-new CAT OEM stock — not aftermarket, not reman, not take-off.
This is the pedal-actuated limit switch used on Caterpillar clutch / brake pedal groups for stop / brake-light signaling when the pedal is depressed. It is an electrical limit switch — not a pedal assembly, not a position sensor, and not a transmission neutralizer switch.
Use this listing when your Caterpillar parts book, pedal group, or the switch marking shows 374-9690. Fitment is by exact Caterpillar part number and machine serial — not by “brake pedal switch” appearance alone.
SHIPPING UPGRADE OPTIONExpedited shipping is available for an extra charge.
Availability NoteWe often have more quantity available than shown on this listing.
Stock GuaranteeAll parts we sell are either brand new, fresh stock, or factory remanufactured OEM parts.Never used. Never take-off parts.We ship within 1 business day of your order.
Why Buy From UsNew stock guaranteeWe ship within 1 business dayOver 15 years diesel parts experienceFamily-owned business30-day free returns on unused parts
Why Choose This PartGenuine Caterpillar / CAT OEM 374-9690 SWITCH AS-LIMITOfficial CAT name: SWITCH AS-LIMIT (clutch and brake pedal / brake-light limit switch)Pedal-actuated electrical limit switch — not a full pedal group or position sensorCatalog-supported on Cat motor graders that use this PN in the clutch / brake pedal groupCorrect OEM replacement when your parts book or switch marking shows 374-9690Brand new OEM stock — never used, never take-off
Part Number + Key Product InfoPart Number: 374-9690Brand: Caterpillar (CAT OEM)Official CAT name: SWITCH AS-LIMITListing description: CAT Clutch and Brake Pedal Limit Switch (OEM Caterpillar)Parts-book modifier: Brake lightFunction: Pedal-actuated limit switch for clutch / brake pedal stop / brake-light circuitProduct type: Limit switch assembly (electrical)Parent application (catalog, words): Pedal group — brake, transmission & governor (clutch / brake pedal assemblies that use this switch)Supersession note: No replace / cancel chain found in the catalogs reviewed — still listed as a current serviceable switch. Verify your serial before ordering.Condition: Brand new OEMIncludes: 1 × limit switch assemblyDoes Not Include: Pedal group, connector pins / receptacle kit, wiring harness, position sensor, springs, or mounting hardware beyond what ships with the switch as suppliedNote: Sold as one switch. Confirm 374-9690 on the parts book or the switch coming off the machine before ordering.
Specs Table| Spec | Detail || Part Number | 374-9690 || Brand | Caterpillar OEM || OEM Description | SWITCH AS-LIMIT || Type | Clutch / brake pedal limit switch || Circuit role | Brake light (parts-book modifier) || System | Clutch / brake pedal electrical || Condition | New OEM || Supersession | None published (sources reviewed) |
Fitment DetailsCompatible with Caterpillar applications that use 374-9690. Always verify against your machine serial number and the official Caterpillar parts information before purchase or install.
Catalog-supported application family (verify your serial — not every unit below uses this PN):
• Cat motor graders — 12M, 12M 2, 12M 3, 12M 3 AWD• Cat motor graders — 14M, 16M• Cat motor graders — 120M, 120M 2• Cat motor graders — 140M, 140M 2, 140M 3, 140M 3 AWD• Cat motor graders — 160M, 160M 2, 160M 3, 160M 3 AWD
This switch is used in clutch / brake pedal groups (brake, transmission & governor pedal assemblies) that specify 374-9690. Fitment is by exact Caterpillar part number and serial — not by grader model name alone, and not by “brake light switch” appearance.
Fitment NoteATTENTION!!Always verify this part number against your machine serial number and the official Caterpillar parts information before ordering or installing.Match 374-9690 on the parts book or on the switch coming off the machine.Clutch / brake pedal limit switches and related pedal sensors are different parts — confirm identity before install.Incorrect orders due to assumed fitment without verification are the buyer’s responsibility.Returns on unused parts follow our 30-day unused-parts return policy.
