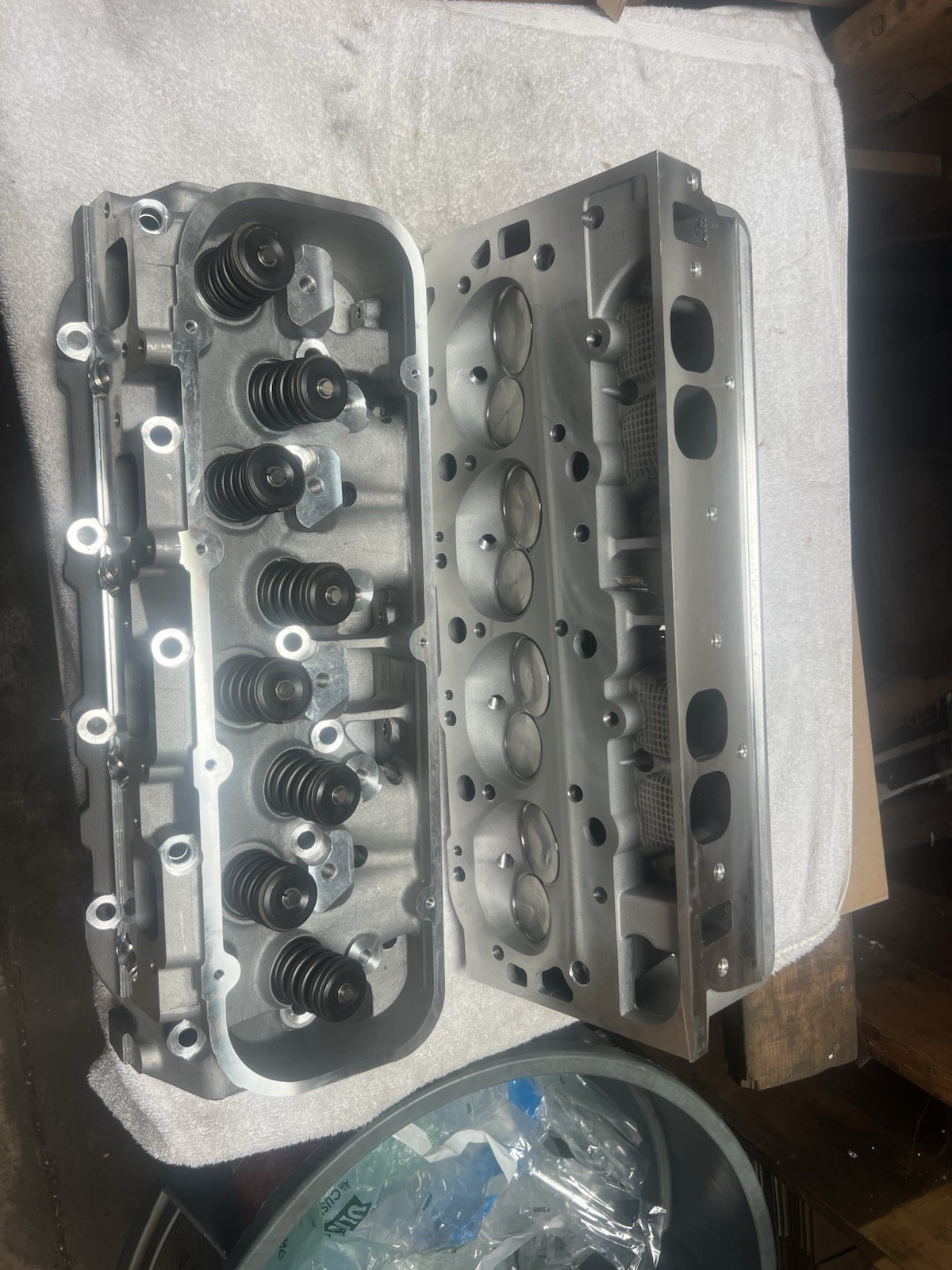

This sale is for a pair of brand new assembled aluminum big block Chevy cylinder heads. These are large oval port cylinder heads with open style 115cc combustion chambers and 300cc intake runners. In addition to the nearly 80lb weight savings these heads offer over factory cast iron heads, they will yield about a 40hp gain over stock GM 990 castings. In unported form these heads will support 500+ horsepower on pump gas. If you are looking for a race grade head that is comparable to Edelbrock, Dart, Trick Flow, Pro Comp, or AFR at a fraction of the price look no farther then these.These heads are cnc machined and assembled by us.These heads work great on Caruretor and fuel injection engines and no special gaskets needed.The features of these are as follows:
- Heads are pressure cast from premium quality 2024 aluminum alloy. Unlike many inexpensive aftermarket heads that are sand cast these are cast in steel permanent type molds. This offers a stronger more durable cylinder head with consistent thickness throughout. These castings incorporate .400 thick deck surfaces for maximum head gasket longevity.
- After machining the heads have magneese bronze valve guides installed along with stellite valve seats. This is the best available combination for street use with unleaded gas. If you are racing the stellite valve seats offer much longer seat life then most competers ductile iron valve seats
- Both the intake and the exhaust incorperate three angle valve seats to maximise both low and medium lift flow.
- The heads come fully assembled with 2.25 stainless steel intake valves and 1.88 exhaust valves. These valves incoperate swril polished heads and undercut stems. In addition they have smaller 11/32 stems and are .100 longer then stock GM valves.
- Valve springs installed on these heads have 135lbs closed pressure and will accomadate .660 lift. These will work fine with just about any hydraulic or solid flat tappet camshaft.
- Finishing off the heads are chromoly valve spring retainers and viton positive style valve stem seals.
We also offer the correct needed parts for these heads with sale numbers. All the following parts work out of box with my heads!!
142469376690correct length 3/8 push rods for non roller cams142469376696correct 3/8 guide plates232439450924correct length 12 point cyclinder head bolts.142469379712correct 1.7 ratio stainless steel full roller rockers with poly locks. 1.72 and 1.73 same.372038106244correct 7/16 .200 longer rocker studs144343718313 correct length 3/8 moly push rods for roller cams300ccOval Port Cylinder Head-Flow Chart cfm @28" H2Ovalve int.1632352893303463603683751.880 heads will accept all factory bracketery and accessories designed for [phone removed by ] chevy engines. Standard headers and rectangle port intakes will fit fine. Over the past 2 years we have sold over 600 sets of these heads. During this time we have had a great deal of response from our customers, these heads have proven to be street tough and race durable. If you are looking to build a 600+ horsepower engine then the are the beat for the money!!!If you have questions feel free to e-mail. Thanks for looking.
Please feel free to ask any and all questions directly thru messaging system, I will answer all questions, I want you happy!!. I cant include personal contact information its against policy,After purchase on we can exchange contact information as needed.
