463.DS2267 Drag Link 24.000in C to C Chevrolet/GM 15123671 15096527:
$229.95

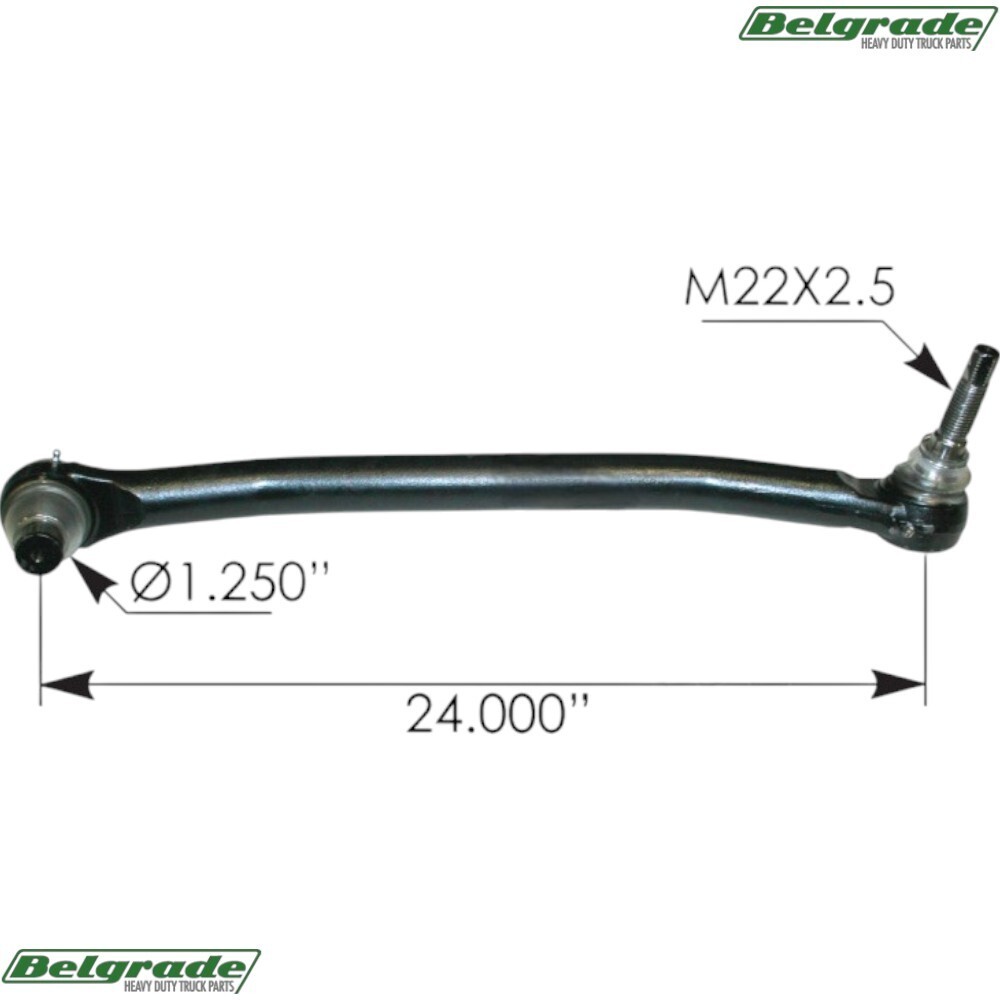

463.DS2267 - Drag Link 24.000in C to C Chevrolet/GM
C6,7,8 10000 # FRT AXLFM6,F/AXL 5450KG 12,000#FS7 2003-2009 2003 - 2003. 1012/14,600 LB CAPACITY AXLES FL3,FM6,FS7 ISUZU H-Series 05-08
Applications: Chevrolet/GM
OEM Reference: 15096527, 15123671, Chevrolet/GM
C to C: 24.000”
C to C: (B)
Type: P-N
E to E (A): 14.500”
Shaft Dia. (A) 1.625”
Male/Female: Male
Shaft Side Thread (E): 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B): 0.964”
Taper Pin Major Dia.-1 (C): 1.106”
Taper Pin Length-1 (D): 1.134”
Taper Pin Thread-1 (E): M22-2.5
Pin Width (F): 1.250”
Pin Length (G): 2.000”
Pin Slot (H): 0.500”
