WHAT IS THIS ITEM:

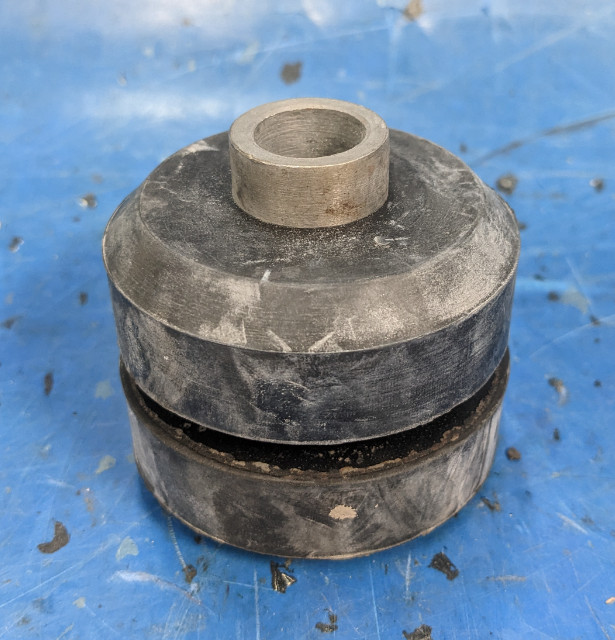

5/8” Three Piece Rubber Mount Isolator Ebco 2449-055 Lord CB-2203-3 Blue Bird 0096481
DETAILS:
Rubber vibration Isolators - Mounts are designed for applications involving severe dynamic forces in both the static load direction and the rebound direction. Travel in both directions is limited by rubber compression, which provides snubbing.
- MAX AXIAL DEFLECTION: 0.10”, 2.54 mm
- MAX AXIAL LOAD: 450 LBS, 2002 N
- BOLT: ⅝”, GRADE 5, M16, CLASS 9.8
- TIGHTENING TORQUE: 150 FT-LB, 203 N-m
- CLAMP LOAD: 14408 LB, 64090 N
- OD: 2.55”, 64.8 mm
- ID: 0.65” 16.5 mm
- 450 LB LOAD, 4500 LB STIFFNESS
These were emanufactured for Blue Bird Bus company. They appear to be the same/similar to the Lord CB-2203-3 and the standard Ebco 2449-72 which you can view on the Ebco website as a 2449-X2. Above are the specs from their page on this number and below are the measurements that we took ourselves with a digital micrometer.
#1 Rubber Insulator Half:
64.262mm - OD
24.13mm - ID
22.86mm - Thick
Tapered molded chamfer on one side
#2 Rubber Insulator Half:
64.262mm - OD
24.13mm - ID
28.956mm - OAL Thick
With a \"step down\" to separate the two mounts in assembly. Tapered chamfer on one side with \"step down\" on the side away from chamfer.
Step Down:
37.846mm - OD
24.13mm - ID
6.604mm - Thick
1) Metal Sleeve:
23.876mm - OD
16.51mm - ID
61.976mm - OAL
WHAT CONDITION IS IT IN:
BRAND NEW
WHAT BRAND IS IT:
EBCO, INC.
MPN - PART NUMBER - SKU:
2449-045
CROSS REFERENCE - INTERCHANGE - CROSSOVER - COMPATIBLE WITH:
Blue Bird 10019881, 0096481
Lord CB-2203-3
2449-X2
2449-72
