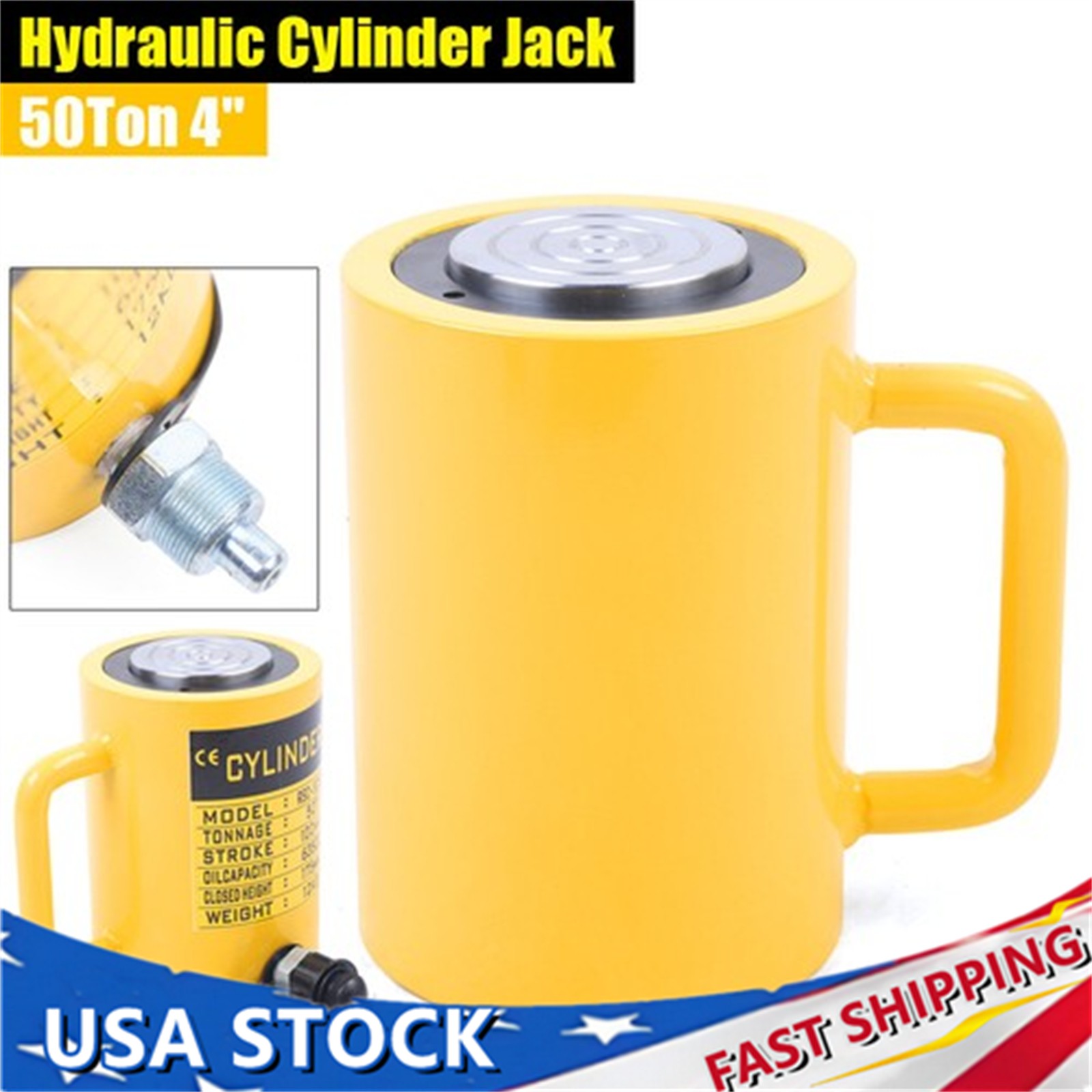

50 Ton Hydraulic Lifting Cylinder 4\" (100 mm) Stroke Jack Ram 635cc Pressure 50T For Sale - New and Used

SpecificationMount Type: FreestandingAssembly Required: NoStyle: ModernShape: CylinderColor: Yellow   Material: 45# Steel, RubberProcess: Chrome-plated, Heat-treatedTonnage: 50T/110,231lbsStroke: 100mm/4inOutside Diameter: 128mm/5.03inProduct Height: 163mm/6.41inPackage Size: 23*22*20cm/9.06*8.66*7.87inGross Weight: 14.6kg/32.19lbsNet Weight: 13.87kg/30.58lbs Package Included1* Hydraulic Cylinder Jack50-TON HYDRAULIC RAM JACK porta power type cylinder lifting jacks rams

Description

This is a powerful hydraulic cylinder jack with a lifting capacity of 110,231 lbs. Constructed from high-grade 45# steel, it offers excellent strength and durability to lift a variety of heavy objects quickly and safely. Whether it\'s heavy machinery or large construction materials, it handles it with ease. In addition, the compact design allows you to easily move and store it in different locations.

Key Features

Last for Years: Constructed of premium 45# steel that is chrome-plated and heat-treated, it is wear-resistant, impact-resistant, deformation-resistant, and rugged to ensure long life and excellent performance.

Powerful Function: With a powerful lifting capacity of 110,231 pounds, it has a 4-inch stroke, making it easy to lift heavy machinery or large cargo without jamming, ensuring safety and stability.

Practical Tool:It makes lifting heavy objects easier. You can also pair it with CP-700A/CP-700-2 and other manual hydraulic pumps with an oil storage capacity of 0.26 gallons or more and adapt them with the same quick couplings to improve efficiency.

Flexible Use:This product\'s compact design, at only 6.41 inches in height and 5.03 inches in outside diameter, is suitable for various kinds of tight spaces and can be used at any angle as long as the contact surface is hard and flat.

Thoughtful Design:It has a built-in extension spring, and the piston can be automatically retracted and reset after the pressure is relieved. The threaded ZG3/8\'\' quick coupling ensures a tight connection between the hydraulic pump(not included) and the jack.

Easy to Clean: The surface of the product is smooth and does not easily stick stains, so you just need to wipe it with a damp cloth (not included).

Strong Sealing: The built-in premium rubber sealing ring can effectively prevent oil leakage and impurities from entering, ensuring good sealing performance of the cylinder.

Protective Package: To prevent the product from being damaged during transportation, we packed it with black foam to protect your products to the maximum extent possible.

Customer Service:We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Portable Handle:It is convenient for you to move and carry the product easily to meet the needs of different scenarios.

Smooth Surface: The hydraulic cylinder has a smooth surface with circular textures, which can provide reliable support when working.

Dust Cap: The dust cap at the connecting head can effectively prevent dust from entering the inside of the jack and keep it inside clean, which greatly extends the service life.

Application

It is commonly used in electric power, chemical, steel, bridge, machinery, and other industries, and is a good helper for assemblers, fabricators, welders, and auto body and frame shops. This product can be operated with a hand pump, foot pump, or electric pump as long as the fittings can be matched, the oil storage capacity is sufficient, and the pressure can reach 70 MPa.

Specification

Mount Type: Freestanding

Assembly Required: No

Style: Modern

Shape: Cylinder

Color: Yellow

Material: 45# Steel, Rubber

Process: Chrome-plated, Heat-treated

Tonnage: 50T/110,231lbs

Stroke: 100mm/4in

Outside Diameter: 128mm/5.03in

Product Height: 163mm/6.41in

Package Size: 23*22*20cm/9.06*8.66*7.87in

Gross Weight: 14.6kg/32.19lbs

Net Weight: 13.87kg/30.58lbs

Package Included

1* Hydraulic Cylinder Jack

Notes

• Please check the style and size before purchasing.
• Pay attention to the stroke when using the jack, as exceeding it may damage the tool.
• Please note that the contact surface between the top of the jack piston and the bottom of the cylinder must be flat and hard.
• After lifting a heavy object with a jack, it should be firmly supported with support promptly. It is strictly prohibited to use the jack as a single support to ensure personal safety and good performance of the jack.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
