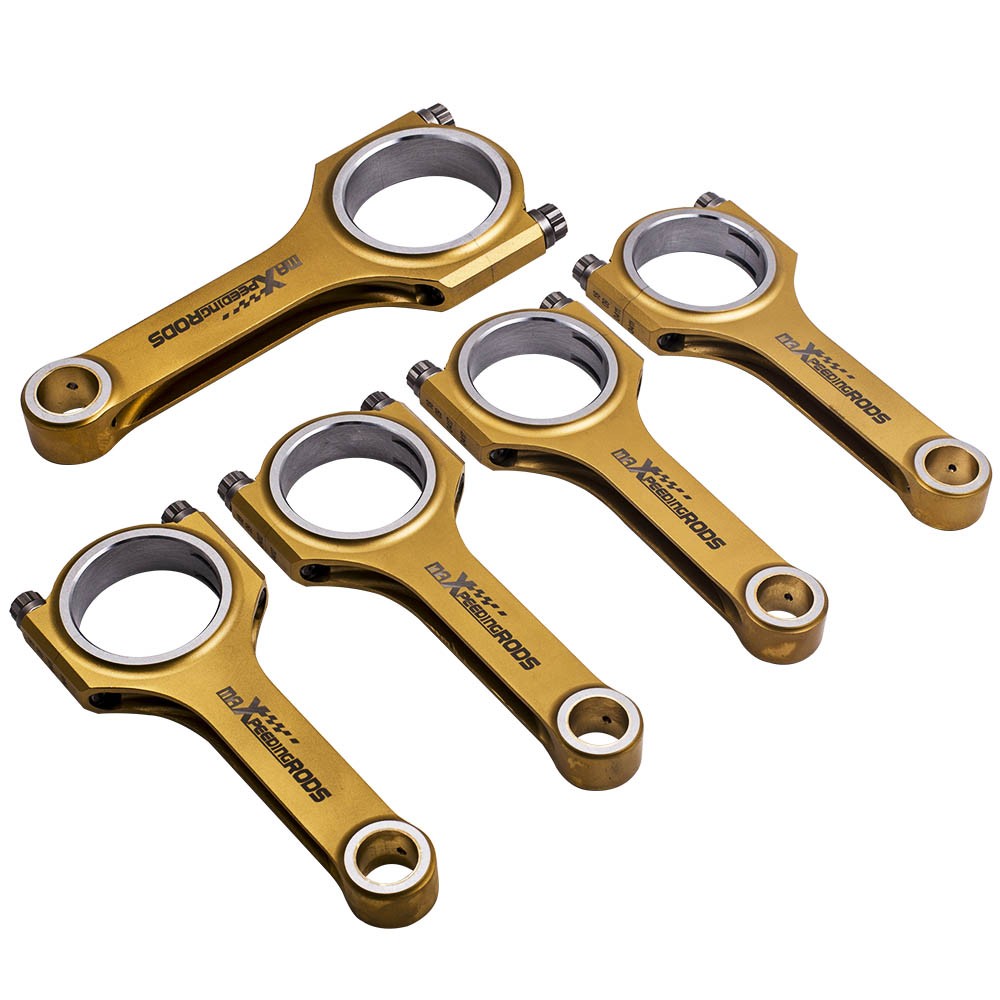

5x Titanizing 4340 Steel Connecting Rods+ARP2000 Bolts For Volvo 850 C70 5.492"
All modifications must be installed by licensed mechanics and in compliance with your local modification
ARP Bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Titanizing Forged 4340 Steel
Titanizing has excellent corrosion resistance, andprolongs the service life of the parts.
H-Beam Design
H-Beam helps improve stiffness, reduce stress risers and weight.
Horsepower Rating
Advertised horsepower rating: 800HP+
High Precision Control
Balanced within:+/- 1 gram per rod,
Bores finished to:+/- .005mm or .0002".
ARP 2000 Bolts
With Standard Original ARP 2000 Bolts.
Upgradable ARP L19 Bolts
Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.
Application
For Volvo 850 C70 V70 S60 S70 2.3 T5 R AWD B5234T For Volvo 850 LS 1991-1997 Saloon 2.3 T5, 2.3 T5-R, 2.3 Turbo R For Volvo 850 LW 1992-1997 Estate 2.3 T5, 2.3 T5-R, 2.3 Turbo R For Volvo C70 I MK I 1997-2005 Coupe 2.3 T-5, 2.3 T5 For Volvo C70 I MK I 1997-2005 Convertible 2.3 T-5, 2.3 T5 For Volvo S60 I MK I 2000-2010 Saloon 2.3 T5, T5 For Volvo S70 LS 1996-2000 Saloon 2.3, 2.3 T5 AWD For Volvo V70 P80_ 1995-2000 Estate 2.3 Turbo, 2.3 T-5, 2.3 AWD, 2.3 T-5 AWD For Volvo V70 MK II 1999-2008 Estate 2.3, 2.3 T5 Pin Type Floating Pin Piston Dimension
Center to center length 139.5mm/5.492" Big end diameter 53mm/2.087" Small end diameter 23mm/0.906" Big end width 25.7mm/1.012" Small end width 25.7mm/1.012" Specification
Quantity 5 Pieces as showing in picture Bolts Including ARP 2000 bolts Bolts Size ARP 2000 3/8" bolts Bores finished to +/- .005mm or .0002" Balanced to within +/- 1 g per rod Advertised Horsepower Rating 800HP+ Top acceleration 9000rpm Strength of the fastening PSI 220,000/230,000 PSI Torque: 48ft ≈ 65 NM Warranty 2 years warranty for any manufacturing defect Package size 28CM*21CM*14CM Feature
The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.
1. Titanizing can further improve the bending strength of the product;
2. Titanizing will not affect the weight of the connecting rods;
3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
