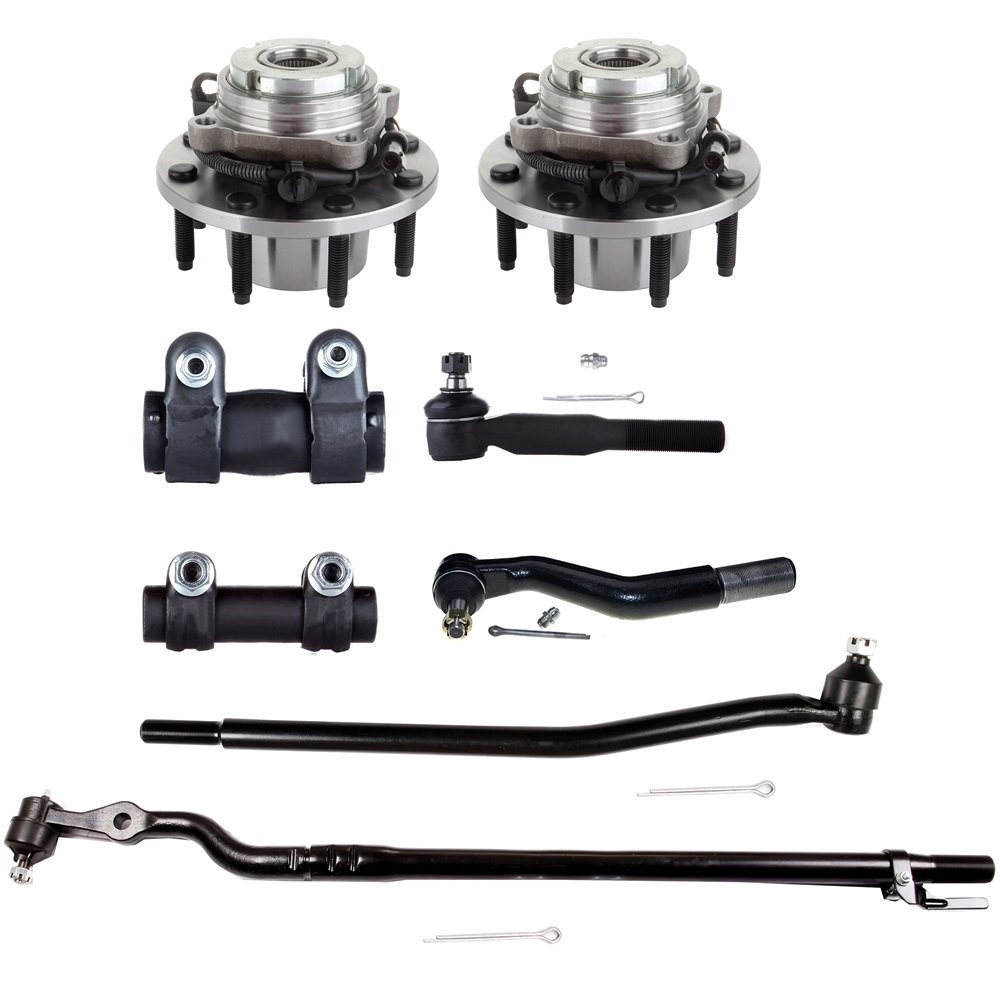

8x Front Steering Tie Rod End Link Wheel Bearning Hub Fits Ford Excursion 00-02 For Sale - New and Used

Fit For:

For 2000-2002 Ford ExcursionFor 1999-2004 Ford F-250 Super DutyFor 1999-2004 Ford F-350 Super Duty

Package Includes:

2x Front Wheel Hub Bearing -5150201x Front Outer Tie Rod End-At Pitman Arm -ES3427T1x Front Outer Tie Rod End-Driver Side -ES34231x Front Inner Tie Rod End-At Right Hand Connecting Tie Rod -DS14381x Tie Rod Adjusting Sleeve-Passenger Side At Pitman Arm-2nd Design -ES3426S1x Front Outer Connecting Tie Rod End-Passenger Side -DS14391x Tie Rod Adjusting Sleeve-Driver Side -ES3422S

Fault judgment:

8x Front Steering Tie Rod End Link Wheel Bearning Hub Fits Ford Excursion 00-02

Fit For:

For 2000-2002 Ford Excursion
For 1999-2004 Ford F-250 Super Duty
For 1999-2004 Ford F-350 Super Duty

Package Includes:

2x Front Wheel Hub Bearing -515020
1x Front Outer Tie Rod End-At Pitman Arm -ES3427T
1x Front Outer Tie Rod End-Driver Side -ES3423
1x Front Inner Tie Rod End-At Right Hand Connecting Tie Rod -DS1438
1x Tie Rod Adjusting Sleeve-Passenger Side At Pitman Arm-2nd Design -ES3426S
1x Front Outer Connecting Tie Rod End-Passenger Side -DS1439
1x Tie Rod Adjusting Sleeve-Driver Side -ES3422S

Fault judgment:

• When encountering a limp road, the vibration is strong, and it is shaking up and down, and the body is twisted.
• When the car is driving, every time it vibrates up and down, the suspension device makes a "guckling" noise
• If there is a problem with the front wheel suspension system, the direction will deviate to one side, and continuous correction is required to maintain normal driving.

​

A normal shock absorber will generate heat when it is working. If it does not generate heat or if oil leaks from the shock absorber, it means that the shock absorber has been damaged. During the inspection, the condition of the shock absorber rubber sleeve should also be checked. If it is found to be damaged, it should be replaced together with the shock absorber in time. In addition, it may be that the fastening bolts are loose.

Know how to replace the swag bar link:

• step 1:Engage the parking brake. Set the parking brake on the vehicle and set the wheel block on one of the tires you will not remove.
• step 2:After the tire screws are loosened, jack up the jack.
• step 3:Remove tires. At this time, completely remove the wheel nut, and then remove the tire from the vehicle.
• step 4:Find the rocker link to be replaced. The anti-roll bar is usually located at the front of the car and is bolted to the suspension of the car.
• step 5:Remove the lug nut. After removing the top nut, remove the lower nut. After removing the two nuts, pick up the pry bar and apply pressure on the rocker near the connecting rod.
• step 6:Make sure that the new joystick link matches the old link. Use a pry bar to apply downward pressure on the rocker, and then install the new link to the position of the old link. Make sure that the installation direction is correct, as the two ends look very similar.
• step 7:After the link is in place, install the nut and tighten it to the appropriate torque specification.
• step 8:Put the tires back into the vehicle. Tighten the lug nuts as much as possible, but do not over tighten them. Excessive pressure on the car may knock it off the jack bracket.
• step 9:Tighten the lug nut. After the vehicle returns to the ground, tighten the lug nut to the appropriate torque specification.If you want to change multiple anti-roll bar links, just repeat these steps on the other side.

Know how to replace the ball joint:

• step 1: Getting Started

​ Engage the parking brake. Set the parking brake on the vehicle and set the wheel block on one of the tires you will not remove. After the tire screws are loosened, jack up the jack.At this time, completely remove the wheel nut, and then remove the tire from the vehicle.

• step 2: Removing the Old Ball Joint

1. ​Pop loose the ball joint. You will most likely need to use a hammer and a special tool called a “pickle fork” or tie rod separator to get enough leverage to maneuver.
2. With the wrench, remove the largest nut from the joint, replace with the new nut, and then drive the pickle fork between the control arm and the steering knuckle. And before hammering away,you will need to put the castellated nut on.
3. Remove the allen bolts and slide the control arm free. Loosen bolts or drill out rivets holding the ball joint in place, and slide out the ball joint.

• step 3: Installing the New Joint

1. ​Guide the new joint through the knuckle hole. Slide the new rubber boot over the ball joint’s stud and guide the new ball joint back up through the steering knuckle hole, where it came from.
2. Bolt the joint into place using the hardware included.
3. Torque the bolts to the proper specifications.Generally, the specs will be about 44 pounds per foot on the screws and around 80 for other bolts. Always defer to the owner's manual for accurate numbers, however.
4. Screw in the new grease fitting and pump grease into the
5. Please be sure to check carefully whether the part is suitable for your car model before placing an order.
6. If you have any questions after receiving the goods, please contact us in time, we will give you a satisfactory answer.

Item SpecificsBrand everpartstorecsManufacturer Part Number 13607983Manufacturer Warranty 10 YearsUniversal Fitment NoPlacement on Vehicle Front Outer Left Inner RightType Tie Rod EndOE/OEM Part Number rods ends,car tie rod end replacementSuperseded Part Number wheel hub bearing assembly,hubs bearingsItems Included Mounting HardwarePerformance Part NoBolt Circle Diameter 6.62 In
Shipping

tellusthenewaddresswithin 12 hoursafterpayment

(nodeliverytoremoteareas).

Anypayments accepted by also can be accepted.

Service

within30days.

Do check the compatible chart or contact us if you have any quetion in compatibilities before ordering the items.
