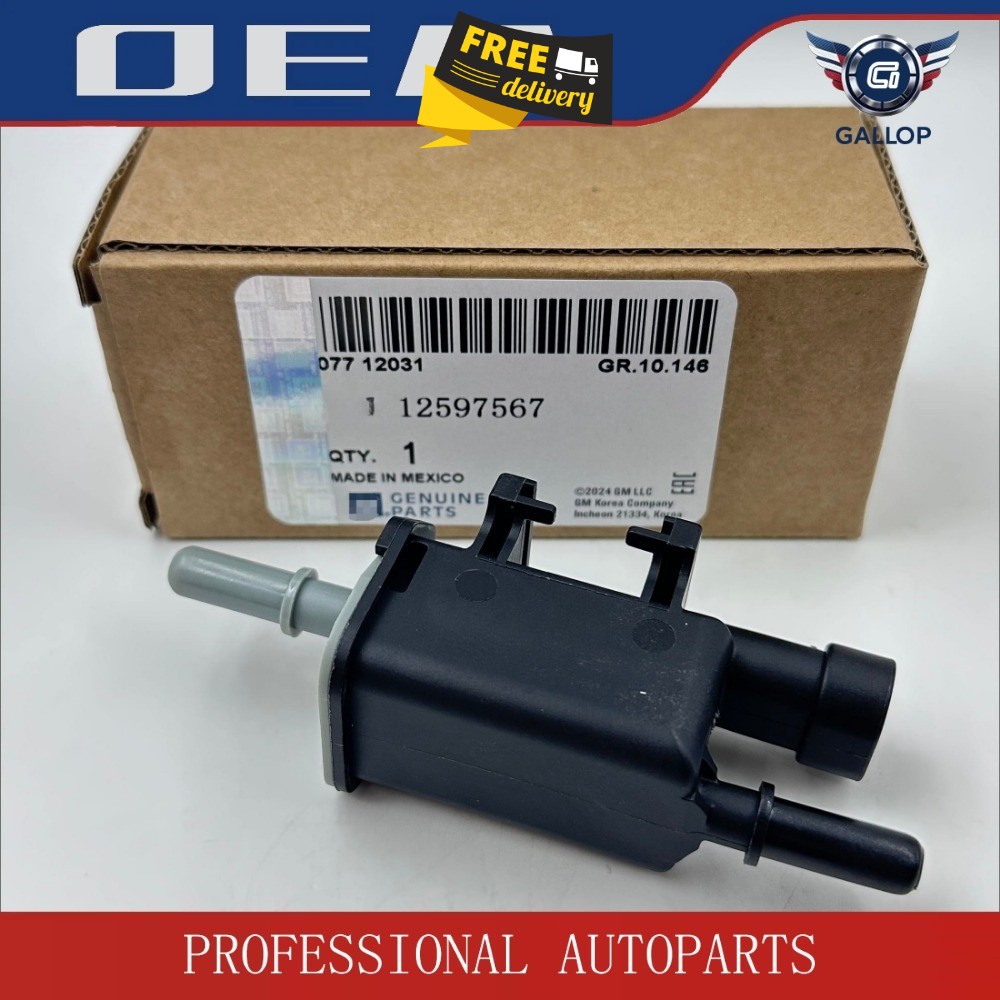

Vapor Canister Purge Valve Emission Solenoid Chevy GM 12597657 ACDELCO 214-1680 Basic Information：
Part number 214-1680 (ACDelco original factory number), generic name: EVAP Vapor Canister Purge Solenoid Valve, GM original OE number 12597567, is a core component of the General Motors Evaporative Emissions (EVAP) system.
function and role：
Electronic control solenoid valve, controlled by the on-board computer, regulates the fuel vapor to be sent from the activated carbon canister to the intake manifold for combustion; Prevent gasoline volatilization from directly polluting the air and comply with North American emission regulations.
Corresponding faults：
Common fault codes for valve body failure: P0443, P0451, P0452, P0453, P0496; Phenomenon: Engine malfunction light on, poor cold start, unstable idle, and increased fuel consumption.
Adapt to brand：
General Motors Group offers a range of models including Chevrolet, GMC, Buick, Cadillac, Pontiac, and Saturn.
Product Advantage：
Original factory direct insertion replacement, no programming calibration required; Resistant to fuel vapor corrosion, high temperature, integrated plastic shell, standard buckle installation.
⚙️ PART DETAILS
Manufacturer Part Number：214-1680
OE Number： 12597567
Superseded Part Part Style: Clip On
Material: Plastic (ABS Engineering Plastic)
Placement on Vehicle： Engine Bay, EVAP Emission System
Type：Vapor Canister Purge Solenoid Valve
Manufacturer Warranty: 24 months
Item Diameter ：38 mm / 1.50 in
Item Length：92 mm / 3.62 in
Item Height：42 mm / 1.65 in
Item Width：40 mm / 1.57 in
Connector Type: 2 Pin Oval Waterproof Connector
🚚 COMPATIBLE VEHICLES
Buick 2012 Buick Verano L4 145 2.4L wo/Bracket 2011-2014 Buick Regal L4 145 2.4L (2384cc) 2010-2012 Buick LaCrosse L4 145 2.4L (2384cc) 2008-2009 Buick LaCrosse V8 325 5.3L (5328cc) 2005-2007 Buick Rainier L6 256 4.2L 2005-2007 Buick Rainier V8 325 5.3L (5328cc) Cadillac 2010-2012 Cadillac Escalade V8 364 6.0L (5967cc) 2009-2014 Cadillac Escalade V8 376 6.2L (6162cc) 2009-2014 Cadillac Escalade ESV V8 376 6.2L (6162cc) 2009-2014 Cadillac Escalade EXT V8 376 6.2L (6162cc) 2008-2010 Cadillac Escalade V8 378 6.2L (6199cc) 2008-2010 Cadillac Escalade ESV V8 378 6.2L (6199cc) 2008-2010 Cadillac Escalade EXT V8 378 6.2L (6199cc) 2006-2007 Cadillac CTS V8 364 6.0L (5967cc) Chevrolet 2009 Chevrolet Avalanche V8 325 5.3L (5328cc) 2009 Chevrolet Avalanche V8 364 6.0L (5967cc) 2007-2012 Chevrolet Avalanche V8 325 5.3L (5328cc) 2007-2009 Chevrolet Avalanche V8 364 6.0L (5967cc) 2012 Chevrolet Camaro Convertible; V8 376 6.2L (6162cc); Automatic Trans. 2012 Chevrolet Camaro Coupe; V8 376 6.2L (6162cc) 2010-2011 Chevrolet Camaro V8 376 6.2L (6162cc) 2011-2012 Chevrolet Caprice V8 364 6.0L (5967cc) 2012 Chevrolet Captiva Sport L4 145 2.4L wo/Bracket 2007 Chevrolet Captiva Sport (Mexico) L4 134 2.2L (2198cc); Mexico Region 2006-2008 Chevrolet Cobalt L4 145 2.4L 2005-2007 Chevrolet Cobalt L4 122 2.0L 2005-2010 Chevrolet Cobalt L4 134 2.2L (2198cc) 2009-2012 Chevrolet Colorado V8 325 5.3L (5328cc) 2007-2012 Chevrolet Colorado L4 178 2.9L (2921cc) 2007-2012 Chevrolet Colorado L5 223 3.7L (3654cc) 2004-2006 Chevrolet Colorado L4 169 2.8L (2770cc) 2004-2006 Chevrolet Colorado L5 211 3.5L (3460cc) 2012 Chevrolet Corvette V8 378 6.2L (6200cc); Base Submodel 2010-2012 Chevrolet Corvette V8 376 6.2L (6162cc); Grand Sport Submodel 2009-2012 Chevrolet Corvette V8 376 6.2L (6162cc); Base Submodel 2008 Chevrolet Corvette V8 376 6.2L (6162cc) 2006-2012 Chevrolet Corvette V8 427 7.0L (7011cc) 2005-2007 Chevrolet Corvette V8 364 6.0L (5967cc) 2005 Chevrolet Corvette V8 364 6.0L 2011 Chevrolet Equinox L4 145 2.4L (2384cc) wo/Bracket 2010,2012 Chevrolet Equinox L4 145 2.4L wo/Bracket 2008-2014 Chevrolet Express 1500 V8 325 5.3L (5328cc) 2008-2014 Chevrolet Express 2500 V8 294 4.8L 2008-2014 Chevrolet Express 2500 V8 364 6.0L (5967cc) 2008-2014 Chevrolet Express 3500 V8 294 4.8L 2008-2014 Chevrolet Express 3500 V8 364 6.0L (5967cc) 2007-2008 Chevrolet HHR L4 134 2.2L (2198cc) 2006-2011 Chevrolet HHR L4 134 2.2L (2189cc) 2006-2011 Chevrolet HHR L4 145 2.4L 2006-2009 Chevrolet Impala V8 325 5.3L (5328cc) 2008-2012 Chevrolet Malibu L4 145 2.4L 2006-2008 Chevrolet Malibu L4 134 2.2L (2198cc) 2004-2005 Chevrolet Malibu L4 134 2.2L (2198cc); Automatic Trans. 2006-2007 Chevrolet Monte Carlo V8 325 5.3L (5328cc) 2009-2012 Chevrolet Silverado 1500 V8 376 6.2L (6162cc) 2007-2012 Chevrolet Silverado 1500 V8 294 4.8L 2007-2012 Chevrolet Silverado 1500 V8 325 5.3L (5328cc) 2007-2012 Chevrolet Silverado 1500 V8 364 6.0L (5967cc) 2007-2012 Chevrolet Silverado 2500 HD V8 364 6.0L (5967cc) 2007-2012 Chevrolet Silverado 3500 HD V8 364 6.0L (5967cc) 2005-2006 Chevrolet SSR V8 364 6.0L (5967cc) 2011-2014 Chevrolet Suburban 1500 V8 325 5.3L (5328cc); Engine Desg. LC9 2010 Chevrolet Suburban 1500 V8 325 5.3L (5328cc); FLEX 2008-2012 Chevrolet Tahoe V8 364 6.0L (5967cc) 2008-2009 Chevrolet Tahoe V8 376 6.2L (6162cc) 2007-2009 Chevrolet Suburban 1500 V8 325 5.3L (5328cc) 2007 Chevrolet Suburban 1500 V8 364 6.0L (5967cc) 2007-2012 Chevrolet Suburban 2500 V8 364 6.0L (5967cc) 2007-2009 Chevrolet Tahoe V8 294 4.8L 2007-2012 Chevrolet Tahoe V8 325 5.3L (5328cc) 2006-2009 Chevrolet Trailblazer V8 364 6.0L (5967cc) 2005-2009 Chevrolet Trailblazer L6 256 4.2L 2005-2008 Chevrolet Trailblazer V8 325 5.3L (5328cc) 2005-2006 Chevrolet Trailblazer EXT L6 256 4.2L 2005-2006 Chevrolet Trailblazer EXT V8 325 5.3L (5328cc) GMC 2005-2009 GMC Envoy L6 256 4.2L 2005-2009 GMC Envoy V8 325 5.3L (5328cc) 2005-2006 GMC Envoy XL L6 256 4.2L 2005-2006 GMC Envoy XL V8 325 5.3L (5328cc) 2005 GMC Envoy XUV L6 256 4.2L 2005 GMC Envoy XUV V8 325 5.3L (5328cc) 2009-2014 GMC Canyon V8 325 5.3L (5328cc) 2007-2012 GMC Canyon L4 178 2.9L (2921cc) 2007-2012 GMC Canyon L5 223 3.7L (3654cc) 2004-2006 GMC Canyon L4 169 2.8L (2770cc) 2004-2006 GMC Canyon L5 211 3.5L (3460cc) 2008-2014 GMC Savana 1500 V8 325 5.3L (5328cc) 2008-2014 GMC Savana 2500 V8 294 4.8L 2008-2014 GMC Savana 2500 V8 364 6.0L (5967cc) 2008-2014 GMC Savana 3500 V8 294 4.8L 2008-2014 GMC Savana 3500 V8 364 6.0L (5967cc) 2007 GMC Sierra 1500 V6 262 4.3L 2007-2012 GMC Sierra 1500 V8 294 4.8L 2007-2012 GMC Sierra 1500 V8 325 5.3L (5328cc) 2007-2012 GMC Sierra 1500 V8 364 6.0L (5967cc) 2007-2012 GMC Sierra 1500 V8 376 6.2L (6162cc) 2007-2012 GMC Sierra 2500 HD V8 364 6.0L (5967cc) 2007-2012 GMC Sierra 3500 HD V8 364 6.0L (5967cc) 2011 GMC Terrain L4 145 2.4L (2384cc) wo/Bracket 2010,2012 GMC Terrain L4 145 2.4L wo/Bracket 2009 GMC Yukon V8 378 6.2L (6199cc) 2008-2012 GMC Yukon V8 364 6.0L (5967cc) 2007-2008 GMC Yukon V8 294 4.8L 2007-2012 GMC Yukon V8 325 5.3L (5328cc) 2007-2012 GMC Yukon V8 376 6.2L (6162cc) 2011-2014 GMC Yukon XL 1500 V8 325 5.3L (5328cc); Engine Desg. LC9 2010 GMC Yukon XL 1500 V8 325 5.3L (5328cc); FLEX 2007-2009 GMC Yukon XL 1500 V8 325 5.3L (5328cc) 2007-2009 GMC Yukon XL 1500 V8 364 6.0L (5967cc) 2007-2014 GMC Yukon XL 1500 V8 376 6.2L (6162cc) 2007-2012 GMC Yukon XL 2500 V8 364 6.0L (5967cc) 2009 Hummer H2 V8 376 6.2L 2008 Hummer H2 V8 378 6.2L (6199cc) 2008-2010 Hummer H3 L5 223 3.7L (3653cc) 2008-2010 Hummer H3 V8 325 5.3L (5328cc) 2007-2010 Hummer H3 L5 223 3.7L (3654cc) 2006 Hummer H3 L5 211 3.5L (3460cc) 2009-2010 Hummer H3T L5 223 3.7L (3654cc) 2009-2010 Hummer H3T V8 325 5.3L (5328cc) Pontiac 2007-2010 Pontiac G5 L4 134 2.2L (2198cc) 2007-2008 Pontiac G5 L4 146 2.4L (2394cc) 2010 Pontiac G6 L4 145 2.4L 2006-2010 Pontiac G6 L4 145 2.4L (2384cc) 2009 Pontiac G8 V8 376 6.2L (6162cc) 2008-2009 Pontiac G8 V8 364 6.0L (5967cc) 2005-2008 Pontiac Grand Prix V8 325 5.3L (5328cc) 2005-2006 Pontiac GTO V8 364 6.0L (5967cc) 2006-2009 Pontiac Solstice L4 145 2.4L (2384cc) Saab 2008-2009 Saab 9-7x V8 364 6.0L (5967cc) 2005-2009 Saab 9-7x V8 325 5.3L (5328cc) 2005-2009 Saab 9-7x L6 256 4.2L Saturn 2007-2009 Saturn Aura L4 145 2.4L 2006-2007 Saturn Ion L4 145 2.4L (2384cc) 2005-2007 Saturn Ion L4 134 2.2L (2198cc) 2004-2007 Saturn Ion L4 122 2.0L 2007-2010 Saturn Sky L4 145 2.4L (2384cc) 2007-2010 Saturn Vue L4 145 2.4L 2006-2007 Saturn Vue L4 134 2.2L (2198cc) 2004-2005 Saturn Vue L4 134 2.2L Package Includes: 1 x Vapor Canister Purge Solenoid as pictures
