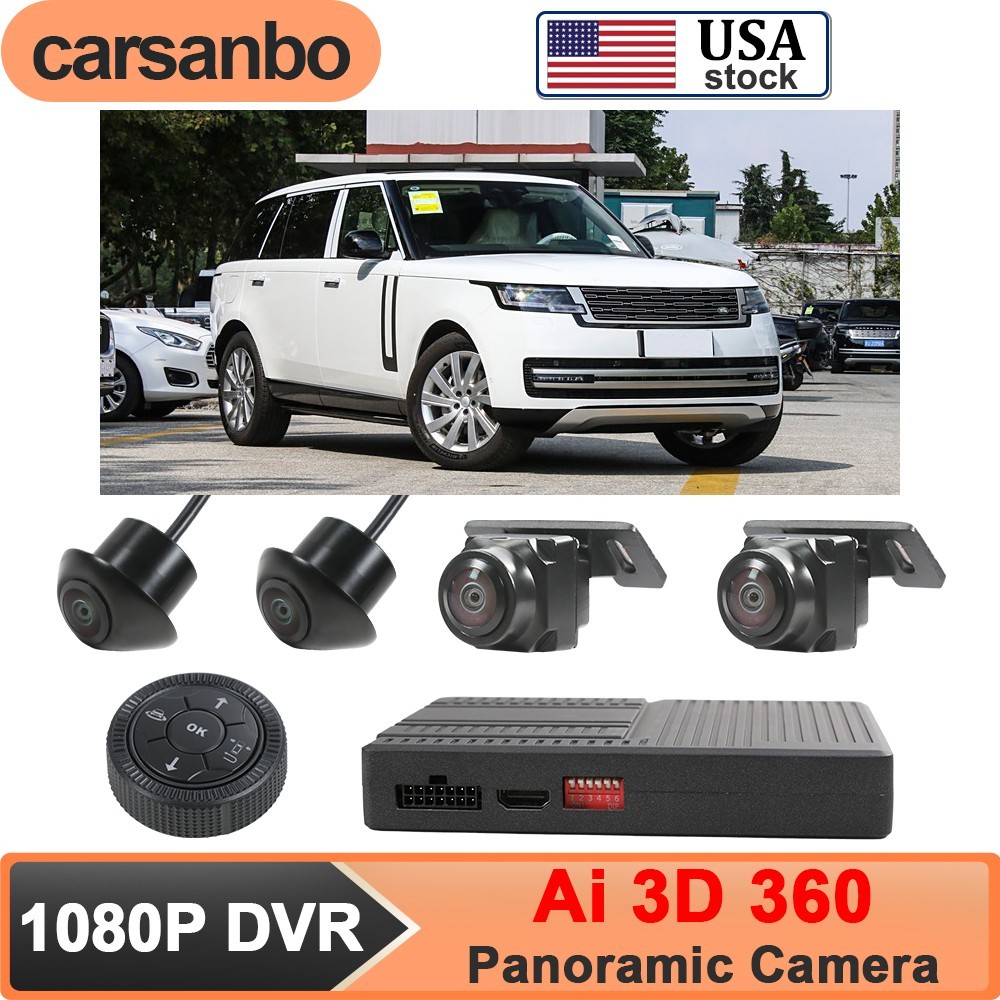

AI 360 Car Camera System With 1080P TVI Camera Super Night Vision For Sedan Car Tiguan Touran Audi A4A6 Benz BMW Buick
Product Parameters:
- Ai intelligent recognition of pedestrians and vehicles.
- Display distance and direction of movement from other vehicles and pedestrians.
- Ai intelligence alerts through color changes and sound.
- 3.5D\3D\2D multiple view display.
- Multiple styles 3D car model image available.
- 4 way video recording and playback, 4-in-1 High-definition video real-time recording.
- Record Video Files Using H.265 Compression Format.
- Support AHD, TVI, CVI, HDMI, VGA And CVBS video output, easy change in menu. The original car display screen supports one of the above, which can be connected.
- Parking recording mode with intelligent voltage detection.
- Voltage Support: DC9-30V.
- OSD Language: Chinese, Korean, English.
Purchase Notice:
1. This system support Vehicles within 6 meters. You might need to buy extra extension cable for the rearview camera if over 6 meters.
2. Please check if your monitor with RCA video input or not. Our 360 system support CVBS/AHD/TVI/HDMI signal output. If you using car factory radio, normally it need to add car interface, or buy a reverse camera input cable for (your car brand).
3. Aftermarket radio or monitor is works well for our 360 camera system. If the monitor support AHD input that will be more HD quality.
4. This system need to drilling hole at your side view mirror, please be sure you can accept that the camera is universal. It can be install for most of car.
5. The calibration cloth need to buy alone. If the installation shop have this one, then you not need to buy to save the cost. If your car width exceeds 2.5 meters, you need to cut the calibration cloth or purchase a larger specification of calibration cloth in order to calibrate it.
6. Our store has a 10.25 touch screen AHD monitor with a resolution of 1920x720P, which is perfectly compatible with this panoramic and supports touch function to control 360 camera system. You can choose to purchase it If needed.
Main Feature:
Latest upgraded features in 2025
In 2024, we collected a lot of customer demands. After installing our 360 panorama, when driving normally, the 360 panorama interface displays the image of the front camera. However, when there is a trailer behind our car, I would like to see the situation behind the car. When the car moves forward, it works like a streaming rearview mirror. After the unremitting efforts of our engineering personnel, we finally developed this function in 2025. Now users can set the default angle by themselves. We have 5 modes in the system, and you can set them according to your actual needs (for old users, please contact us for software upgrade).
We have added paper manuals in German and Korean, and installation and calibration videos can be found on our YouTube channel (carsanbo).
1. AI Intelligent Recognition Of Pedestrians And Vehicles
On the left side of the interface, different colors are used to indicate the direction of objects and their distance from the camera, The right interface displays the specific distance between a single camera and an object.
The default state is that all four cameras are equipped with AI function. If you need to enable some of them, you can make the following settings.
2. Automatic switch view while driving the car
When the car is turning left, right, reversing, or moving forward, corresponding camera images are provided to assist you in driving and prevent accidents from happening
①Car turning left,the 360 view as below
②Car turning right,the 360 view as below
③Car reverse,the 360 view as below
④ Car forward,the 360 view as below
⑤When double clicking on the car emergency light，display left and right 2D view
2.1 Knob remote control to switch viewing angles
You can also switch view by the remote control.
Press this button ,the Car image will 360 degree view rotates once.
Rotating the knob switch can switch between different views.
The OK button can switch the secondary viewing angle.
Press this button to quickly enter the limited width view.
By entering the menu settings through the remote control, more perspectives can be set, such as 2D, 3D, 3.5D perspective, and reverse mode 2.
3. Built-in DVR function
We adopt H.265 as the new generation video compression standard which can record up to 87 hours of video (when connected to a 128GB USB storage card). The following are video screenshots of USB storage card playback on the computer at 12:30 and 20:30 respectively. The pixel of video is 1920*1080. We won't lie and say this is a 4K resolution.
4. Support multiple signal formats for output
Our host support CVBS/AHD 720P/AHD 1080P/TVI/HDMI/(VGA for car interface) video output. The corresponding output signal can be set through the dip switch. In addition, our connector is designed with a waterproof lock buckle, which is more sturdy and durable.
5. Good product performance comes from product details
The camera housings on the front, back, left, and right sides are all made of metal, which provides better heat dissipation and durability.
6. DV600AI 360 AI camera system packing including:
7. Multiple car models to choose from and respond to timely professional services
The system has 22 car graphics for you to choose from, and our database has 188 car models for you to choose from. The data details of the car models are as follows. If you need, you can contact our customer service to send you the corresponding car model software for upgrading. Our response time is within 12 hours. If you encounter any problems during the installation process, our technicians can provide online technical guidance to make your installation more reassuring.
