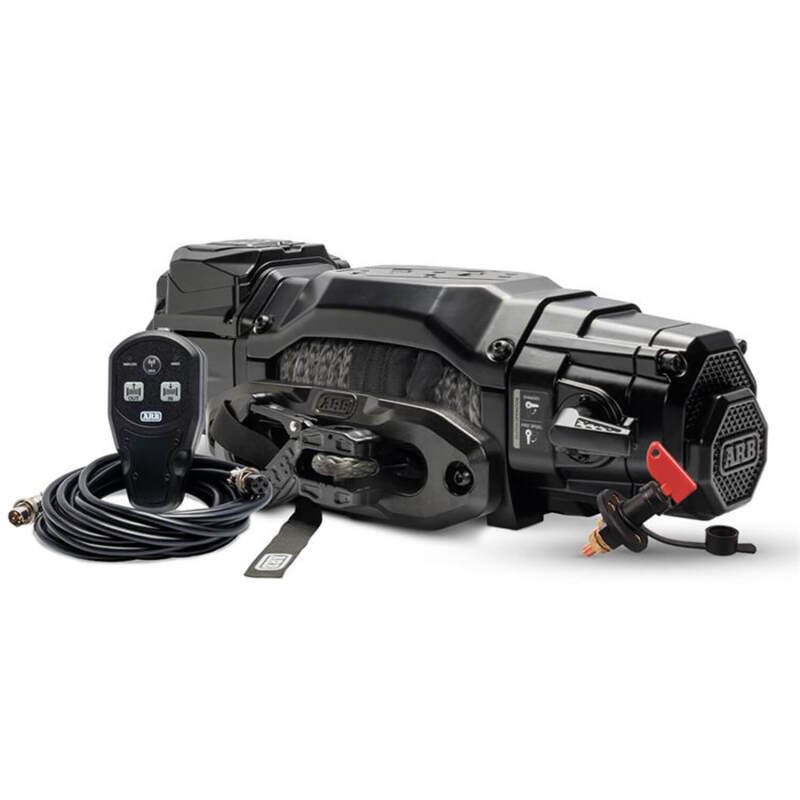

Part Brand: ARB
Part Number: ARW100SA-KIT
Vehicle Fitment
- Universal Winch Application (Winch-Compatible Bumpers and Mounting Systems)
Fitment Notes
- Universal recovery winch; not vehicle-specific.
- Requires a compatible winch-ready bumper, tray, or mounting system.
- Verify bumper and mounting capacity before installation.
- May require vehicle-specific mounting hardware depending on application.
- Suitable for off-road, overland, recovery, and utility vehicle use.
Features
- 10,000 lb (4,536 kg) rated line pull capacity.
- Premium synthetic recovery rope reduces weight versus steel cable.
- Integrated motor control design eliminates external control box.
- Custom Albright 500A contactor mounted directly to the motor.
- IP68-rated motor and gearbox for water and dust resistance.
- Gearbox-mounted proportional friction brake with 100% load holding capability.
- 4-stage hardened steel geartrain for strength and durability.
- 2.4GHz wireless remote and wired controller operation.
- 16-position clockable clutch handle for installation flexibility.
- One-piece bridging plate increases torsional rigidity.
Specifications
- Manufacturer: ARB
- Part Number: ARW100SA-KIT
- Winch Rating: 10,000 lb (4,536 kg)
- Rope Material: Synthetic
- Rope Size: 10mm x 28m (approximately 92 ft)
- Motor Output: 5.3 HP, 12V
- Gear Ratio: 171:1
- Gearbox Type: 2-Stage Planetary / 2-Stage Spur
- Brake Type: Gearbox-Mounted Proportional Friction Brake
- Fairlead: Forged 6061 Aluminum Hawse Fairlead
- Maximum Line Speed: 60 ft/min
- Protection Rating: IP68
- Installed Weight: 73.5 lb (33.3 kg)
Included Components
- 1x ARB 10,000 lb Winch Assembly
- 1x Synthetic Rope
- 1x Aluminum Hawse Fairlead
- 1x Wireless/Wired Remote Controller
- 1x 500A Power Isolation Switch
- 1x Remote-Mounted Control Plug Assembly
- 1x Installation Hardware Package
Product Description
The ARB ARW100SA-KIT is a premium 10,000-pound recovery winch engineered for serious off-road, overland, and utility applications. Its integrated motor control architecture eliminates the need for a bulky external control box, resulting in a cleaner installation and improved compatibility with modern winch-ready bumpers and vehicle systems.
Built around a robust 5.3 HP motor and a durable 171:1 hardened steel geartrain, the winch delivers dependable pulling power while maintaining fast line speeds. The IP68-rated motor and gearbox provide protection against water and dust intrusion, making the unit suitable for demanding recovery situations in mud, water crossings, snow, and harsh off-road environments.
A premium synthetic rope, wireless and wired remote operation, gearbox-mounted load-holding brake, and included 500A isolation switch make the ARW100SA-KIT a complete recovery solution. Designed for users who demand reliability and performance, this winch combines advanced engineering, installation flexibility, and long-term durability for professional-grade vehicle recovery.
*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
