autopartm Description
Specification:
Working Voltage: DC 12-24V
Max Current: 60A
Rated Voltage: 12V 20A / 24V 10A
Operating at 12 Volts: Max Power Rating of 720W
Operating at 24 Volts: Max Power Rating of 1400W
Switch Operation: On-Off
Operating Temperature: -40°C - +105°C
Waterproof Rating: IP65
Features:

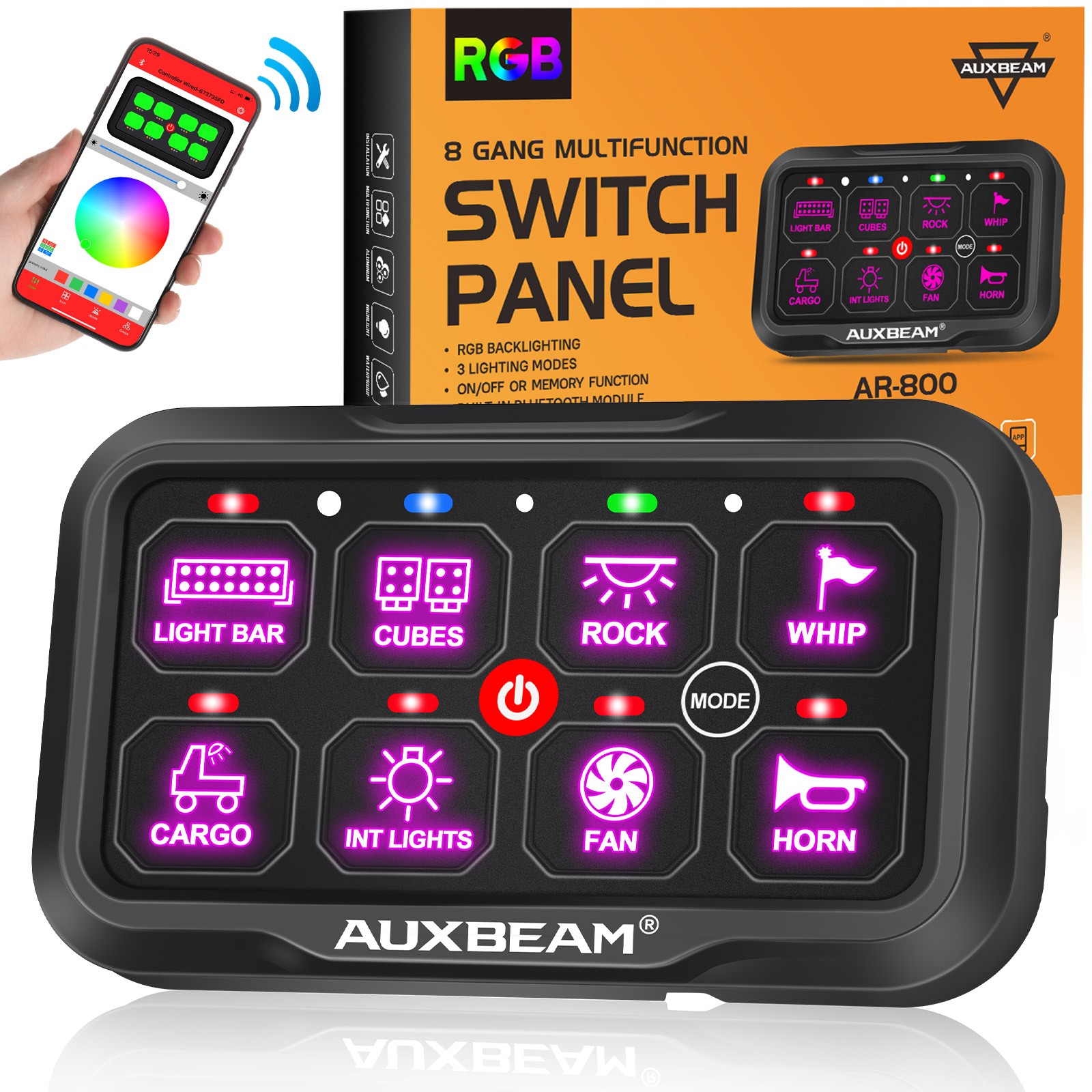

▶AR-800 RGB Switch Panel
- 8-Gang one-sided outlet switch panel.It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 2control methods- Switch panel & BluetoothAPP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
- 3 modes setting.Each switch has 3 kinds of light status, different indicator status represents different working modes.
●RED-Toggle, Constant light mode (Great for things like fog lights or driving.
●BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button.
●GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGBback light color.Adjust back light color and brightness to match your vehicle.
- Back light brightness automatic dimmable.Automatic adjustment according to the brightness variation of the environment.
- Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
- DIY button icon on APP. 200 default icons or use your own photos from the phone album.
- Setup group.Manage multiple accessories in your custom groups. Assign 2 or moreaccessoriesto the same switch button and then control them at the same time.
- Universal fitment.Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV,Side by Side,SxS,Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
- Safety protection.Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- Easy Installation.No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With2 types of mounting brackets, you canmount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶7FT Electric Wire
- 10㎡/7AWG red and black large wire with 6M and 8M tinned copper wire lugs.
- Copper cable lugs are made of solid copper with tin plated caps for corrosion protection.
- The package comes with red and black cables with each cable end sealed with heat shrink tubing for heat data-mce-fragment="1" style="margin-right: 0px; margin-bottom: 16px; margin-left: 0px; padding: 0px; list-style-position: inside; list-style-image: none;">
- Compatible with IOS & Android devices
- IOS 9.0or newerversion, Android 4.5newerversion
- Download the “Switch panel” app from Apple storeor Google Play Store(free download). Scan QR code on theinstructions.
- If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.
PackageIncluded:
- 1 Set of 8 GangRGBSwitch Panel(all necessary hardwareand wiring harnessis included)
- Installation Instructions
- 1*Universal Stickers1*Waterproof Silicone Cover
Guideline for connecting the red cables:The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed. Product Display Payment 1.We accept paymentonly via Secure Check-Out. 2.Payment is expected within 7 days of sale close. Unpaid Items will be forfeited per . 3.Immediate payment needs to be processed for items with Add to Cart option so that any promotional discounts can be applied to your order immediately.
