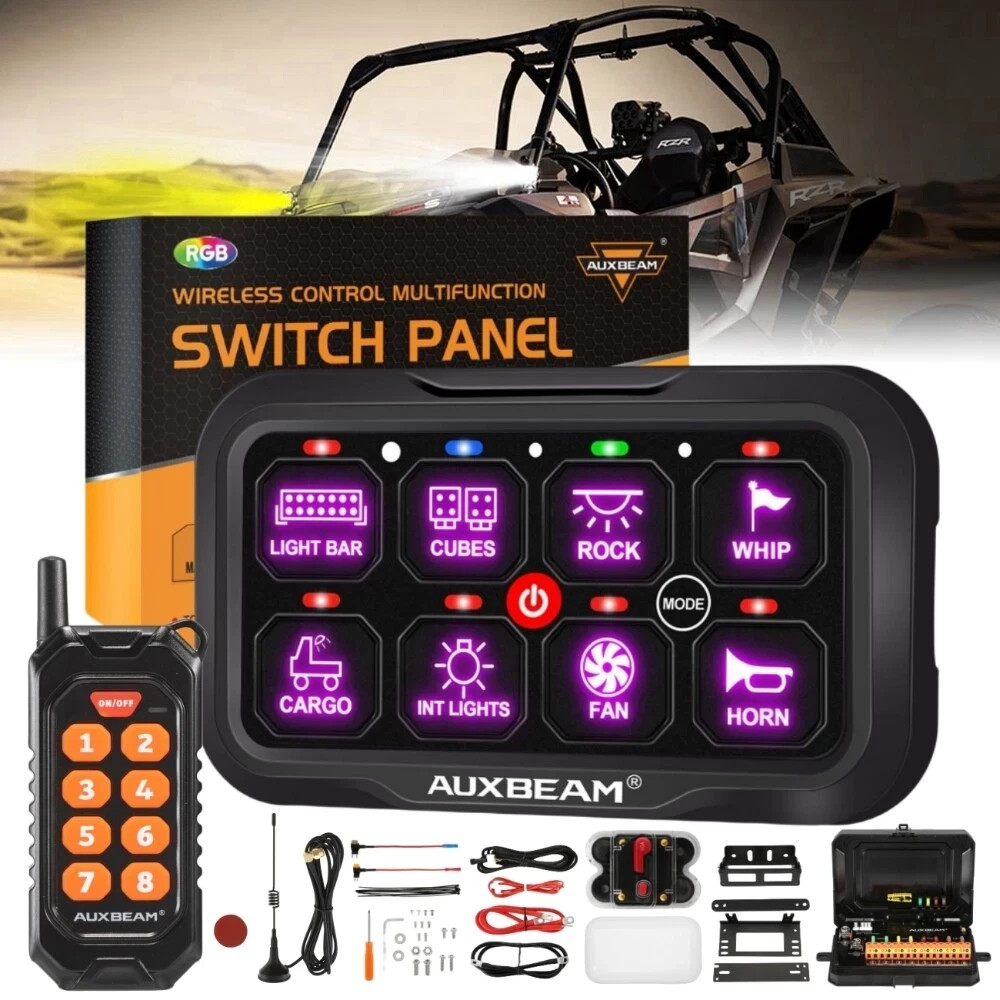

AUXBEAM RC-800 RGB 8 Gang Switch Panel Remote Control LED Light Bar all vehicle For Sale - New and Used

Specification:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

Features:

▶RA84 RGB Switch Panel

• 8-Gang one-sided outlet switch panel.It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
• 2control methods- Switch panel &Remote Control, work synchronously. The wireless remote control has a connection range of up to 165ft/50m.
• 3 modes setting.Each switch has 3 kinds of light status, different indicator status represents different working modes.

●RED-Toggle, Constant light mode (Great for things like fog lights or driving. )

●BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off,just like pressing the horn button.

●GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

• RGB backlight color.Adjust backlight color and brightness to match your vehicle.
• Backlight brightness automatic dimmable.Automatic adjustment according to the brightness variation of the environment.
• Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
• Universal fitment.Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV,Side by Side,SxS,Heavy-duty machines, etc.
• Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
• Safety protection.Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
• Easy Installation.No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
• With2 types of mounting brackets, you canmount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

▶Remote Control

• Advanced thermal protection and overload protection design makes the load work safely
• The back of the product has a magnetic backplate, which can be easily hung on any metal and can be placed and picked up at any time
• Ultra-low latency, 433 signal frequency, no other equipment interference control to block the signal
• The wireless remote control has a connection range of up to165 feet/50 meters.
• Replaceable battery

▶3.94FTInch Extension Cable

• There is a 4-pin aviation video cable, a cable for transmitting video and power.
• It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
• Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
• Power input DC 12V- DC 24V.
• Specially thick hard wire 100% provides superb protection against EMI interference and RF interference such as automotive circuit interference.

★ Upgraded Functions:
✔ RGB Backlight- Unlimited color options match dash lighting and vehicle
✔ 3 Mode Setting- Toggle/Momentary/Pulsed
✔ Wireless Remote Control- With a strong magnet, which can beadsorbed on the iron metal, which is very convenient to use (Wireless remote control includes batteries)
✔ Manual Backlit Off- Turn off the backlight when it's daytime or when it's not necessary
✔ DIY Switch Panel- Use the provided 60pcs switch labels to indicate what’s connected to that switch.

---
