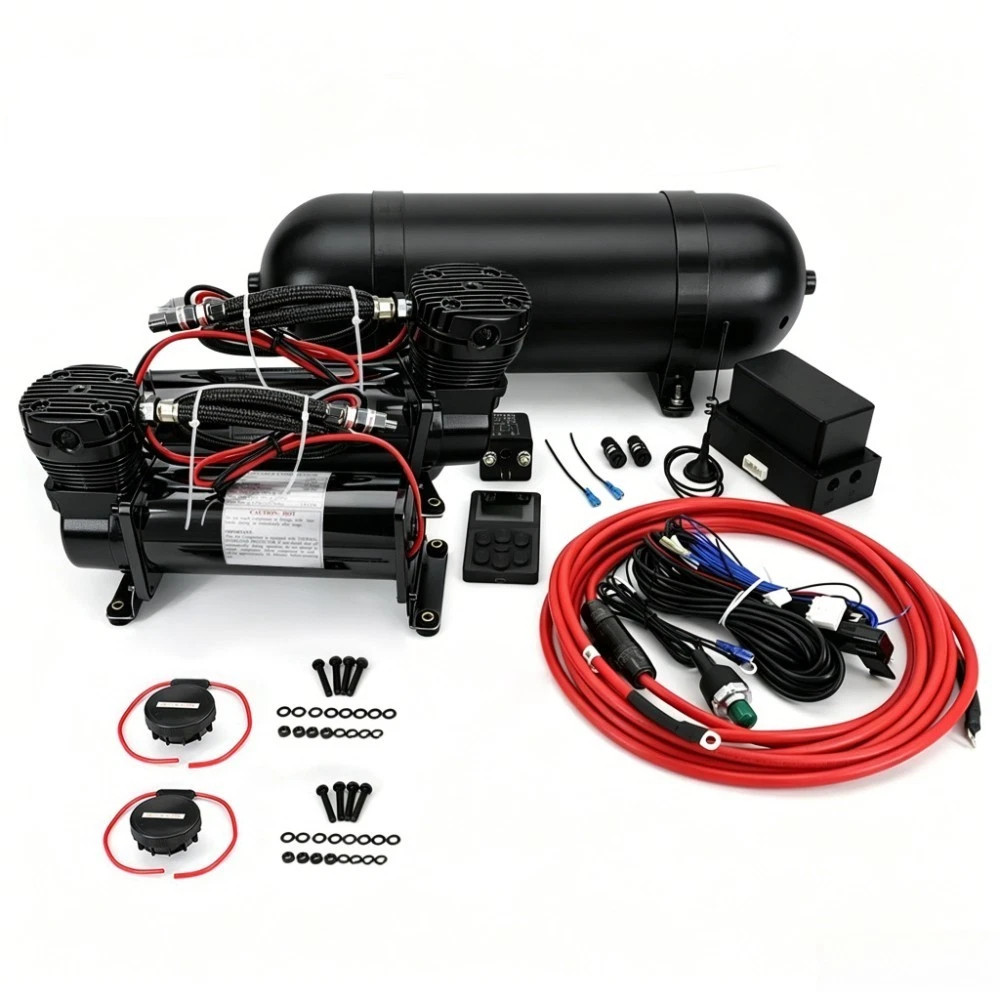

Complete Air Ride Suspension Kit‑Dual Black Air Compressors with Air Tank & Control System
Product Description
The solenoid valve kit includes Control Box and Remote, Allows you to remotely control, and the farthest control distance is within 10 meters(32.8ft).
The Solenoid Valve Suitable for Auto and Motorcycle with Suspension System.
The robust internal solenoid valve structure maximizes flow rates and offers operation up to 300 PSI for millions of cycles, Controls 8 valves individually.
Direct replacement and easy to operate, 1/4" NPT ports for more flexibility of installation, prewired and numbered port to reduce installation time. The solenoid valve Kit includes two wires that are weather-proof for harsh under vehicle environments.
3 gallon aluminum seamless air cylinder air tank pneumatic air suspension system tunning vehicle parts
Size is 500mm*168mm
Packing size :540mm*190mm*190mm
Volume= 50*3.14*8.4*8.4=3gallon(L*π*r2 )
Factory inspection: 220PSI
Application:
Specification:
It features horizontal cooling fins and a trapezoidal head design, a standard 1/4” stainless steel braided leader
hose with1/4” NPT inline check valve and insulated wiring.
Motor Voltage:12V.
Motor Type: Permanent Magnetic Motor.
Max. Duty Cycle @ 72ºF 100 PSI: 100%.
Max. Duty Cycle @ 72ºF 200 PSI: 50%.
Max. Working Pressure: 200 PSI.
Max. Amp Draw: 20 Amps.
Package Included:
Wired controller : 1 piece
Integrated ECU + Manifold solenoid Valve group unit : 1 piece
RELAY : 1 piece
Connecting electric wire + air fittings & connectors: 1 set
200 PSI Air Compressor : 2 set
3 Gallon Aluminum Seamless Air Tank: 1 set
