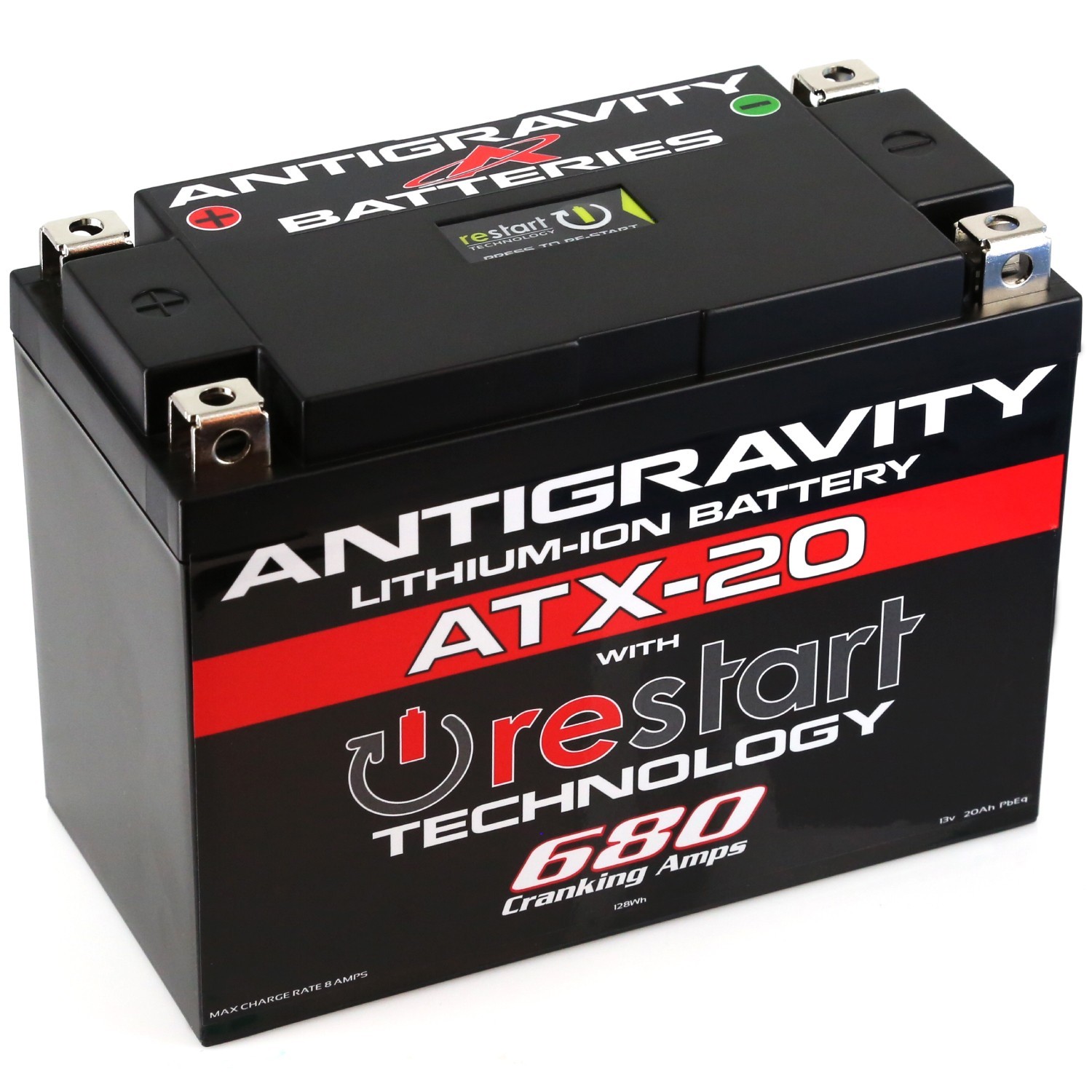

Antigravity ATX20-RS RE-START Lithium Battery 680CA YTX20 Replacement Lithium Motorcycle Battery with Built-In Jump Starting
The Antigravity ATX20-RS is a high-power, lightweight LiFePO4 lithium motorcycle battery featuring patented RE-START Technology with built-in jump starting. It directly replaces popular YTX20-series lead/acid batteries while offering major weight savings, strong cranking power, and advanced battery protection.
Highlights
- Built-in RE-START jump-starting technology
- 680 cranking amps for strong starting performance
- 20Ah PbEq / 10Ah actual capacity / 128Wh
- Full Battery Management System (BMS)
- Ultra lightweight 3.8 lb lithium design
- 4-terminal design for easier installation
- Can be mounted in any orientation
- LiFePO4 lithium chemistry
ATX20-RS Performance Cranking Amps
680 CA Amp Hours
20Ah PbEq / 10Ah Actual Weight
3.8 lbs L x W x H
6.89 x 3.4 x 5.12 in RE-START Technology
- Built-in jump-starting helps prevent dead battery emergencies
- If over-discharged, the battery enters sleep mode while saving reserve power
- Press the RE-START button to activate reserve energy and start the vehicle
- Optional RE-START Remote accessory available for harder-to-reach battery locations
Battery Management System (BMS)
- Full BMS with over-discharge protection
- Over-charge protection
- Thermal protection
- Real-time lithium cell balancing
- Designed for safer operation and longer battery life
Applications
Ideal for touring motorcycles, large V-Twin motorcycles, adventure bikes, ATVs, UTVs, and powersports vehicles using YTX20-style battery sizes. The ATX20-RS is also suitable for select race-only automotive applications where compact size, high cranking power, and major weight savings are required.
Key Features Battery Type 12V LiFePO4 Lithium Motorcycle Battery RE-START Feature Yes, Built-In Jump Starting Battery Management Full BMS with Over-Discharge, Over-Charge, Thermal Protection, and Cell Balancing Terminal Design 4 Terminal Design Mounting Can be mounted in any orientation Replaces These OEM Sizes YTX15 YTX20 YTX20-BS YTX20L-BS YTX20HL-BS YIX20HL GYZ20H GYZ20L GYZ20HL Specifications
- Voltage: 12V
- Cranking Amps: 680 CA
- Capacity: 20Ah PbEq / 10Ah Actual / 128Wh
- Weight: 3.8 lbs
- Dimensions: 6.89 x 3.4 x 5.12 in
- Battery Chemistry: LiFePO4 Lithium
- UPC: 711811703386
- Manufacturer Part Number: AG-ATX20-RS
- Warranty: 3 Years
Important: Use only lithium-specific motorsport chargers with this battery. Do not use lead/acid chargers. Not intended for standard automotive street use. Contact Antigravity Batteries for potential race-only automotive applications. Antigravity Batteries | RE-START Lithium Power for Motorcycle & Powersports Applications
