• Dual Gauge Monitoring Panel:
Features AutoMeter 2-5/8-inch Ultra-Nite gauges for precise oil pressure and water temperature readings, ensuring reliable engine performance monitoring., • Built for Harsh Conditions:
Designed specifically for dirt track and racing environments; fully sealed waterproof housing allows easy cleaning and long-term durability., • Integrated Warning Lights:
Includes red 20 PSI oil pressure warning light and amber 230°F water temperature light for instant visual alerts during operation., • Durable, Easy-to-Read Design:
Blue anodized bezels with glow-in-the-dark gauge faces eliminate the need for bulbs or batteries, providing clear visibility in any lighting., • Complete Plug-and-Play Kit:

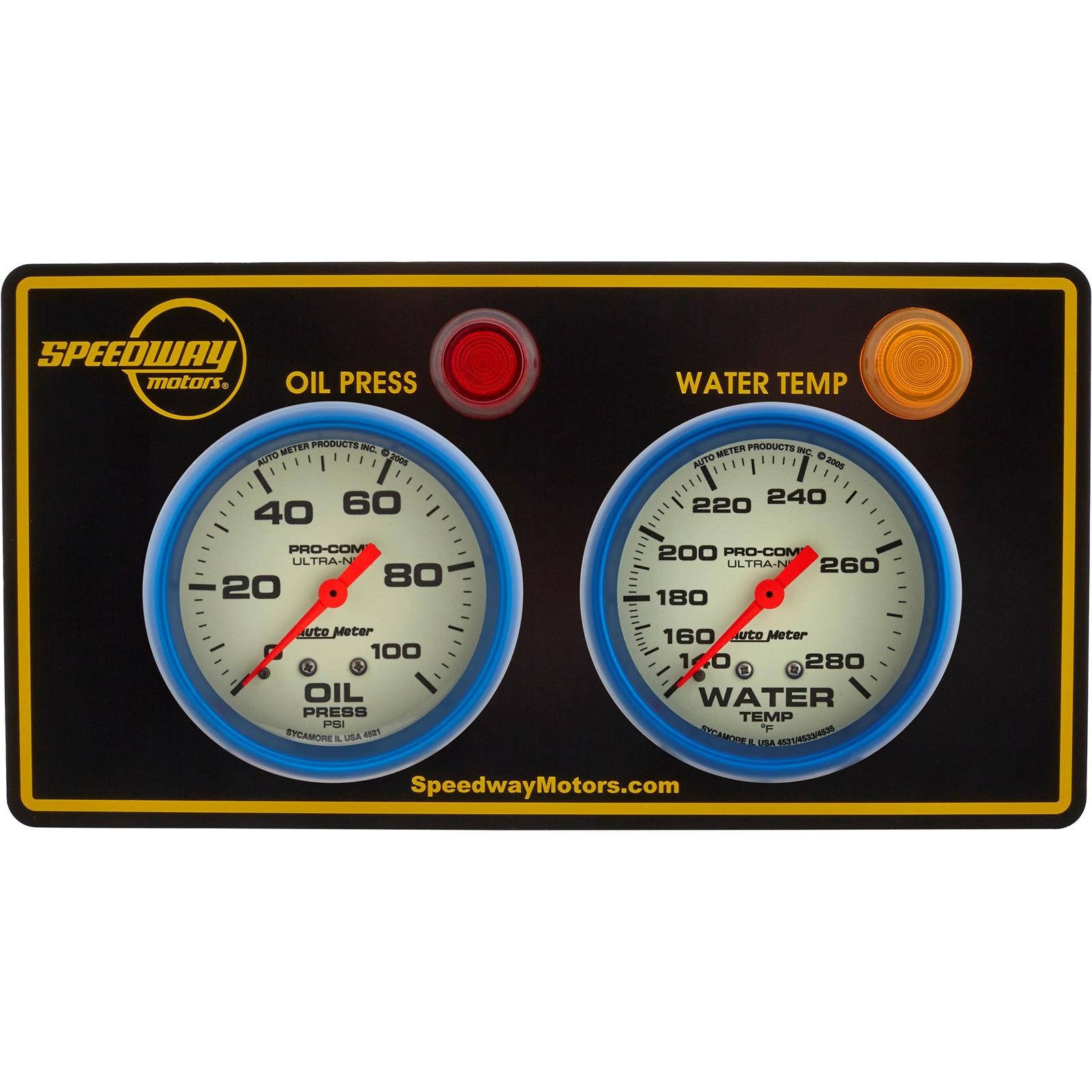

Comes with senders, fittings, 3-foot wiring, and pre-wired harness for quick AutoMeter Ultra-Nite 2 Gauge Panel, Oil Press & Water Temp Sku # 91365476 Mfr. Part # 91365476 Condition New Brand Speedway Motors Sold Kit Details
Introducing the Ultimate 2-Gauge Panel: Elevate your driving experience with our premium oil pressure and water temperature panel! Boasting sleek AutoMeter 2-5/8\" gauges and complete with warning lights, senders, and comprehensive instructions, this panel is a game-changer. Plus, with an effortless hook-up wiring harness included, installation is a breeze.
Oil Pressure Warning Light-
- Red color light
- Light comes on at 20 lbs. of pressure
- Sender has 1/8\" NPT threads
- Brass tee fitting has 1/8\" NPT threads
- Includes 3 ft. of 14 ga. wire
Water Temp Warning Light-
- Amber color light
- Light comes on at 230° F
- Switch is self-grounding, normally off
- Sender has 1/2\" NPT threads with 15/16\" hex
- Includes 3 ft. of 14 ga. wire
Oil Pressure Gauge-
Ultralight Auto Meter gauges with blue anodized bezel are designed for the extreme conditions of dirt track racing. Water proof so they can be hosed off after the races. A glow-in-the-dark face means they dont use light bulbs. Keeps them simple and dry.
2-5/8\" Ultra-Nite Tach glow-in-the-dark face eliminates need for light and battery. Sealed case keeps moisture and debris out. For standard or electronic ignition.
Item Details
0-100 psi, Has 1/8\" NPT male fitting on back for line hook-up
Ships with the following AutoMeter products:
Mounting Hardware: 3245
Ships with the following AutoMeter products:
Mounting Hardware: 3245
Water Temp Gauge-
Auto Meter Pro-Comp gauges with blue anodized bezel are designed for the extreme conditions of dirt track racing. Temperature meter is fully sealed waterproof housing keeps moisture and debris out so it can be hosed off after the races. Ultra-Nite glow-in-the-dark face eliminates need for a back light. Keeps them simple and dry.
Mechanical operation with a 2-5/8\" diameter.
Item Details
\'140°-280°, Includes 6\' capillary tube and 1/2\" NPT fitting\'
Ships with the following AutoMeter products:
Adapters/Fittings: 1/2\"\" NPT adapter/fitting.
Tubing: 6 ft. Capillary Tube
Mounting Hardware: 3245
Ships with the following AutoMeter products:
Adapters/Fittings: 1/2\"\" NPT adapter/fitting.
Tubing: 6 ft. Capillary Tube
Mounting Hardware: 3245
Specs Sold in Quantity Set MFG. Part # 91365476 Notes Includes panel, light harness, warning lights, and oil pressure/water temp gauges.Luminescent dials glow green at night for dimly lit tracks when no battery is available to light Gauge Series Analog Gauge Style Mechanical Gauge Set Design Accessory Console Number of Gauge Housings 2 Auxiliary Gauge Diameter 2-5/8 Inch Gauge Face Color Ivory Bezel Finish Anodized Liquid Filled Yes Lighted No Lighting Type Incandescent Needle Color Orange Lettering Color Black Gauge Range oil pressure- 0-100, water temperature- 140-280 degrees Speedometer Included No Tachometer Included No Oil Pressure Gauge Included Yes Oil Temperature Gauge Included No Water Pressure Gauge Included No Water Temperature Gauge Included Yes Fuel Pressure Gauge Included No Fuel Level Gauge Included No Vacuum Gauge Included No Volt Gauge Included No Ammeter Gauge Included No Boost/Pyrometer Gauge Included No Exhaust Pressure Gauge Included No Odometer Gauge Included No Overall Length 8.5" Overall Height 4.5" Material Thickness 0.06" Finish Anodized Includes Mounting Bracket(s) Yes Hardware Included Yes Material Type Aluminum Clock Included No Fuel Sender Included No Speed Sender Included No Oil Pressure Sender Included No Turn Signals Included No Lens Style Flat Shape Round Warning Lights Included Yes Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
