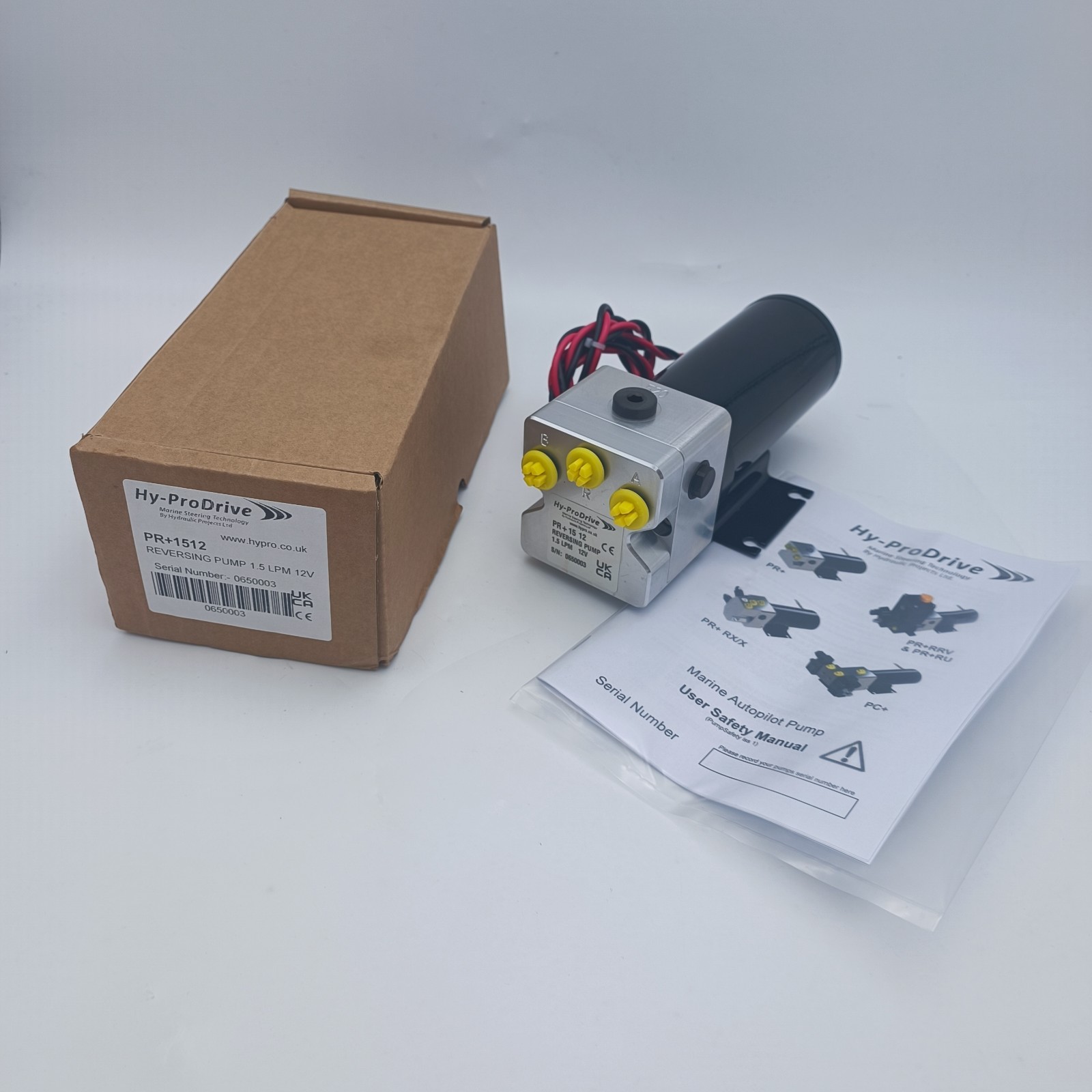

Autopilot Reversing DC Hydraulic Pump - NEW
Direct Replacement for:
Raymarine M81121 TYPE 2
Simrad RPU160
Furuno PUMPHRP17-12
MODEL: 12V, 1.5L,250-350 cm3
NOTICE TO THE BUYERS IN THE US:
- All duties and tariffs for US buyers are fully paid by us.
- We ship only via Express services (FedEx or UPS) to the USA.
- Fast, reliable, and hassle-free delivery – no extra charges upon arrival.
Shop with confidence knowing that your purchase will be quickly and without unexpected cost
Suitable for several different brands such as Raymarine (S1, S2, S3, S2G, S3G, X10, X20, X30, EV-150, EV-200 etc), Autohelm, Simrad, Garmin, B&G, Navico NAC1, Lowrance, COMNAV, Raytheon, Silva Marine, Robertson, Furuno, Nautech, Northstar, TMQ, etc.
Description:
A permanent magnet DC motor-driven precision gear pump is available with a range of flows from 0.6 to 2.5 L/min. Each pump is fitted with zero-leakage pilot check valves for positive locking of steering cylinders. The two service ports and reservoir port are positioned at the front of the pump. The threads are G1/4 (BSP) parallel. There is an optional second reservoir port on the top face accessed via a removable plug. If top-mounted ports are preferred a kit is available to provide this option. Relief valves to limit the maximum pressure generated are available as a further option. The motors are maintenance-free with internal brushes giving typically a 4000+ hour life. The front and rear bearings are sealed ball races for smooth and quiet operation. They have an Ingress Protection rating of IP67. They have a nominal output of 100W with a 50W option on the 12V PR+10 pumps. The pumps are sealed on the driven gear journal allowing the motor to be removed without air entering or oil loss from the hydraulic circuit.
Application:
Designed specifically for the marine autopilot market they are used by the world's leading autopilot manufacturers. They can be used with balanced or unbalanced cylinders and are suitable for use in pressurized reservoir systems.
Features:
Quiet and smooth operation
Low power consumption.
Zero back drive check valves.
6 flow options
100W motors
50W motor on PR+08
12 and 24V DC motor options.
Relief Valve option.
Port position options.
Compact.
Easy installation.
G1/4 (BSP) parallel ports
NPTF and M10 adapter kits are available
Service kits are available.
Cylinders and hose kits supplied to suit.
Fully compliant with the Recreational Craft Directive
Supplied with EU Declaration of Conformity
24 months of warranty
Similar to RAYMARINE TYPE 1 model.
