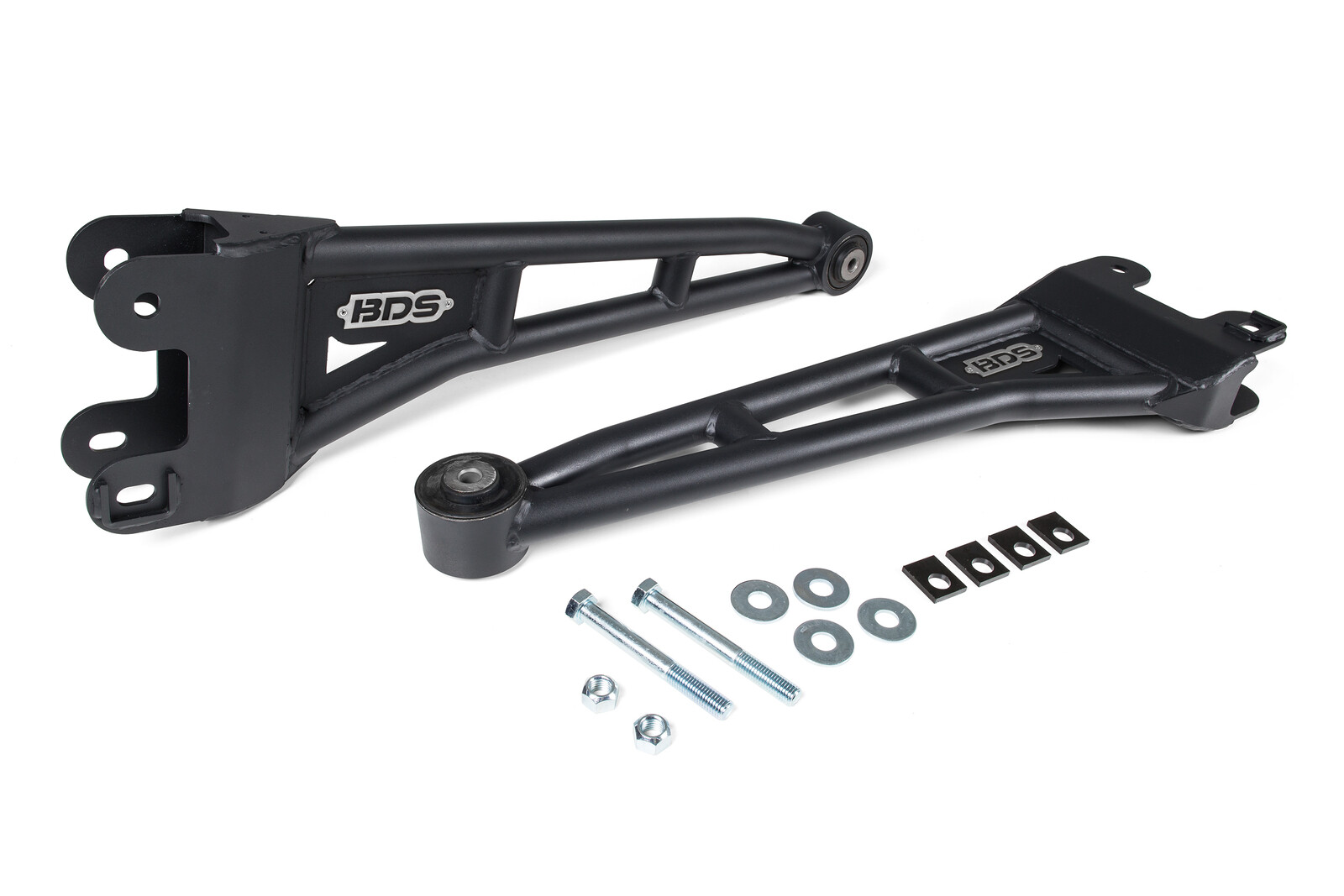

BDS Front Long Radius Arm 4 Link Upgrade Kit for F250 F350 Super Duty 2-4" Lift PART NUMBER: 123251
BRAND: BDS Suspension DESCRIPTION BDS 123251 Frt Radius Arm Upgrade Box Kit for F250 F350 Super Duty w/ 2-4" Lift PART NUMBER:123251
BRAND:BDS Suspension DESCRIPTION Radius Arm Upgrade Kit
The new Super Duty radius arms can be an upgrade for the Ford F250/F350 with 2-4" of front lift. They cannot be used with radius arm drop brackets at these heights. Therefore, if someone has a current BDS radius arm drop bracket kit, they will need to remove the drop bracket to install these arms.
For those with 6" of front lift, the radius arms can be installed with the drop brackets as a direct swap for the factory radius arms - only caution would be that the caster may need to be checked if ball joint cams are installed.
These new arms use the factory mounting hardware at the frame and a combo of factory and provided hardware with cam locks at the axle.
Tires and Wheels:
- Designed to work with:
35 x 12.50 x 17(18)(20) Tire
4-1/2" ~ 5" Backspace Wheel
Features:
- Engineered with high dimensional accuracy for the perfect fit
- Made from durable materials to survive the test of time
- Built to meet strict international quality standards
- High-end performance at an affordable price
Radius Arm Box Kit - DRV Part # Qty Description A261 2 Radius Arm Assembly - DRV Side 02799 1 Superduty Radius Arm 2"-4" 868190 1 Superduty Bushing 02802 2 BDS Badge 995 1 Rivet Bolt Pack B1114 1 Bag Kit 02421 4 Cam plate N18MPT 2 M18-2.5 Lock Nut 02002ZP 2 M18-2.5 x 150 Bolt W34SAE 4 3/4" SAE flat washer 099000 6 Zip Ties 099002 2 Push Pin Zip Ties VEHICLE COMPATIBILITY 2005-2022 Ford F-250 Super Duty 4WD 2"-4" Lift2005-2022 Ford F-350 Super Duty 4WD 2"-4" Lift
