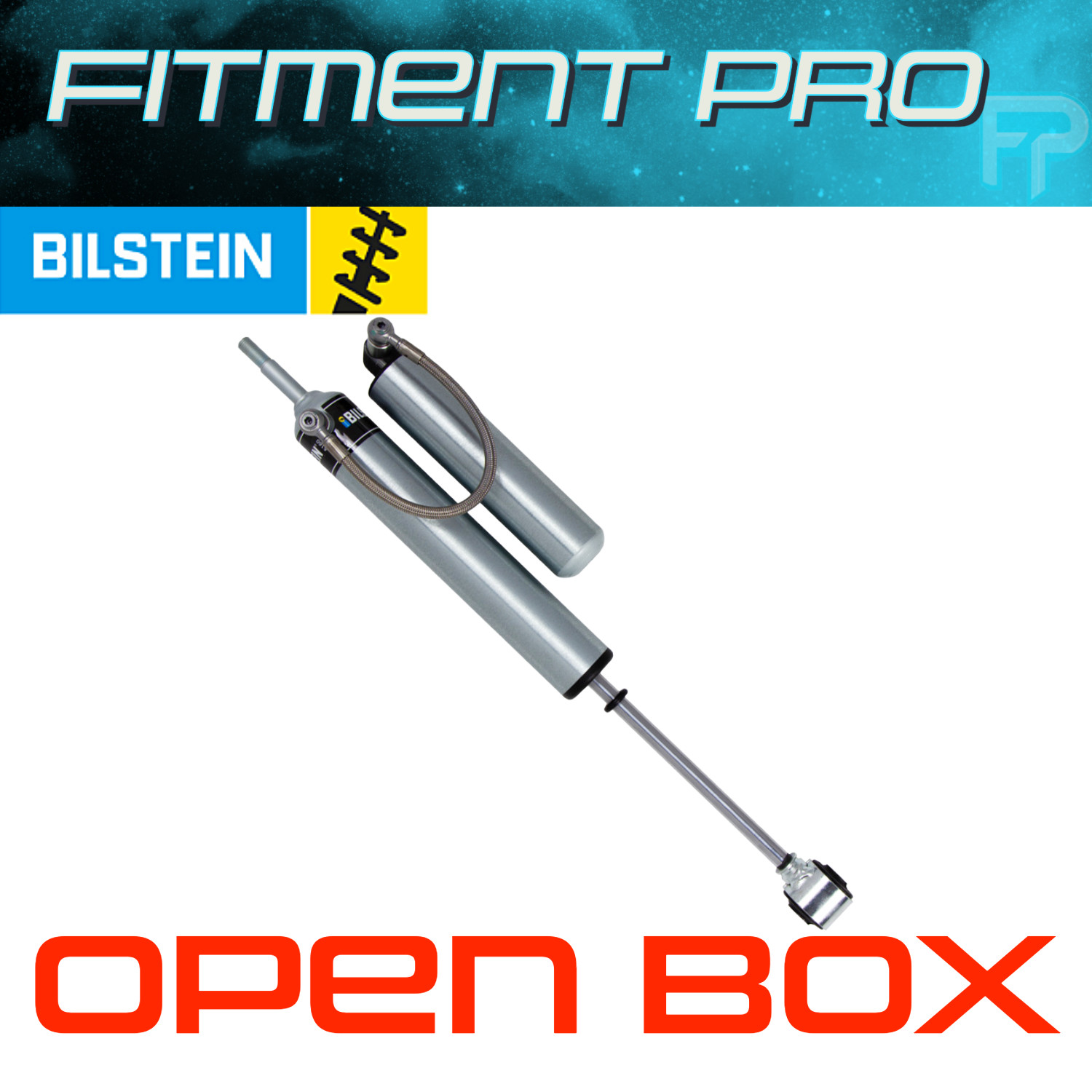

Bilstein B8 5160 Series Front Shock For 2 to 2.50-Inch Lift
Ford F-250 Super Duty 2005-2026Ford F-350 Super Duty 2005-2026
Part Number:25-311792Item Condition:Damaged in transit. Missing hardware. Comes with items pictured. Sold as-is. Thanks!
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Collapsed Length (in):13.17
Extended Length (in):21.01
Collapsed Length (mm):334.5
Extended Length (mm):533.7
Stroke/travel Length (in):7.84
Lower Mount Type:Eye 14.4mm
Upper Mount Type:Stem
Internal Design:Monotube
Finish:Zinc Plated
Reservoir:Yes
Body Design:Smooth Body (Non-Coilover)
Body Diameter (od):2.0 in.
Piston Diameter:46mm
Boot Included:No
Replacement Mounting Kit:B4-KT1-Z270A01
Spring Seat Included:No
Billet Reservoir Clamp Included:Yes
Shaft Diameter:14mm
Adjustable Damping:Non-Adjustable
Interchange Numbers
Bilstein 25-187779
Bilstein 25-274974
Bilstein BR5-H075
Bilstein F4-BR5-H075-H0
BQNV 25311792
FOX Offroad Shocks 985-24-121
ICON Vehicle Dynamics 66512R
