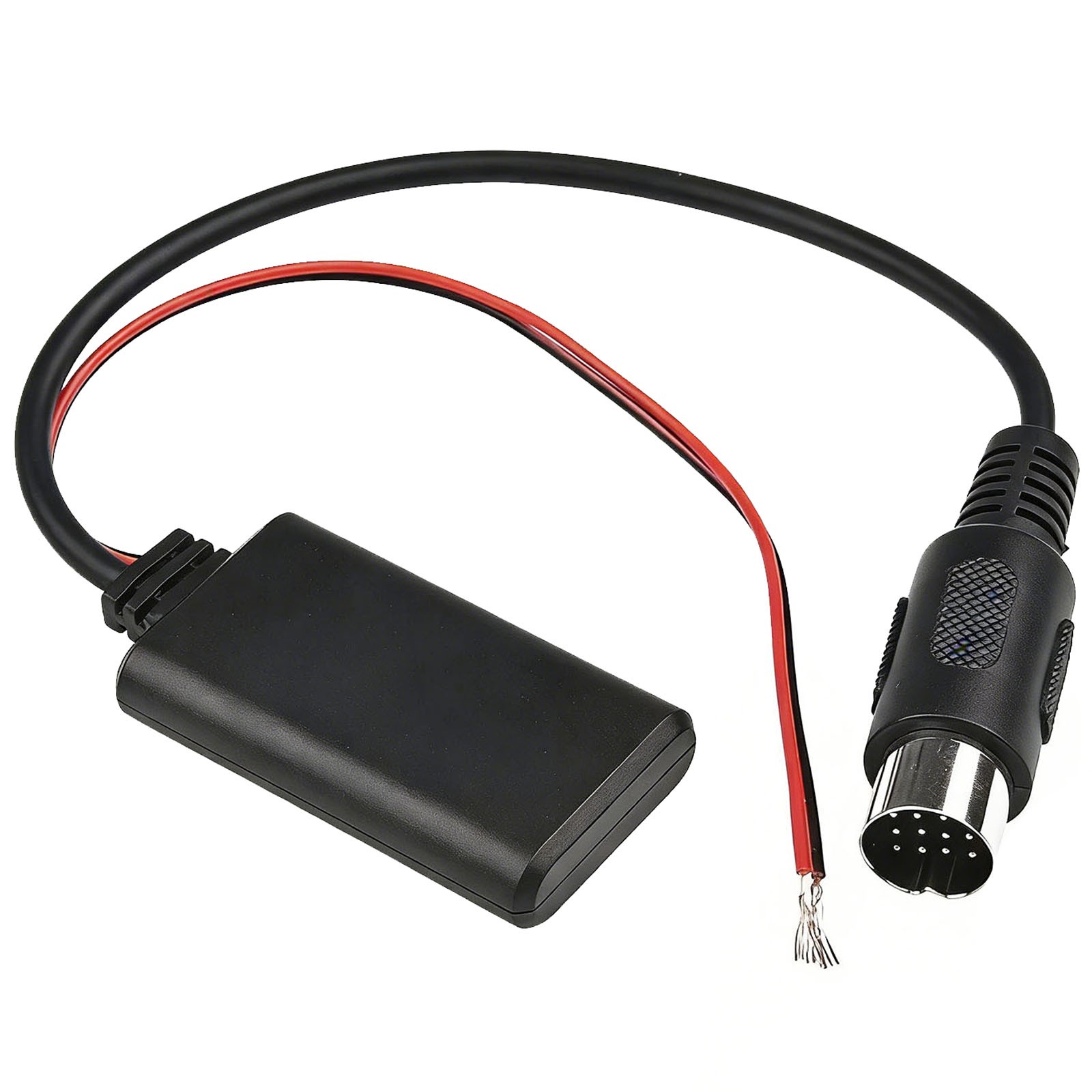

Bluetooth 5.0 Adapter Aux For ECLIPSE CD3000 CD3100 CD3200 CD4000 CD5000 AUX-105
Features:
Plug and Play
Wireless A2DP Playback: easily streaming music of Bluetooth devices into factory car stereo system
Adopt Bluetooth 5.0 protocol, compatible with 2.0 3.0 4.0 other versions of Bluetooth protocol
Support common MP3 format audio, and also support WMA, WAV, FLAC,
and other high-quality audio format decoding, non-general ordinary Bluetooth function
The data transmission speed between devices is stable and fidelity.
This item Work with iPod/iPad/iPhone 5 6 7 8 X 11 12 13,Samsung,HTC,Sony,Nokia and any other phones or pads(Pls make sure there is Bluetooth function in your phone or pad)
Cable length: approx 20cm
Note:Control remains on your phone and no text will appear on the radio. (change songs on your with eclipse NOTE:
(This example is for Eclipse unit cd3200. Results for different units may vary.)
Your eclipse unit should see this as a (AUX-105)
Use this accessory cable to connect a portable audio player to your Eclipse unit.
(AUX 1. The default setting for AUX is OFF.)
Turn on the portable audio player and start its play function.
The AUX mode is activated.While the AUX mode is activated, actions such as turning off the audio player or pulling out the connection cord may cause noise spikes that can damage the system speakers. Be sure to avoid this possibility by turning off system power or switching from the AUX mode to another mode before shutting off or disconnecting the portable audio player.
Audio output levels for the various devices that can be connected using this method will differ. Carefully adjust the volume until the output level of the connected player is known.
Before using a portable audio player in a vehicle, read the player\'s operation manual carefully and confirm problem-free operation in the vehicle before proceeding.
When you connect an optional LAN cable (AUX 105) to the main unit, other optional equipment that uses E-LAN cannot be connected.Switching the AUX mode on and off:
1.Press the [/MENU] button for more than one second.
The Menu selection mode is activated.
2.Press the [SELECT] (Up/Down) button to select FUNC, and then press the [ENTER] button.
The function mode is activated.
3.Press the [SELECT] (Up/Down) button to select AUX ON/OFF.
The AUX ON/OFF mode is activated.
4.Press the [SELECT] (Up/Down) button to select the ON/OFF mode.
Press the button to switch the mode as follows:
Up: Mode is ON Down: Mode is OFF The selected settings will take effect.Switching the input system:
When using an optional AUX cord (AUX105), the main unit can be switched between RCA input and optional AUX cord (AUX105) input.1.Press the [MODE] button for more than one second.The system will switch between RCA input and optional AUX cord input each time the button is pressed.RCA input (INPUT) ↔ Optional AUX cord (SUB INPUT)Changing auxiliary input sensitivity:
The sensitivity of the auxiliary mode can be changed.
1.Press the [/MENU] button for more than one second.
The Menu selection mode is activated.
2.Press the [SELECT] (Up/Down) button to select FUNC, and then press the [ENTER] button.
The function mode is activated.
3.Press the [SELECT] (Up/Down) button to select AUX Sens.
The AUX sensitivity mode is activated.
4.Press the [SELECT] (Up/Down) button to select the sensitivity mode.
Pressing the button allows you to toggle through sensitivity modes as follows:
Low ↔ Mid ↔ Hi ↔ Low ↔··· The selected settings will take effect
Package included:
1 X BLUETOOTH ADAPTER
