Borgeson

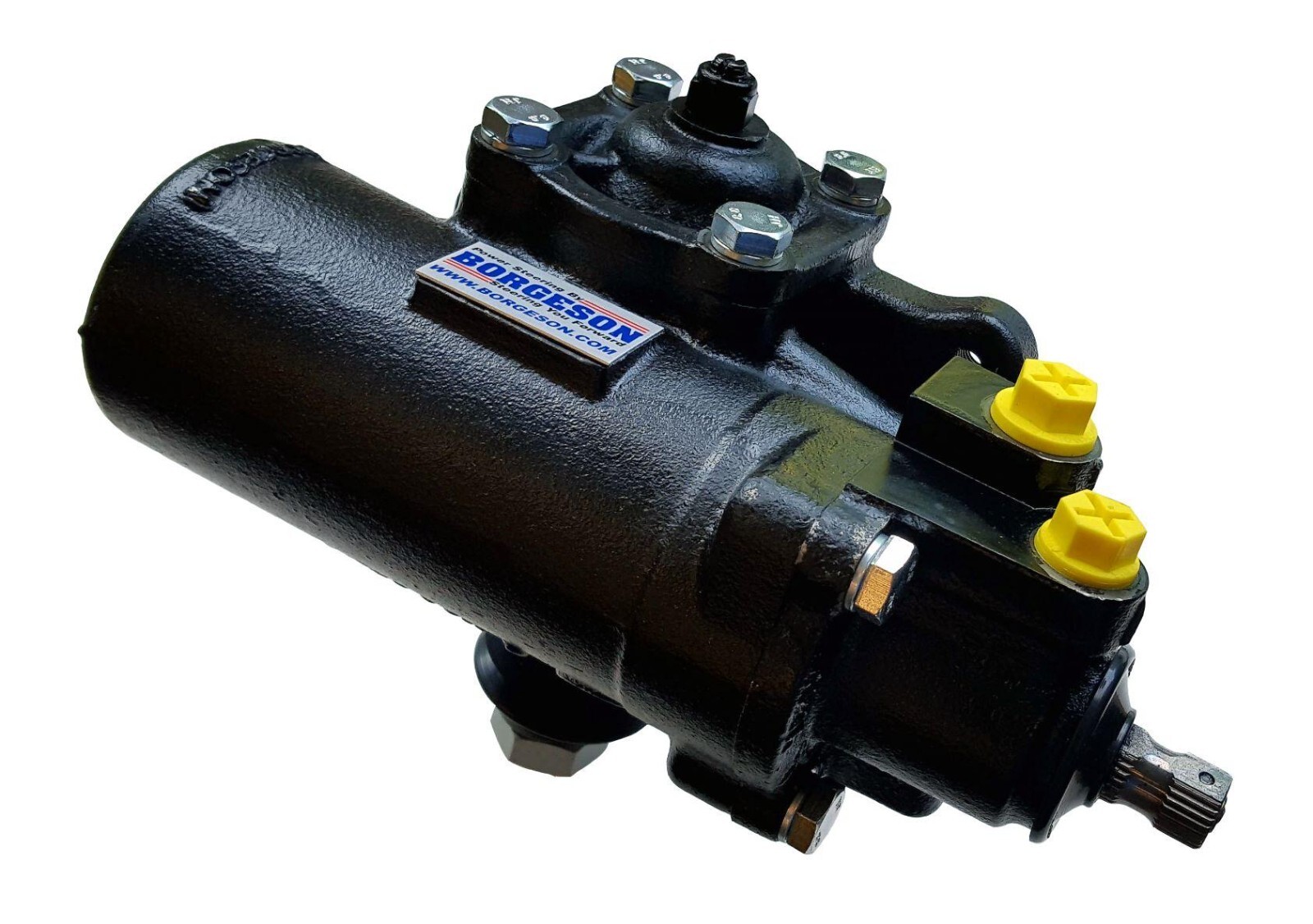

1968-1986 Chevy/GMC C-Series & 1987-1991 Chevy/GMC R-Series Street & Performance Series 12:7:1 Power Steering Box
Borgeson Street & Performance Quick Ratio Chevy C10 Power Steering Box. Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800 series in 68-86 Chevy C10 trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Trucks switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections. This new Borgeson steering box uses a ¾”-30 spline input shaft andall pre-1977 trucks will require a new rag joint connector #990012.All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty.WARRANTY
800132 SPECIFICATIONS:800132 Installation Drawing
Input Shaft: 3/4"-30 Spline
Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
Return Port:M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
