CC2370 34\" W Shroud Electric Fan+Relay Fit 1999-2014 Chevy Silverado 1500 2500 For Sale - New and Used

Note: Professional Installation would be highly recommend.

Package Include:

1 X AA5052Aluminum Shroud

2 X 14\" 90W Fans (Includes mounting kits)

1 X Thermostat Relay Kit

For Radiator Size:

(Notes: both side of the radiator has Oil cooler, and the core length is 34inches)

Interchange Part Number: CU2370, 2370, REA41-13029A, 22840116, 52486594, 52487603, 25811504, 15841570, 20935856, 15143107，15193107, 15193114, 15841569, 15841573, 15841574, 2632, 9590

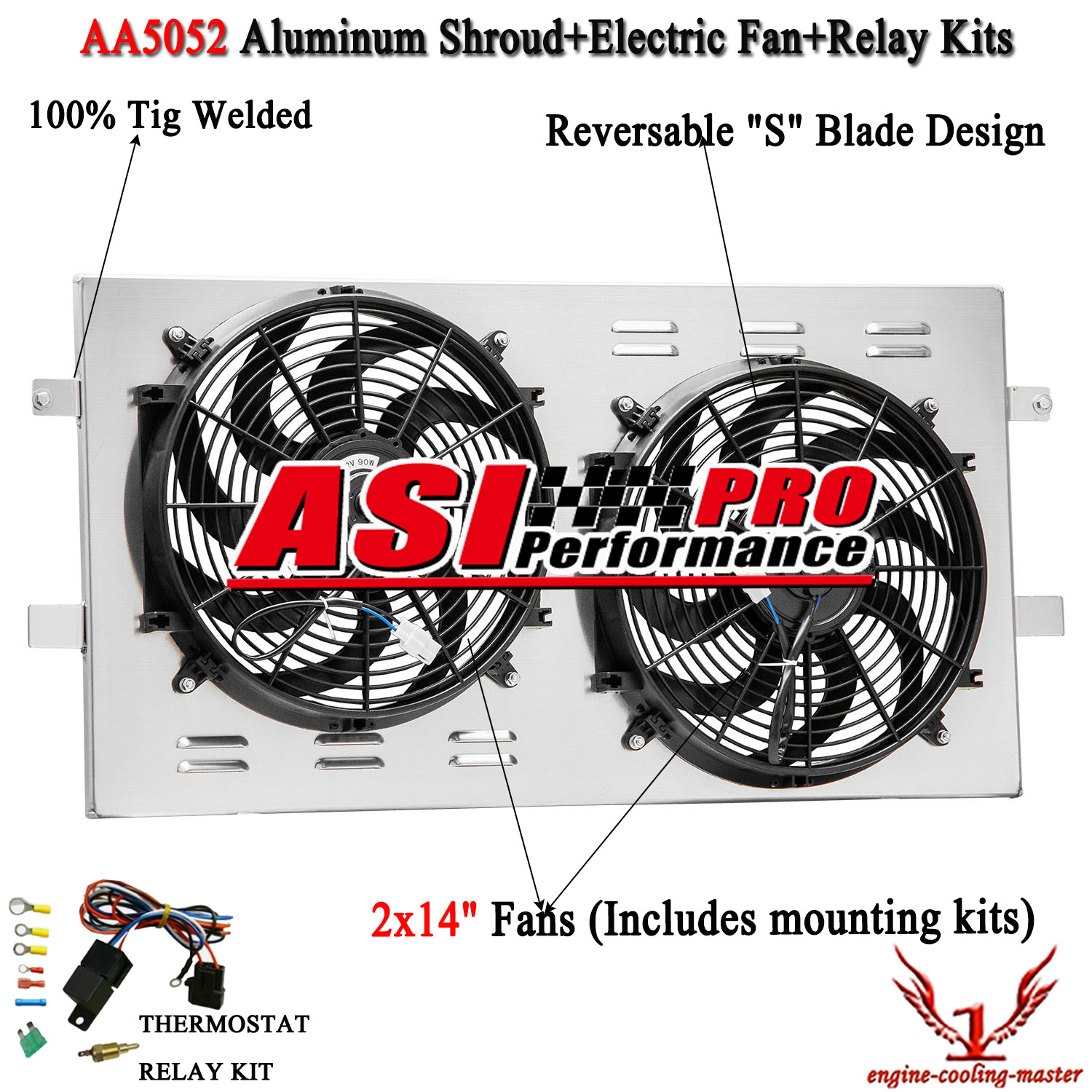

AA5052Aluminum Shroud and Fans:

The New Design fan and the AA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed.

Diameter : 14\'\' (Blade to Blade)
Voltage: DC 12 Volts
Wattage:90W
Number of Blades:8S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）:2250cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Fan Thickness:2.64\"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

For 2002 - 2014 Cadillac Escalade
For 2003 - 2014 Cadillac Escalade ESV
For 2002 - 2013 Cadillac Escalade EXT
For 2007 - 2013 Chevrolet Avalanche
For 2002 - 2006 Chevrolet Avalanche 1500
For 1999 - 2013 Chevrolet Silverado 1500
For 2007 Chevrolet Silverado 1500 Classic
For 2001 - 2006 Chevrolet Silverado 1500 HD
For 2007 Chevrolet Silverado 1500 HD Classic
For 1999 - 2004 Chevrolet Silverado 2500
For 2001 - 2010 Chevrolet Silverado 2500 HD 6.0L Only (Not for 6.6L or 8.1L)
For 2007 Chevrolet Silverado 2500 HD Classic 6.0L Only (Not for 6.6L or 8.1L)
For 2001 - 2006 Chevrolet Silverado 3500 6.0L Only (Not for 5.7L, 6.6L or 8.1L)
For 2007 Chevrolet Silverado 3500 Classic 6.0L Only (Not for 6.6L or 8.1L)
For 2007 - 2010 Chevrolet Silverado 3500 HD 6.0L Only (Not for 6.6L)
For 2000 - 2014 Chevrolet Suburban 1500
For 2000 - 2010 Chevrolet Suburban 2500 6.0L Only (Not for 8.1L)
For 2000 Chevrolet Tahoe 4.8L & 5.3L Only (Not for 5.7L)
For 2001 - 2014 Chevrolet Tahoe
For 1999 - 2013 GMC Sierra 1500
For 2007 GMC Sierra 1500 Classic
For 2001 - 2006 GMC Sierra 1500 HD
For 2007 GMC Sierra 1500 HD Classic
For 1999 - 2004 GMC Sierra 2500
For 2001 - 2010 GMC Sierra 2500 HD 6.0L Only (Not for 6.6L or 8.1L)
For 2007 GMC Sierra 2500 HD Classic 6.0L Only (Not for 6.6L or 8.1L)
For 2001 - 2006 GMC Sierra 3500 6.0L Only (Not for 6.6L or 8.1L)
For 2007 GMC Sierra 3500 Classic 6.0L Only (Not for 6.6L or 8.1L)
For 2007 - 2010 GMC Sierra 3500 HD 6.0L Only (Not for 6.6L)
For 2000 GMC Yukon 4.8L & 5.3L Only (Not for 5.7L)
For 2001 - 2014 GMC Yukon
For 2000 - 2014 GMC Yukon XL 1500
For 2000 - 2013 GMC Yukon XL 2500 6.0L Only (Not for 6.6L or 8.1L)
For 2003 - 2009 Hummer H2
