Dana 44 Cross OverSet Up for ALLCHEVY 10 BOLT. The Kit is comes with EWO Passenger Side Flat Top Knuckle
Knuckle is made in USA by EWO
Arms are made withDomestic Billet Blocksand Machined byAmerican Workersto ensure aLife Time Warranty. Arms are Whooping1.25”Thickwith4 HolesStyle to Suit Reid Knuckles, Solid Knuckles, Stock Knuckles or any other After Market Knuckles.
Tie Rod Ends are madeMetal to MetalwithSpring Technologyway beyond any Expectations.

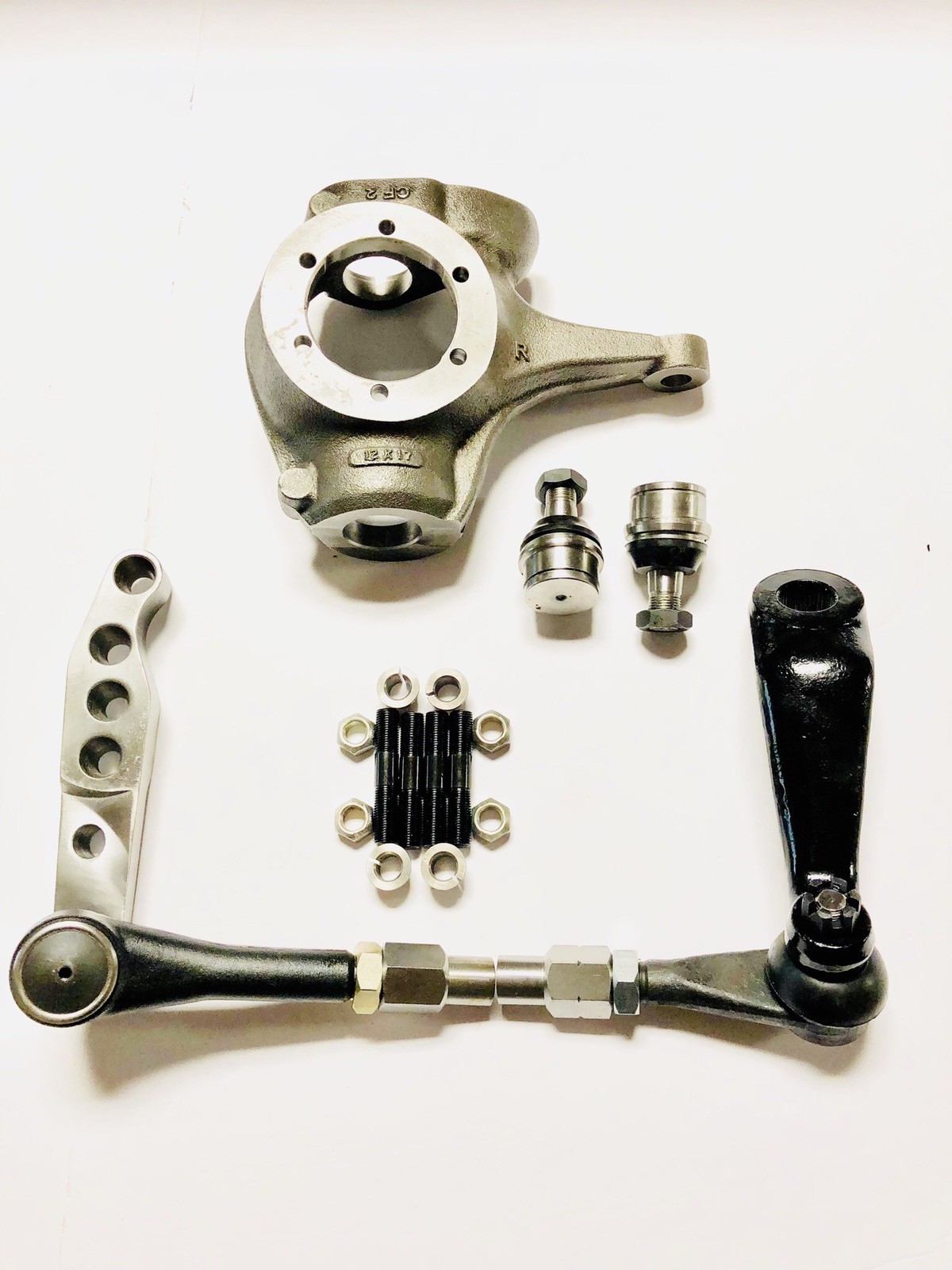

Kit Includes:
1 - Dana 44/ CHEVY 10 BOLT EWO Knuckle (Powder Coated) Machined with a “Bottom Up” taper (We will ship you a slit tapered insert in case you want to change the orientation)
1 – Passenger Side Arm (1.25” Thick) tapered for 7/8” Chevy ¾ Ton Tie Rods
1 – ES 2026 R Drag Link End with Grease Fitting, Castle Nut and Cotter Pin
1 – ES 2027 L Drag Link End with Grease Fitting, Castle Nut and Cotter Pin
4 – Chromoly 9/16” Studs
4 – Conical Washers
4 – Lock Nuts
1 - Metal on Metal Upper Ball Joint
1 - Metal on Metal Lower Ball Joint
1 – 7/8 – 18 Left Inserts/Tube Adapters/ Weld Bungs
1 – 7/8 – 18 Right Inserts/ Tube Adapters/ Weld Bungs
1 – 7/8 – 18 Left Jam Nuts
1 – 7/8 – 18 Right Jam Nuts
1 - 4\" Drop Forged Pitman Arm (32Splines) Fully Indexable
Please Note: Kit is WITHOUT DOMTubing, Buy Local and Save on Shipping
