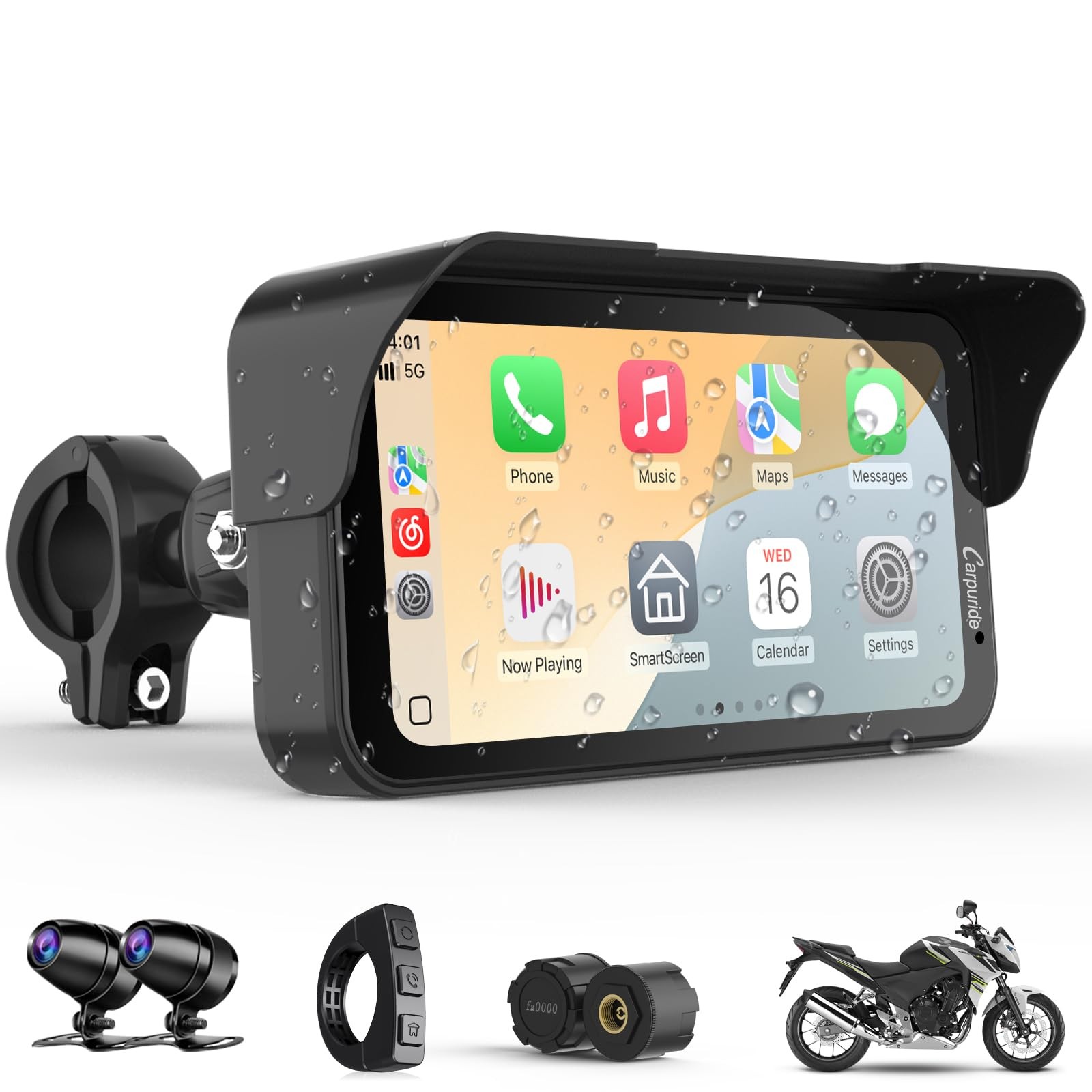

Carpuride W603D Moto TPMS 1080N DashCam Wireless CarPlay Screen WiredControllerCarpuride W603D Moto TPMS 1080N Dash Cam Wireless CarPlay Screen Wired ControllerCarpuride Dual-Camera Motorcycle Dashcam features a 6.3-inch HD waterproof touchscreen. Its front and rear 1080N 30fps 140° wide-angle cameras clearly capture riding conditions, while split-screen display allows simultaneous viewing of both perspectives. Includes a standard 64GB TF card with loop recording support—automatically overwrites older footage when storage is full, ensuring continuous, uninterrupted recording. Seamlessly connect with wireless CarPlay and Android Auto for instant access to navigation, music, and calls, delivering comprehensive safety and convenience during your ride.✨Easy TPMS Pairing · Automatic Vehicle Recognition
One-Click Compatibility Check: Verify system software version to ensure TPMS functionality is ready
Smart Vehicle Matching: Switch to corresponding vehicle mode for automatic system adaptation
Sensor Pairing: Bind sensors step-by-step based on tire count—simply enter pairing codes to complete
Customizable Alarms: Supports personalized alert thresholds with instant tire pressure warnings
Beginner-Friendly: Streamlined operation makes it easy to master even for first-time users⚠️Note: The 603D+TPMS package includes one set of TPMS accessories by default. If your motorcycle requires multiple TPMS units, please contact us before purchasing. We will customize a multi-wheel purchase plan for you.❓How to connect TPMS:
1. Open Settings and check the software version number in the system to see if it includes tire pressure monitoring.
2. Open the tire pressure monitoring interface, switch vehicle mode, bind all current sensors, and confirm. The number of confirmations depends on the number of wheels. For example, confirm 2 times for a 2-wheeled motorcycle and 4 times for a 4-wheeled motorcycle.
3. Enter the pairing codes for the two sensors to bind them.
4. Set the alarm value according to your needs.📱Wireless CarPlay and Android Auto for Motorcycles
Say goodbye to distractions and focus on the ride. Wirelessly connect your phone to the Carpuride W603DT via CarPlay or Android Auto to effortlessly control core functions like calls, navigation, and music playback on the screen. Supports Google Voice and Siri control, keeping hands free from the handlebars for safer, more relaxed riding.
⚠️Note: This device is not compatible with Huawei phones or devices running HarmonyOS.📹 Dual Front and Rear Dash Cam
Complete ride recording:
- Dual 1080N HD cameras: Front and rear recording at 30FPS
- 140° wide-angle view: Capture everything around you
- Split-screen DVR mode: View front and rear simultaneously
- Loop recording: 64GB TF card included - auto-deletes old footage when full
💡 Perfect for: Evidence collection, scenic ride memories, and safety documentation.🔄 Loop-Cycle Recording
With loop recording enabled, the system automatically deletes the oldest videos when the TF card is full, ensuring continuous safety documentation of your rides. Never worry about running out of storage space.🎧 Bluetooth Audio Connection
Simple 3-step setup:
Connect your phone to Bluetooth helmet or headset
Connect your phone to W603D via Bluetooth/WiFi
Enter CarPlay or Android Auto - audio plays through your helmet
⚠️ Note: Make sure your Bluetooth headset or helmet has a microphone for phone calls and voice control.🌀Rotatable Motorcycle Screen · Landscape or Portrait, Clearer Navigation
The Carpuride 603D supports free rotation between landscape and portrait modes to meet diverse usage scenarios. In portrait mode, navigation offers a wider field of view, providing a clear overview of road conditions ahead for more intuitive and precise riding guidance.
- One-Tap Rotation: Tap the “Screen Rotation” button. The device will automatically reboot and switch display orientation. The process takes approximately 5-8 seconds—please wait patiently.
- Camera Installation Tip: When mounting the camera, first align the lens direction with the screen display. If the image appears upside down, simply loosen the screws, rotate the camera to the correct orientation, and tighten the screws again.
Whether navigating city streets or embarking on long-distance journeys, the rotatable screen offers flexible viewing angles, making every ride more comfortable and confident.🎮 Handlebar Wired Controller
Included wired controller mounts to your handlebars for easy access:
- Cycle Button: Short press to switch between front/rear camera, long press to take photo
- Phone Button: Short press to answer/hang up calls, long press to reject call
- Home/Lock Button: Short press to return to main interface, long press (3 seconds) to lock screen
- Safe operation: Control without taking hands off handlebars
⚠️ Note: When using an Android phone, the cycle button does not support answering incoming calls. iPhone users can answer calls normally using the wired controller.☀️ Automatic Brightness Adjustment
Built-in light sensor automatically adjusts screen brightness based on ambient light. Ensures optimal visibility in bright sunlight and reduces glare at night. Safer riding in all lighting conditions.
🌧️ All-Weather Performance
IP67 Waterproof Rating - Fully protected against:
- Heavy rain and water spray
- Dust and dirt
- Extreme temperatures (-20°C to 60°C)
- Vibrations and shocks
Ride confidently in any weather condition. Your navigation and dash cam stay fully functional rain or shine.📱 6.3-Inch Ultra-Sensitive Touch IPS Screen
Premium display features:
- 1440×720 HD resolution: Crystal-clear visuals
- IPS full-view technology: Perfect viewing from any angle
- 2.5D curved screen: Smooth, refined touch experience
- 1000 nits brightness: Glare-free even in direct sunlight
- Capacitive touch: Responsive even with gloves
🌐GPS Navigation and Voice Assistant
Seamlessly integrates with your favorite map apps, including Apple Maps, Waze, Google Maps, HERE Maps, and Sygic, automatically downloading free map updates and real-time traffic information to keep you on the optimal route.
While riding, simply say “Hey Siri, call MOM” or “OK Google, take me home” to complete actions with voice commands. No need to distract yourself by touching the screen—stay focused on the road ahead, making every journey more convenient, intelligent, and worry-free.🏍️ Universal Compatibility
Works with virtually any motorcycle:
- Sport bikes, cruisers, adventure bikes
- Dirt bikes and dual-sport motorcycles
- Electric motorcycles and scooters
- Mountain bikes with motor assist
One-time installation, hassle-free setup. Perfect for riders seeking reliable motorcycle GPS and entertainment systems.⚙️ Technical Specifications
Display: 6.3-inch IPS touchscreen, 2.5D curved glass, 1440×720 resolution, 1000 nits brightness (sunlight readable), 90° rotatable (landscape/portrait)
Connectivity: Wireless CarPlay, Android Auto, Bluetooth 5.0
Dash Cam: Dual 1080N HD cameras (front and rear), 140° wide-angle view, 30FPS recording, split-screen DVR mode
Mounting: Universal ring bracket (fits most motorcycle handlebars, 360° rotation adjustment)
Waterproof: IP67 rated (submersible up to 1 meter for 30 minutes, dust-tight)
Audio: Bluetooth connectivity for helmet/headset integration
Storage: 64GB TF card included for dash cam loop recording
Power: 6.5V-30V DC (direct battery connection, 6.5V-12V/2A; over 12V/1.5A) or USB-A port (5V, 3A minimum)
Control: Handlebar wired controller included (single click to switch screens/cameras, long press for calls/photo capture)
Temperature Range: Operating: -20°C to 60°C (-4°F to 140°F)
Smart Features: Auto brightness adjustment with light sensor, voice control (Siri/Google Assistant)
Updates: TF card firmware updates
✨Special Features: 90° screen rotation, dual dash cam, wired controller, auto brightness, loop recording🔧 Wiring Installation Guide
Two power options:
Power Cable: Direct connection to motorcycle battery (6.5V-30V supported)
USB Cable: Connect to USB port (requires 5V, 3A minimum)
All ports (power, two cameras, wired controller) connect via color-coded cables. Follow the diagram for easy installation.
⚠️ BMW Compatibility: Due to different wiring configurations, this product cannot be used with BMW brackets. For BMW motorcycles, please choose our BS model instead.🔧 Ring Bracket Installation
1. Attach the mount to handlebar with a phillips screwdriver
2. Clamp the connecting rod to the mount
3. Insert device and adjust position as desired, Tighten adjustment ring to secure （the joint ball is 360° Adjustable）
4. Installation is complete⚠️ Important Phone Compatibility Notice
❌ NOT Compatible with HarmonyOS :
All phones running Huawei HarmonyOS are NOT supported.
❌ Also have Compatible Issues with :
Samsung: Galaxy Note 20, S20, Galaxy A20
Huawei (EMUI versions): P series, Mate series
Xiaomi: 12 Pro, 11 Lite, Redmi 9
Oppo: Reno 2 series
🔍 How to Check Your Phone:
Huawei users: Go to Settings → About Phone → Version. If it shows "HarmonyOS" , it is NOT compatible.
Other brands: Check if your phone model is listed above.❓Not sure? Email us with your phone model before ordering.📦 What's In The Box
- 1x Carpuride 603D main unit
- 2x Front and Rear cameras
- 1x Wired controller
- 1x Power cable (battery connection)
- 1x USB-A cable
- 1x ring bracket with sillicone gasket
- 1x 64GB TF ccard
- 1x Sunshade
- Installation hardware (screws, clamps)
- User manual
✅Your Purchase is Protected
30-Day Money-Back Guarantee - Not satisfied? Full refund, no questions asked
1-Year Warranty - Free repairs or replacement for manufacturing defects
Free Worldwide Shipping - With tracking number
24/7 Support - Email us anytime
Lifetime Software Updates - Free TF card firmware updates
❓Frequently Asked Questions
Q1: Can the 603D navigate and record simultaneously? Will it affect performance?
- Yes, the 603D can handle navigation and video recording at the same time without affecting performance. However, please note that navigation and camera feeds cannot be displayed in split-screen mode simultaneously - you'll need to switch between screens. The system is optimized to process both tasks smoothly in the background.
Q2: How is the camera recording quality at night or in tunnels?
- The 603D's front and rear cameras perform best in well-lit conditions. Recording quality will decrease in low-light or nighttime environments, but basic footage can still be captured. We recommend turning on your vehicle's headlights during night rides for better recording results. The cameras are designed for ride documentation and do not have professional night vision capabilities.
Q3: Will the screen shake or fall off during high-speed riding?
- The 603D's universal ring mount is designed for motorcycle high-speed riding scenarios and has been tested for vibration resistance. When properly installed, the screen will not shake or fall off at normal riding speeds (including highway speeds). We recommend regularly checking that the mount screws are tight and performing inspections before long rides.
Q4: Can I use my phone's hotspot for the 603D? Does navigation require data?
- Once the 603D connects to your phone via CarPlay/Android Auto, it will use your phone's network connection for navigation and online features without needing a separate hotspot connection. Navigation apps (like Google Maps, Apple Maps) will consume your phone's data. We recommend downloading offline maps in advance to save data. The device does not support SIM cards or independent WiFi connectivity.
Q5: Can I view recorded videos directly on my phone? How do I export them?
- Yes! You can view recorded videos directly on your phone. Simply tap the "WiFi video" icon on the device's home screen, scan the QR code that appears, and install the corresponding app following the instructions. Once installed, connect your phone to the device via WiFi, and you'll be able to view and manage all recorded video files directly in the app. Alternatively, you can also remove the TF card and use a card reader to transfer files.
Q6: Will cold winter temperatures or hot summer sun exposure affect the device?
- The 603D operates within a temperature range of -20°C to 60°C, handling most seasonal and climate conditions. However, prolonged sun exposure may cause screen overheating and affect touch sensitivity. We recommend parking in shaded areas when possible or using a sunshade cover. In extremely cold environments, the device may take slightly longer to boot up, which is normal behavior.
