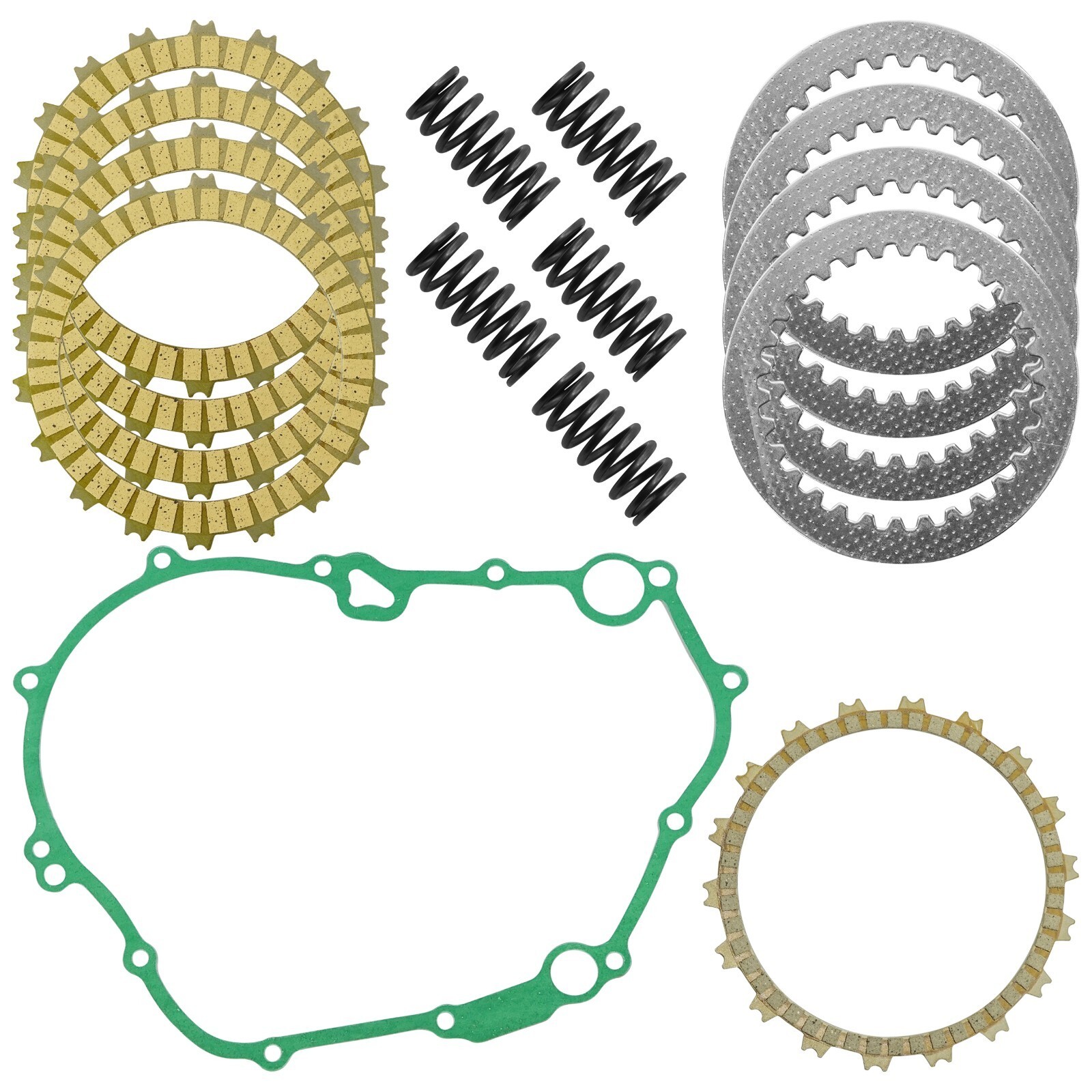

Tap here to read more about Clutch Friction w/ Steel Plates Springs Gasket Kit for Honda CRF250L 2013 - 2020
Premium Quality Replacement PartClutch Friction with Steel Plates and Springs Gasket Kit
ForHonda Models:
CRF250L 2013-2020
CRF250LA 2017-2020
CRF250RL 2017-2020
CRF250RLA 2017-2020
Order Includes:
4 x Clutch Friction class="MsoNormal" align="center" style="margin-bottom: 0in; margin-top: 0in; text-align: center; line-height: 115%; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">
Inner Diameter : 100.8 mm | 3.97"
Outer Diameter : 124.8 mm | 4.91"
Thickness: 2.33 mm | 0.09"
18 Teeth
Kevlaris a high durability material more resistant to hard use.
1 x Clutch Friction PlateKevlar:22202-KZZ-901
Inner Diameter : 111.15 mm | 4.37"
Outer Diameter : 125.3 mm | 4.93"
Thickness: 2.45 mm | 0.09"
18 Teeth
4 x Clutch Steel Plate :22321-KYJ-902 22322-KZZ-901
Inner Diameter : 100.8 mm | 3.96"
Outer Diameter : 125.5 mm | 4.94"
Thickness: 1.4 mm | 0.055"
30 Teeth
5 x Clutch Spring :22401-KYJ-902
Length: 41.84 mm | 1.64"
Width: 18.98 mm | 0.74"
Item Thickness: 2.38 mm | 0.09"
1 x Clutch Cover Gasket :11394-K87-A30 11394-KYJ-900
