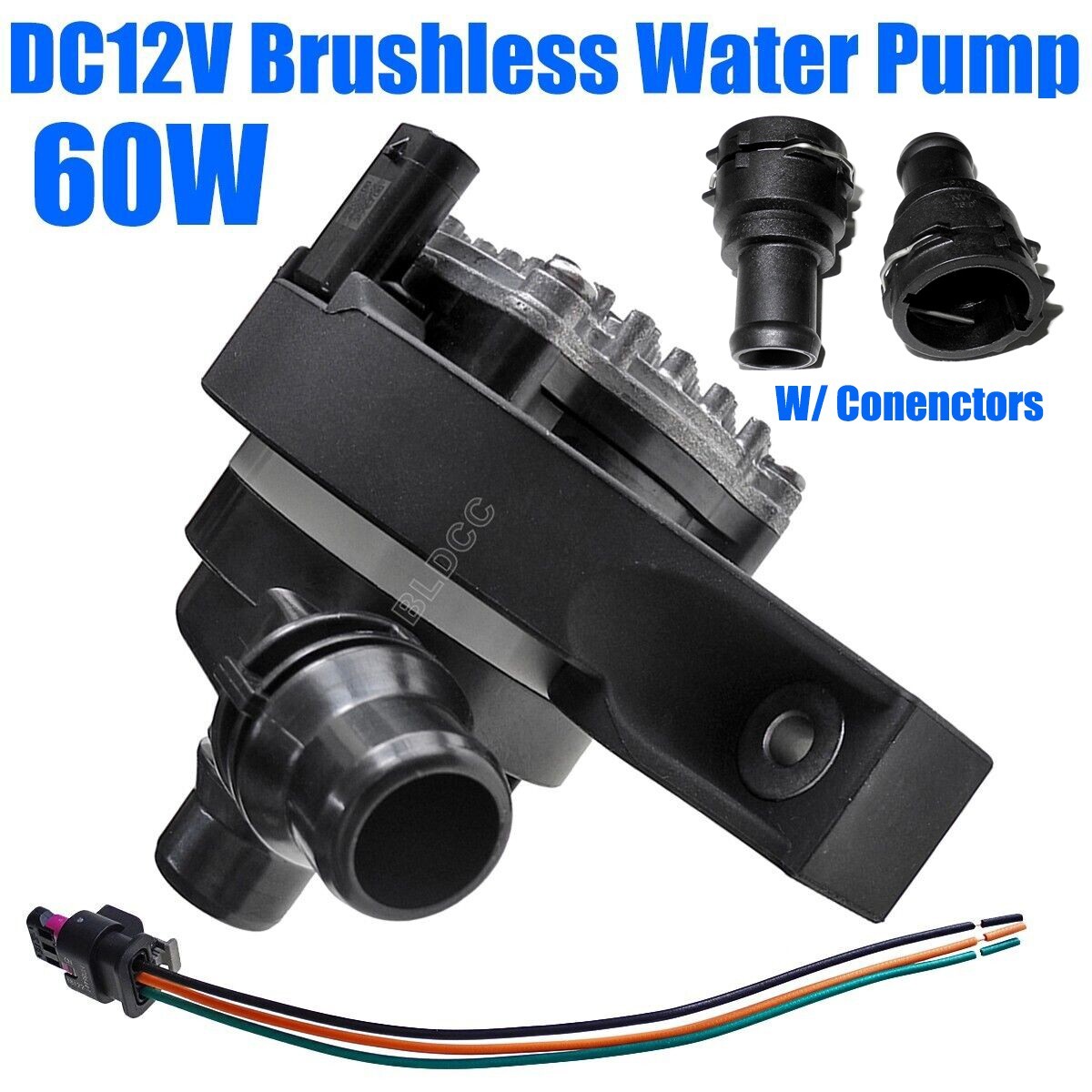

DC12V 60W Intercooler Coolant Engine Water Pump Brushless Motor Circulating Pump
Here for sale is DC12V 60W brushless water pump, we will send 2PCS connectors and 1PCS connecting wire together with the pump.
Buyers pls pay attention that the pump must work with enough water. Do not test the pump without water, or it will detect the lack of water and stop working!
The pump can work normally without PWM signal, if you donot need PWM speed control, just connect the positive and negative pole to the power and the pump will work with full speed. if you need PWM speed control, just add a PWM speed controller.This listing does not contain a PWM speed controller,buyers who need the PWM speed controller Pls Click Here.This versatile water pump is designed specifically for electric vehicle cooling systems, ensuring excellent quality and reliability. The pumpis equipped with rubber damping brackets for easy installation and fixation.Its exceptional design allows for operation in extreme environments, ranging from minus 40 degrees Celsius to plus 120 degrees Celsius, ensuring lasting and stable performance. Utilizing a brushless DC motor and controlled through PWM, it effortlessly adjusts its speed, showcasing remarkable efficiency, low noise, and high flow rates. Its unique physical isolation design ensures that the pump rotor, motor stator, and drive circuit are separated from the water, ensuring safety and dependability.With outstanding waterproof performance, it can also be used as a submersible pump, making it suitable for a wide range of applications, including automotive cooling systems, lithium battery cooling systems, server water cooling systems, hydroponics water circulation, fish tank water circulation, garden irrigation, RV water supply, solar water pumps, and much more.
The water pump has quick-connect ports for both the inlet and outlet, which can be connected to fittings from the (Norma-PS3-NW16) series.
If PWM Speed Control *is* Used
If there is no PWM signal within 2 seconds of power-on, the default mode of full speed operation will be used.
If there is a valid PWM signal, a speed-proportional response to a commanded 15-90% duty cycle will be delivered.
+12V PWM controlled,
Recommended PWM frequency: 50Hz to 200Hz (nominal = 100Hz)
Recommended PWM Duty range: 15 - 90%
The water pump operates at its minimum speed when the PWM duty cycle is 15%, and it reaches its maximum speed when the PWM duty cycle is greater than 90%.We also provide the PWM Signal Generator which is fitting for the pump,buyers who need the PWM Signal Generator Pls Click Here for more details.Attention:
*The water pump is driven by a brushless DC motor. Ensure that the positive and negative poles are not reversed, and the operating voltage range is DC8.5V to 16V.
*The maximum power of the water pump is 60 watts. Use a power supply with a capacity greater than 60W; otherwise, the pump may not function properly.
*The water pump needs to have water for testing; otherwise, it will detect the lack of water and stop working. Testing the water pump without water will cause it to start and stop multiple times, eventually leading to a protective shutdown.
*The water pump is not self-priming, so the water inlet should be below the water level, or the entire pump can be submerged in water (the pump is waterproof and can be used as a submersible pump).
Packaging Included:
* 1PCS DC 12V 60W Brushless Pump.
* 2PCS Connectors.
* 1PCS Connecting Wire.
